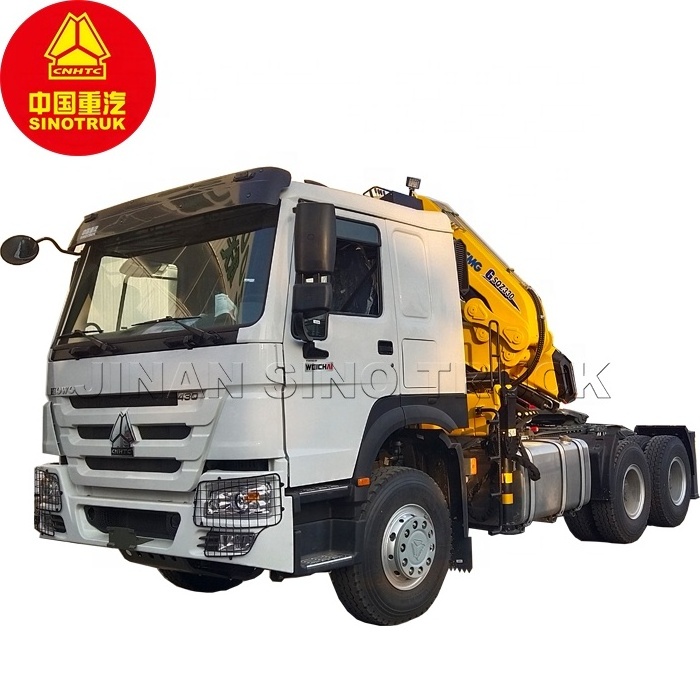

Quick Details
-
Application:
-
tractor truck
-
Rated Lifting Moment:
-
28TM
-
Span:
-
15m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HOWO
-
Weight (KG):
-
15000 kg
-
Crane type:
-
Telescopic / Knuckle Boom Crane
-
Color:
-
Customer Request
-
Engine:
-
Diesel Engine, 12L Dispalcement, WP12.430
-
Driving type:
-
RHD/ LHD
-
Max. traveling speed:
-
102km/h
-
Front Axle:
-
VGD95. 1*9500KG
-
Rear Axle:
-
HC16/MCX16ZG/MCP16ZG. 2*16000KG
-
Tramsission:
-
HW19710, 10F & 2R
-
Tire:
-
12.00R20 Steel Wire Tire, 10+1 Spare
-
Dimension:
-
6985x2496x3850mm
Quick Details
-
Rated Loading Capacity:
-
25000kg
-
Max. Lifting Height:
-
7.5m
-
Engine Brand:
-
SINOTRUK
-
Application:
-
tractor truck
-
Rated Lifting Moment:
-
28TM
-
Span:
-
15m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HOWO
-
Weight (KG):
-
15000 kg
-
Crane type:
-
Telescopic / Knuckle Boom Crane
-
Color:
-
Customer Request
-
Engine:
-
Diesel Engine, 12L Dispalcement, WP12.430
-
Driving type:
-
RHD/ LHD
-
Max. traveling speed:
-
102km/h
-
Front Axle:
-
VGD95. 1*9500KG
-
Rear Axle:
-
HC16/MCX16ZG/MCP16ZG. 2*16000KG
-
Tramsission:
-
HW19710, 10F & 2R
-
Tire:
-
12.00R20 Steel Wire Tire, 10+1 Spare
-
Dimension:
-
6985x2496x3850mm
Product Description
1. More efficient
Multiple hydraulic cylinders form a jointed boom connection mechanism
So It's faster to get work done
2. Can be installed a variety of AIDS
high-altitude work platform,work bucket, fixture, hanging basket, plate fork, all kinds of high grip, auger, tire loading manipulator and pile extractor and other auxiliary equipment
3. Narrow working environment
More suitable for the factory warehouse & other relatively narrow working environment
Multiple hydraulic cylinders form a jointed boom connection mechanism
So It's faster to get work done
2. Can be installed a variety of AIDS
high-altitude work platform,work bucket, fixture, hanging basket, plate fork, all kinds of high grip, auger, tire loading manipulator and pile extractor and other auxiliary equipment
3. Narrow working environment
More suitable for the factory warehouse & other relatively narrow working environment
|
VEHICLE SPECIFICATION
|
DESCRIPTION
|
|
|
Truck Model
|
ZZ4257V3847B1
|
|
|
Type of Vehicle
|
TRACTOR TRUCK
|
|
|
Truck Type
|
6x4
|
|
|
Driving Position
|
Left Hand Driving
|
|
|
Fuel tanker capacity（L）
|
400L
|
|
|
The Total Mass
|
50,000kg
|
|
|
Max speed（km/h）
|
102
|
|
|
Color
|
Optional
|
|
|
Chassis & Add Components
|
|
|
|
Frame Details
|
High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sub framed, all cold riveted cross members.
|
|
|
Dimension(L x W x H)（unloaded）（mm）
|
7600*2560*3950
|
|
|
Wheel base (mm)
|
3800+1400
|
|
|
Engine
|
|
|
|
Model
|
WP12.430
WEICHAI ENGINE |
|
|
Power
|
430HP
|
|
|
Emission
|
EURO II
|
|
|
Displacement(L)
|
12L
|
|
|
Type
|
water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
|
Kind of Fuel
|
Diesel
|
|
|
Clutch & Gear Box System
|
|
|
|
Clutch
|
SINOTRUKΦ430mm diaphragm spring clutch
|
|
|
Gear Box
|
HW19712+HW70
12 forwards and 2 reverse |
|
|
Axles
|
|
|
|
Front Axle Model
|
VGD95 axle
Loading Capacity: 1*9500KG |
|
|
Rear Axle
|
HC16 axle
Loading Capacity: 2*16000KG |
|
|
Electrical System
|
|
|
|
Battery
|
2X12V/165Ah
|
|
|
Alternator
|
28V-1500w
|
|
|
Starter
|
7.5Kw/24V
|
|
|
Brake System
|
|
|
|
Service brake
|
Dual circuit compressed air brake
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
|
Auxiliary brake
|
Engine exhaust brake
|
|
|
Steering system
|
|
|
|
Model
|
Standard
|
|
|
Type
|
hydraulic steering with power assistance
|
|
|
Wheels & Tyre
|
|
|
|
Type
|
12.00R20 Steel wire tire
|
|
|
Brand
|
Standard Brand
|
|
|
Quantity
|
10+1 spare
|
|
|
Kin pin
|
50mm/90mm
|
|
|
Cabin
|
|
|
|
Type
|
HW76 Standard cabin
|
|
|
Single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper
system with three speeds, laminated windscreen with castled-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbs |
|
|
|
Special Request
|
1. Double Warning Light
2. Backup buzzer 3. High Steel Bumper 4. Engine protect 5. Wind deflector |
|
|
Crane Specification
|
|
|
|
Crane Model
|
SQZ330A
|
|
|
Max.lifting moment
|
333kn.m
|
|
|
Max.lifting capacity
|
16500KG
|
|
|
Max.hydraulic outreach
|
16370mm
|
|
|
Rangeability
|
0~75 Degree
|
|
|
Rotation Range
|
400
|
|
|
Stabilizer spread
|
5750mm
|
|
|
Rated flow rate
|
63L/min
|
|
|
Rated working pressure
|
31Mpa
|
|
|
Recommended Power
|
37KW
|
|
|
Hydraulic oil temperature range
|
-25~40 degree
|
|
|
Hydraulic oil tank
|
200L
|
|
|
Dead Weight
|
4945KG
|
|
|
Crane Type
|
Knuckle
|
|
|
Crane Option As Below：
|
|
|
|
|
1. Fixed Rear Support Leg +900$
|
|
|
|
2. Extendable Rear Support Leg +1500$
3. Operator Chair +300$ |
|
CRANE OPTION PICTURES AS BELOW
1.High Position Operator Seat
2. Fixed Rear Support Leg
3. Extendable Rear Support Leg
Production
Warehouse
Details Show
Headlight structure
Crystal lamp shell & Strong brightness & Strong penetration & High life
Full control of the driving environment
Rearview mirror +Road mirror + Down view mirror
The Widest large curved windshield in China
Wide view ,no blind spots, more secure
Crystal lamp shell & Strong brightness & Strong penetration & High life
Full control of the driving environment
Rearview mirror +Road mirror + Down view mirror
The Widest large curved windshield in China
Wide view ,no blind spots, more secure
Big door opening angle :90 degree
2 side handles
2 stainless steel non-slip feet
More safer More convenient & More humanized when getting on & off the truck
2 side handles
2 stainless steel non-slip feet
More safer More convenient & More humanized when getting on & off the truck
Widest cab in China:more than 2.5meters
Coefficient of insurance increased greatly: Double buckle of driver seat belt
Reduce driving fatigue : 4 point full-floating air suspension ,Domestic original stabilizing device
Adjustable steering wheel
Coefficient of insurance increased greatly: Double buckle of driver seat belt
Reduce driving fatigue : 4 point full-floating air suspension ,Domestic original stabilizing device
Adjustable steering wheel
Under what circumstances is a truck crane needed?
1. Leasing
2. engineering construction
3. transportation & logistics industry
4. oil & coal industry
5. urban landscaping
What can the crane do for you?
1. To Transfer & hoisting goods
2. To save the cost
3. To liberate of labor force
4. To Speed up work efficienc y
1. Leasing
2. engineering construction
3. transportation & logistics industry
4. oil & coal industry
5. urban landscaping
What can the crane do for you?
1. To Transfer & hoisting goods
2. To save the cost
3. To liberate of labor force
4. To Speed up work efficienc y
Shipping
Transport bulk cargo shipment
Transport roro shipment
Transport 40HQ frame shipment
Packaging Details:
All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
