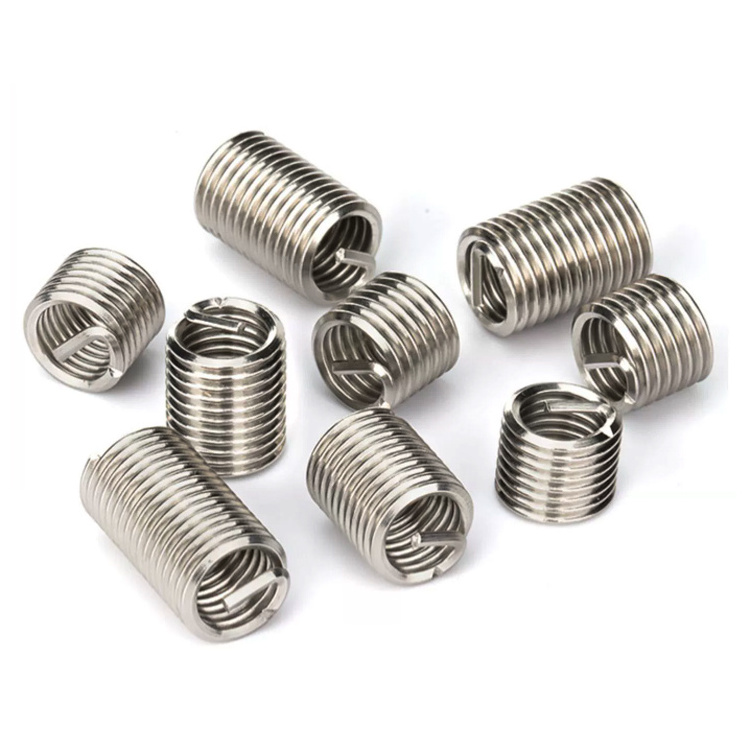

Product name:: Wire Thread Helical Insert

Material:: Stainless Steel

Delivery time:: 5-15 Days

Products Description

Thread Size			Installed length			Outside diameter d1			For Maximum Hole Diameter
d	P	Nominal	L	min	max	d2	L1
M2	0.4	1d	2	2.5	2.7	2.1	4.3
							1.5d	3		5.3
							2d	4		6.3
							2.5d	5		7.3
M2.5	0.45	1d	2.5	3.3	3.5	2.6	5.1
							1.5d	3.75		6.35
							2d	5		7.6
							2.5d	6.25		8.85
M3	0.5	1d	3	3.8	4	3.2	5.8
							1.5d	4.5		7.3
							2d	6		8.8
							2.5d	7.5		10.3
M3.5	0.6	1d	3.5	4.55	4.75	3.7	6.9
							1.5d	5.25		8.65
							2d	7		10.4
							2.5d	8.75		12.15
M4	0.7	1d	4	5.05	4.25	4.2	7.8
							1.5d	6		9.8
							2d	8		11.8
							2.5d	10		13.8
M5	0.8	1d	5	6.35	6.6	5.2	9.2
							1.5d	7.5		11.7
							2d	10		14.2
							2.5d	12.5		16.7

Thread Size			Installed length			Outside diameter d1			For Maximum Hole Diameter
d	P	Nominal	L	min	max	d2	L1
M6	1	1d	6	7.6	7.85	6.3	11.1
							1.5d	9		14.1
							2d	12		17.1
							2.5d	15		20.1
M8	1.5	1d	8	9.85	10.1	8.4	14.2
							1.5d	12		18.2
							2d	16		22.2
							2.5d	20		26.2
M10	1.5	1d	10	12.1	12.5	10.5	17.3
							1.5d	15		22.3
							2d	20		27.3
							2.5d	25		32.3
M12	1.75	1d	12	14.4	14.8	12.5	20.3
							1.5d	18		26.3
							2d	24		32.3
							2.5d	30		38.3
M14	2	1d	14	16.8	17.2	14.5	23.3
							1.5d	21		30.3
							2d	28		37.3
							2.5d	35		44.3
M16	2	1d	16	19	19.4	16.5	25.3
							1.5d	24		33.3
							2d	32		41.3
							2.5d	40		49.3

Thread Size			Installed length			Outside diameter d1			For Maximum Hole Diameter
d	P	Nominal	L	min	max	d2	L1
M18	2.5	1d	18	21.5	22	18.75	29.2
							1.5d	27		38.2
							2d	36		47.2
							2.5d	45		56.2
M20	2.5	1d	20	23.7	24.2	20.75	31.2
							1.5d	30		41.2
							2d	40		51.2
M22	2.5	1d	22	26.3	26.8	22.75	33.2
							1.5d	33		44.2
							2d	44		55.2
M24	3	1d	24	28.6	29.1	24.75	37.1
							1.5d	36		49.1
							2d	48		61.1
M27	3	1d	27	32.2	32.7	27.75	40.1
							1.5d	40.5		53.6
							2d	54		67.1
M30	3.5	1d	30	35.2	35.7	31	45.2
							1.5d	45		60.2
							2d	60		75.2

Details Images

Tips :
1. Our company mainly produces various series of self-drilling screw with tapping screw, dry wall screw, fiber board screw, self-tapping screw, machine screw, all kinds of non-standard goods. Our products are exported to Japan, Russia, Europe, United States, and other countries which gained the recognition from all clients. Our main products are very important building screws and fasteners.
