Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Suntisolar
-
Model Number:
-
XT1340SELD80-D5
-
Beam Angle(°):
-
Adjustable
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
24v
-
Lamp Luminous Flux(lm):
-
9,600-11,200lm
-
Working Temperature(℃):
-
-40-70
-
Solar panel:
-
Monocrystalline Silicon
-
Product name:
-
Solar Street Light
-
Type:
-
High Lumens Waterpoof IP65 Led Street Light
-
IP Grade:
-
IP66
-
LED Light Source:
-
Bridgelux SMD5050
-
Controller:
-
MPPT Intelligent Controller
-
Battery:
-
Li-ion Battery
-
Assemble:
-
Modular
-
LED Power:
-
80W
-
Item Type:
-
All In One
Quick Details
-
Color Temperature(CCT):
-
2700-6500K
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Suntisolar
-
Model Number:
-
XT1340SELD80-D5
-
Beam Angle(°):
-
Adjustable
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
24v
-
Lamp Luminous Flux(lm):
-
9,600-11,200lm
-
Working Temperature(℃):
-
-40-70
-
Solar panel:
-
Monocrystalline Silicon
-
Product name:
-
Solar Street Light
-
Type:
-
High Lumens Waterpoof IP65 Led Street Light
-
IP Grade:
-
IP66
-
LED Light Source:
-
Bridgelux SMD5050
-
Controller:
-
MPPT Intelligent Controller
-
Battery:
-
Li-ion Battery
-
Assemble:
-
Modular
-
LED Power:
-
80W
-
Item Type:
-
All In One

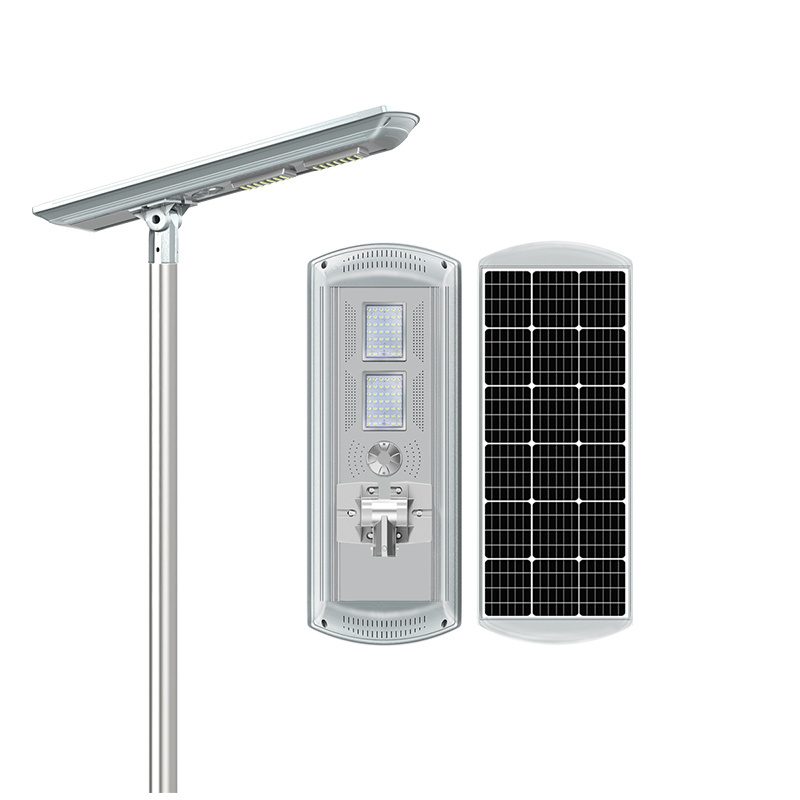

Sunti Solar all in one solar street light
Related Products
Our Advantages
1. Solar panel, batteries, controller and LED lamp are integrated into one body.
2. Direction of solar panel can be adjusted without influence on lighting angle of LED lamp.
3. Two energy output modes time-delay and half power controlled to LED lighting.
2. Direction of solar panel can be adjusted without influence on lighting angle of LED lamp.
3. Two energy output modes time-delay and half power controlled to LED lighting.
4. Dual power supplement mode, AC charging and solar charging both is selectable.
5. Water-proof and dust-proof (IP 66).
5. Water-proof and dust-proof (IP 66).
Character
1.
Battery
--We use Grade A Dynamic Lithium Battery which is exactly same as the battery used on Electric Car.
--
The complete battery production process are made by ourselves, including cell sorting, aging, welding, battery module aging. This is to guarantee the great performance of battery. But most other companies buy the battery module from others.
--
Our light are designed to equip maximum 12.8V 144Ah battery. Other lights can not hold this big battery.
--
Our battery are protected with single aluminum battery box to make it have real IP66 protection grade and easy replacement.
2.
Led
--
5050 LED Chip with maximum 220lm/W efficiency. Luminary efficiency is up to 180lm/W.
--
Each Lens is composed of 8 pcs 5050 LED Chips, maximum working power is 8W, but we make the actual working power only around 1W to 1.5W to extend the working lifetime of LED.
--
Thick and Big aluminum radiator, guarantee good performance of LED Radiation, which decides the lifetime directly.
3.
Aluminum Structure and Bracket
--
Die Casting aluminum are largely used for brackets. Strong aluminum structure frame guarantee the safety.
--
0.8mm thickness bracket plus double gear structure is unique to hold the complete light with pole.
--
Reasonable wind ventilation design of whole system.
--
Light installation angle is 90 degrees adjustable to match different application environment.
4.
Wire
--
Aviation grade silicone wire used to guarantee the safety under high temperate up to 125 degrees.
5.
Warranty
--
We offer the longest warranty 5 years for MnNico Ternary Lithium battery and 6 years warranty for LiFe PO4 Lithium battery.
Product Description
|
Technical Parameters：
|
|
Package：
|
|
||
|
Model
|
XT1340SELD80-D5
|
Net Weight（kg）：
|
23kg±5%
|
||
|
LED Quantity
|
40 PCS 5050
|
Gross Weight（kg）：
|
48kg±5%(2pcs/box)
|
||
|
Module Quantity (pcs)
|
2
|
Product Dimension（mm）：
|
1,340*525*86mm±5%
|
||
|
Power
|
80W
|
Package Dimension（mm）：
|
1,360*252*600mm±5%
|
||
|
Solar Panel
|
Monocrystalline Silicon of 36V/100W
|
Quantity in 20/40 Feet Container：（Pallet）
|
192PCS/448 PCS（Pallet）
|
||
|
Battery
|
Grade A Lithium Ion Battery of model 32650 25Ah/24V
|
Quantity in 20/40 Feet Container：（No Pallet）
|
240PCS/576 PCS（No Pallet）
|
||
|
Adjustable Angle of Module (±15°)
|
Yes
|
Environmental Temperature：
|
|
||
|
Contrtol Mode
|
Light Control+Time Control
|
Discharging Temperature（℃）：
|
-20～60
|
||
|
Working time under full power
|
12h
|
Charging Temperature（℃）：
|
-20～60
|
||
|
Working time under smart power control
|
84h
|
Storage Temperature（℃）：
|
0～45
|
||
|
Charging time (1,000W/m2)
|
6h
|
Installing Parameter:
|
|
||
|
On-off threshold level
|
on≦8LUX, OFF≧10LUX
|
Diameter of Pole（mm）：
|
Ø89mm
|
||
|
Material for secondary lighting distribution
|
PC
|
Screw Fixation：
|
YES
|
||
|
Beam Angle
|
C0~180 150°/ T90~270 80°
|
Wind resistance level（km/h）：
|
209
|
||
|
Protection Grade
|
IP66
|
Installation Height（m）：
|
8-9
|
||
|
Photoelectric Parameter：
|
|
Installation Distance（m）：
|
27-30
|
||
|
Color Temperature (K)
|
3,000-6,500K
|
Irradiation Area（m2）：
|
300
|
||
|
CRI (Ra)
|
70
|
|
|
||
|
Lumens (lm)
|
9,600-11,200lm
|
|
|
||
|
Intelligent Mode
|
Yes
|
|
|
||
|
Working under rainy days
|
7 to 10 days
|
|
|
||
Product Exploded View
