Quick Details
-
Product name:
-

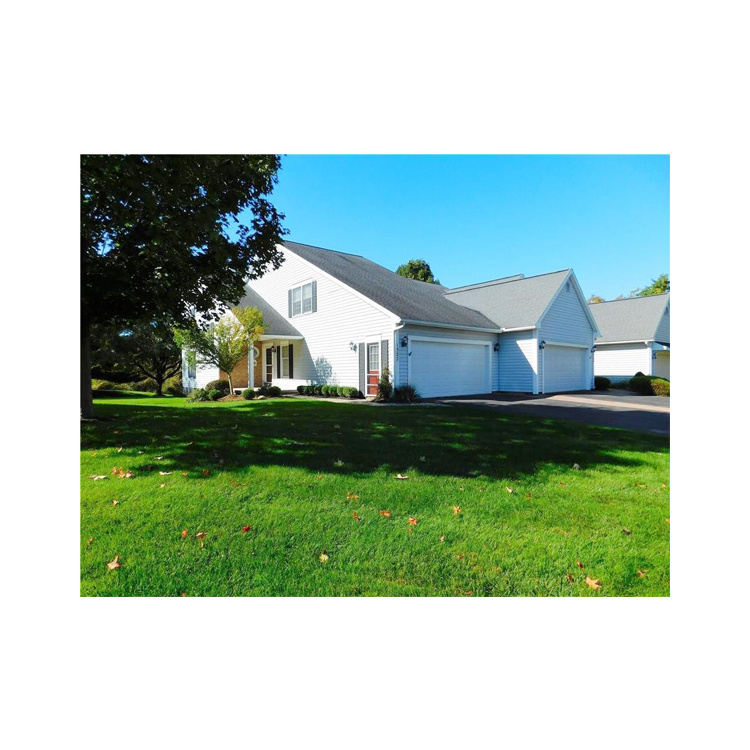

Light steel villa
-
Certificate:
-
ISO9001
-
Warranty period:
-
1 year
-
Standard:
-
ISO 9001:2008
-
Dimension:
-
per customer's requirement
-
Feature:
-
Eco-friendly
-
Type:
-
Light steel
-
Structure:
-
Galvanlized Steel Frame
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Botai
-
Model Number:
-
Light steel villa
-
Product name:
-
Light steel villa
-
Certificate:
-
ISO9001
-
Warranty period:
-
1 year
-
Standard:
-
ISO 9001:2008
-
Dimension:
-
per customer's requirement
-
Feature:
-
Eco-friendly
-
Type:
-
Light steel
-
Structure:
-
Galvanlized Steel Frame
Product Description
Introduction
The light steel villa utilize the 100% cold-bend thin wall steel as the structure body and can be used to build buildings within 6 floors. The main building component of this system is the frame bridge,which is composed by the galvanized cold-bending high frequency welded light thin wall rectangular pipe and the triangle,C type, triangle v type connection.All these prefabricated components are transferred to the construction site to be installed into the structure body. After that the interior,exterior wall panels and roof profile panels are laid out,while the heat and sound insulation material are filled into the space in the wall and floor deck.
This product solve the problem of “hot bridge,bad fire resistance”.
Advantages
1.Industrialized production with fast manufacturing speed and high precision;
2.Good looking,stable structure,good anti-shock and anti-corrosion property;
3.Cold-rolled thin wall light steel structure system building has lighter weight,shallow base,low pricing;
4.No need for large scale machines on the construction site. Fast installation. The construction of a 200m2 two-story villa can be completed by 6-8 skilled workers in about 20 days;
5.Convenient package and transportation:the transportation process is fully considered into the product design,optimize the load method, with about 130-150 m2 per 40 foot container；
6.The wall and roof panel is enclosed by multi-type material,which makes the walls of the building breathable and enhance a more comfortable residence in it.
7.The construction site is no wet,environment friendly,not seasonally restraint;
8.With the satisfaction of the functional needs,the wall is thinner,which increase the effective usage area of the building;
9.Customizable.
Construction sequence
Product Composition
Base
The light steel structure is very light weighed,1/5 of the brick-concrete structure,1/6 of the steel-concrete structure,significantly reduce the cost,light steel structure can apply the foundation of the strip foundation,crawl space and basement.
The thickness of the outer wall is generally between 100-200mm,due to the thinness of the wall it increase the usable area by 10%-15% compared to the traditional building,the space availability rate can be more than 90%,the interior space can be divided flexibly,the pipes and lines can be layout in the reserved holes in the ceiling reel with better concealment.
The roof can be site spliced using light steel purlin or precast into light weight steel wall and roof at the factory, and then lift mounted on site.The former one is suitable to build roof of complicated shape with flexible layout,the latter one can greatly improve the construction speed.
The floor deck slab is a light steel keel assembly with dense column structure,the keel spacing is in accordance with the roof frame by a certain modulus. The keel is covered by structure panels which are usually water-proof,anti-corrosion processed oriented strand board(or OSB board) . The floor deck is enclosed with thermal insulation wool.
Galvanized Q235 Q345 steel board,the zinc coating can effectively prevent the moisture air penetration,prevent the common corrosion of steel panel,greatly increase the structure life span.
