New Intelligent Electrostatic Powder Coating Machine Manual Powder Spray Gun Equipment Machine Metal Coating Machine Car Wheel

New Intelligent Electrostatic Powder Coating Machine Manual Powder Spray Gun Equipment Machine Metal Coating Machine Car Wheel

FOB Reference Price: Get Latest Price

≥1 Sets

US $1299

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Changhe

Voltage:: 220v

Power:: 50w

Weight (KG):: 50

Name:: Powder coating gun

Quick Details

Machine Type:: powder coating machine, Spray Booths, Painting Equipment, Coating Equipment, Spray Gun

Marketing Type:: Hot Product

Place of Origin:: Zhejiang, China

Brand Name:: Changhe

Voltage:: 220v

Power:: 50w

Weight (KG):: 50

Name:: Powder coating gun

Products Description

New Intelligent Electrostatic Powder Coating Machine

☑️It is suitable for spraying various types of workpieces such as automobile wheels, motorcycle parts, and hangers. The powder adsorption rate is high and the operation is simple. Even novice workers can easily get started.

Advantages :

▶ Good for fast color change

▶ Controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts

▶ The classic type, low failure rate, easy to use

▶ It is very easy to operate for a beginners, powerful for advanced users

Products Specification

Model CH-600
Component	controller + manual spray gun + trolley + hopper +accessories
Function	different shape of workpiece, flat / re-coat / corner
Electrical data
Power Voltage	100V- 240V
Power	≤50W
Frequency	50HZ /60HZ
Temperature range in use	-10 to 50 degree
Powder Gun
Rated output voltage	24V DC
Maximum output current	100Ua(max)
Maximum output voltage	0-100KV ( adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Fluidizing Powder Hopper
Capacity	55lbs

Details Images

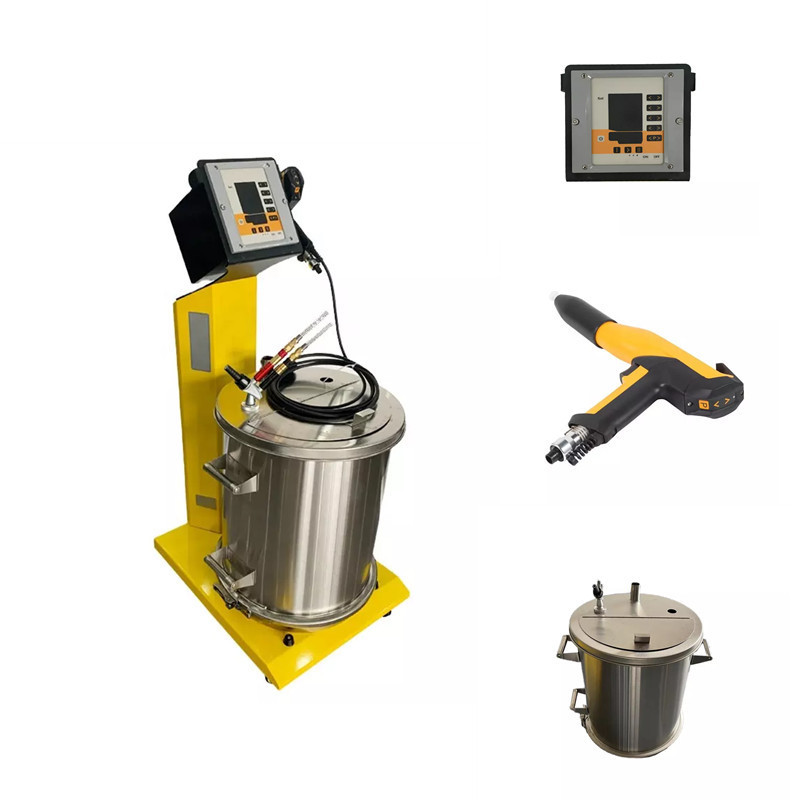

Powder Coating Machine Component

CH-600

1-----OptiStar CG13 Gun control unit

2------OptiSelect GM03 manual gun
3------ Nozzle set

4------ Fluidizing well-sealed hopper
5------ OptiFlow powder injector

6------ Trolley with wheels

Powder Gun Controller

*Current, voltage, powder output and atomization can be set separately. *Proportional valve makes gas volume and powder output precisely. *In addition to 3 default programs provided by the system, 20 programs can be stored. *One key to switch to the corresponding parameters when changing workpieces.

Electrostatic Spray Gun

* Antistatic wear - resistant material for spray gun.
*Ensures the high voltage and the service life.
*The remote control button is at the back of the gun.
*No matter how far away the user is from the control unit. The powder output and program can be adjustable at any time.

Powder Coating Hopper

*55lbs Bucket hopper for big or nomal scale powder coating production.

*Fully assembled with fluidizing bed and powder suction tube.

*The whole hopper can be detaches into pieces for easily thorough cleaning.
*Our powder container are made from stainless steel, or powder-coated steel, durable, anti-rust and long lasting.
