Quick Details
-
Model Number:
-
AM-XD-300Y18YJS
-
Color Temperature(CCT):
-
2700K/6000K, Pure White
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
900
-
Working Temperature(℃):
-
-20 - 40
-
LED Light Source:
-
SMD5730
-
Product name:
-
Round Led Ceiling Light
-
Sensor distance:
-
6-8m
-
Delay time:
-
15-25s
-
Warranty:
-
2 years
-
Sensor Type:
-
100%~20% or ON/OFF Mode
-
Beam Angle:
-
360 Angle
-
Luminous Efficacy(lm/w):
-
80
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
30000
Quick Details
-
Lamp Body Material:
-
IRON Base
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Allmay
-
Model Number:
-
AM-XD-300Y18YJS
-
Color Temperature(CCT):
-
2700K/6000K, Pure White
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
900
-
Working Temperature(℃):
-
-20 - 40
-
LED Light Source:
-
SMD5730
-
Product name:
-
Round Led Ceiling Light
-
Sensor distance:
-
6-8m
-
Delay time:
-
15-25s
-
Warranty:
-
2 years
-
Sensor Type:
-
100%~20% or ON/OFF Mode
-
Beam Angle:
-
360 Angle
-
Luminous Efficacy(lm/w):
-
80
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
30000

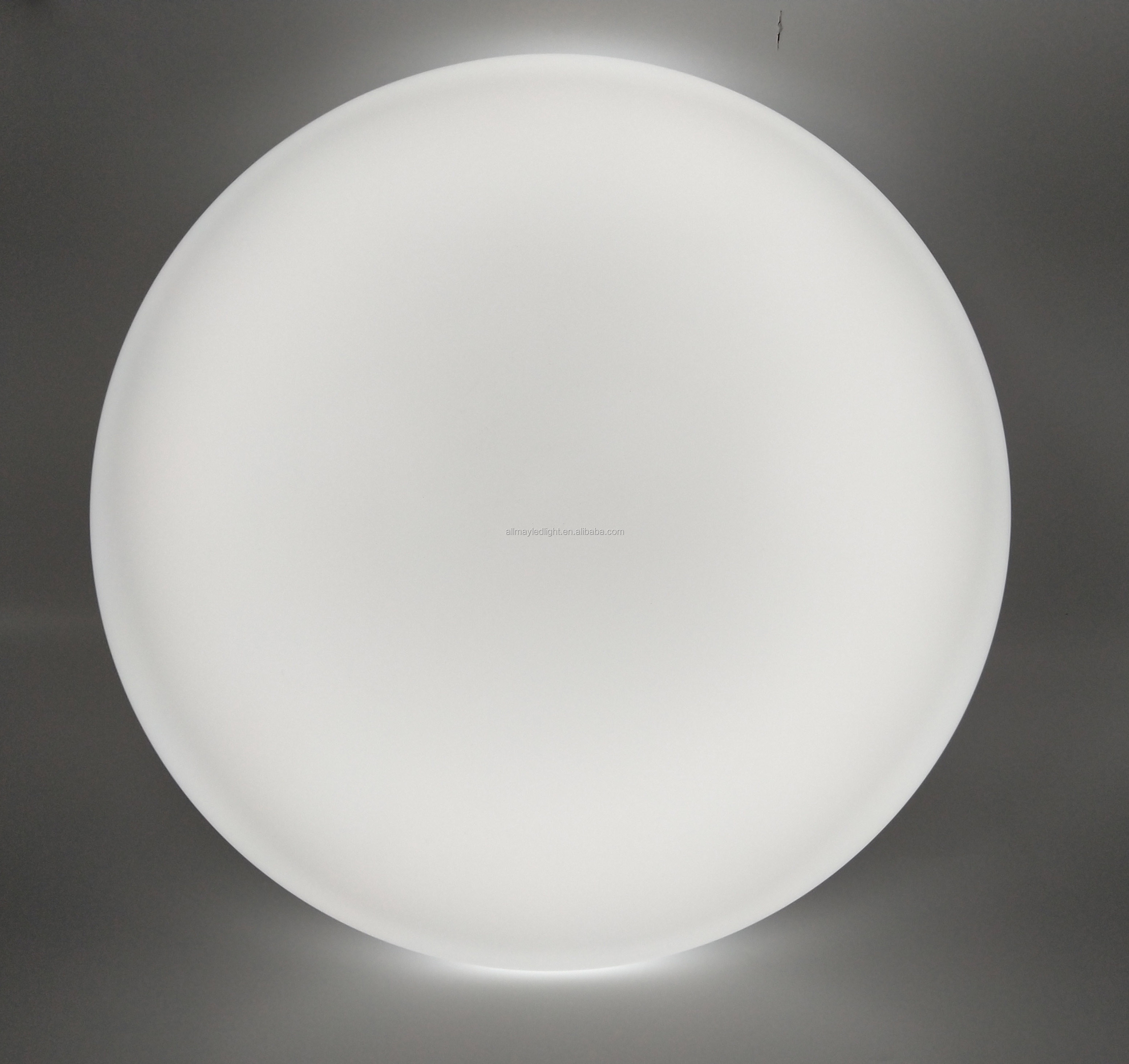

High Quality 15W 18W 300mm Diameter LED Microwave Sensor LED Ceiling Light with Battery operated
Specifications of emergency 15/18W led radar sensor ceiling light :
| Type | Motion sensor led ceiling light with build-in battery | |
| Model | AM-XD-300RDYJ15 | AM-XD-300RDYJ18 |
| Full Power | 15W | 18W |
| LED Qty | 30pcs*SMD5730 | 36pcs*SMD5730 |
| Rated Lumen | 800-900lumen | 800-900lumen |
| CRI | >70 | >70 |
| CCT | 2700K/6000K | 2700K/6000K |
| Power Factor | >0.9 | >0.9 |
| Beam Angle | 120 degree | 120 degree |
| Product Sizes (mm) | Φ300*H90 | Φ300*H90 |
| Color box Sizes(mm) | 370*370*110 | 370*370*110 |
| Structure | Steel base & Acrylic cover | Steel base & Acrylic cover |
| Sensor data | ||
| Sensor distance | 6-8m radius | 6-8m radius |
| Delay time | 15+/-5s | 15+/-5s |
| Sensor Principle | HF Microwave 5.8GHz | HF Microwave 5.8GHz |
| Transmission power | <0.2mW | <0.2mW |
| Detection range: Max(diameter*H) | 8m*6m | 8m*6m |
| Detection angle | 30° ~150° | 30° ~150° |
| Sensor Mode |
On/Off Full/Dim (100%~20%) |
On/Off Full/Dim (100%~20%) |
| Emergency Data | ||
| Emergency Power | 3W | 3W |
| Lithium Battery | 18650, 12V, 1200mAh | 18650, 12V, 1200mAh |
| Backup time | 90-110 mins | 90-110 mins |
| Operation Temperature(Ta) | -10~40°c | -10~40°c |
| IP Rating | IP20 | IP20 |
| Function |
1. Connect to main power, (AC100-265V), The light work as a sensor light. (Full/dim mode)
2. When power failure/Outage, The light work on emergency Backup mode, Backup power: 3W, Backup time: 90-110mins |
|
Customer Questions & Answers
- Sensor type A : ON/OFF Mode (100%-0%)
when detect movement lighting, Light turn on at 100% brightness,
no movement, stand by status light off (0%)
- Sensor type B : Sensor Full/Dim Mode (100%~20%)
when detect movement lighting, Light turn on at 100% Brightness,
no movement, stand by status lighting turn to 20% (2-3 watt)
- Delay time: 20 seconds
( mean, the last movement past, light still keep on lighting 20 seconds)
- Brightness(Daylight) Sensor <10 lux (Optional)
with brightness sensor, that mean motion sensor only work at night,
even if there is movement in daytime,the light doesn't light on.
- Quality control:
we have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
- Warranty : 2 years
- Application: corridor stair way warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.
