Quick Details
-
Warranty:
-
12 Years
-
Brand Name:
-
JA SOLAR
-
Model Number:
-
JAM72D30
-
Place of Origin:
-
Shanghai, China
-
Panel Dimensions:
-
228.5*113.4*3.5cm
-
Product name:
-
Solar Panel
-
Cell:
-
Mono
-
Number of Cells:
-
144(24*6)
-
Dimension:
-
2285*1134*35mm
-
Weight:
-
31.6kg
-
Junction Box:
-
IP68, 3 diodes
-
Maximum System Voltage:
-
1500V DC
-
Operate Temperature:
-
-40℃~+85℃
-
Fire Performance:
-
U L Type 29
-
Packaging:
-
31pcs/Pallet, 620pcs/40ft Container
-
Certificate:
-
TUV,CE,IEC,ISO
Quick Details
-
Cell size:
-
standard
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass
-
Panel Efficiency:
-
525W-550W
-
Warranty:
-
12 Years
-
Brand Name:
-
JA SOLAR
-
Model Number:
-
JAM72D30
-
Place of Origin:
-
Shanghai, China
-
Panel Dimensions:
-
228.5*113.4*3.5cm
-
Product name:
-
Solar Panel
-
Cell:
-
Mono
-
Number of Cells:
-
144(24*6)
-
Dimension:
-
2285*1134*35mm
-
Weight:
-
31.6kg
-
Junction Box:
-
IP68, 3 diodes
-
Maximum System Voltage:
-
1500V DC
-
Operate Temperature:
-
-40℃~+85℃
-
Fire Performance:
-
U L Type 29
-
Packaging:
-
31pcs/Pallet, 620pcs/40ft Container
-
Certificate:
-
TUV,CE,IEC,ISO
Specification
|
Specifications
|
|
|
|
Cell
|
Mono
|
|
|
Weight
|
31.6kg±3%
|
|
|
Dimensions
|
2285±2mm*1134±2mm*35±1mm
|
|
|
Cable Cross Section Size
|
4mm² ( IEC ) ,12 AWG ( UL )
|
|
|
No.of cells
|
144 ( 6*24 )
|
|
|
Junction Box
|
IP68, 3 diodes
|
|
|
Connector
|
QC 4.10-35
|
|
|
Cable Length(Including Connector)
|
Portrait: 300mm(+)/400mm(-) , Landscape: 1300mm(+) / 1300mm(-)
|
|
|
Packaging Configuration
|
31pcs/Pallet, 620pcs/40ft Container
|
|
|
OPERATING CONDITIONS
|
|
|
|
Maximum System Voltage
|
1500V DC
|
|
|
Operating Temperature
|
-40℃~+85℃
|
|
|
Maximum Series Fuse Rating
|
30A
|
|
|
Maximum Static Load, Front
|
5400pa(112lb/ft²)
|
|
|
Maximum Static Load, Back
|
2400pa(50lb/ft²)
|
|
|
NOCT
|
45±2℃
|
|
|
Bifaciality**
|
70%±10%
|
|
|
Fire Performance
|
U L Type 29
|
|

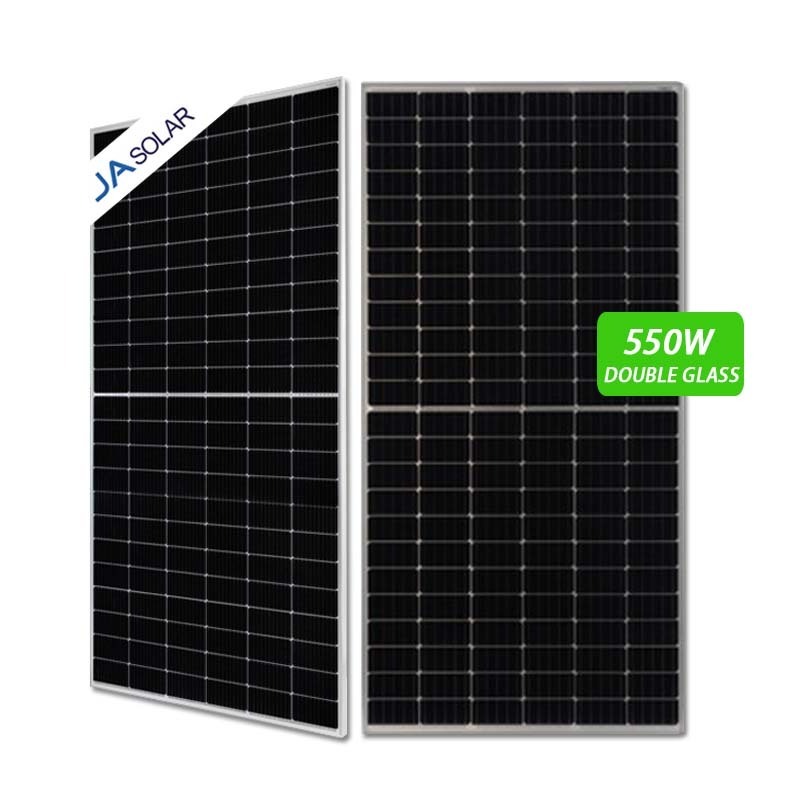

Products Description
JAM72D30 525-550/MB
Assembled with 11BB bifacial PERCIUM cells and half-cell configuration, these double glass modules have the capability of converting the incident light from the rear side together with the front side into electricity, providing higher output power, lower temperature coefficient, less shading loss, as well as enhanced tolerance for mechanical loading.
|
Electrical Parameters at STC
|
|
|
|
|
|
|
||||||
|
TYPE
|
JAM72D30-525/MB
|
JAM72D30-530/MB
|
JAM72D30-535/MB
|
JAM72D30-540/MB
|
JAM72D30-545/MB
|
JAM72D30-550/MB
|
||||||
|
Rated Maximum Power(Pmax) (W)
|
525
|
530
|
535
|
540
|
545
|
550
|
||||||
|
Open Circuit Voltage(Voc) (V)
|
49.15
|
49.30
|
49.45
|
49.60
|
49.75
|
49.90
|
||||||
|
Maximum Power Voltage(Vmp) (V)
|
41.15
|
41.31
|
41.47
|
41.64
|
41.80
|
41.96
|
||||||
|
Short Circuit Current(Isc) (A)
|
13.65
|
13.72
|
13.79
|
13.86
|
13.93
|
14.00
|
||||||
|
Maximum Power Current(Imp) (A)
|
12.76
|
12.83
|
12.90
|
12.97
|
13.04
|
13.11
|
||||||
|
Module Efficiency (%)
|
20.3
|
20.5
|
20.6
|
20.8
|
21.0
|
21.2
|
||||||
|
Power Tolerance
|
0~+5w
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Isc
(α_Isc)
|
+0.045%/℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Voc
(β_Voc)
|
-0.275%/℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Pmax
(γ _Pmp)
|
-0.350%/℃
|
|
|
|
|
|
||||||
|
STC
|
Irradiance 1000W/m², cell temperature 25℃, AM1.5G
|
|
|
|
|
|
||||||
|
Electrical Characteristics with Different Power Range
(Refrence to 10% Solar Illuminance Ratio)
|
|
|
|
|
|
|
||||||
|
TYPE
|
JAM72D30-525/MB
|
JAM72D30-530/MB
|
JAM72D30-535/MB
|
JAM72D30-540/MB
|
JAM72D30-545/MB
|
JAM72D30-550/MB
|
||||||
|
Rated Max Power(Pmax) (W)
|
562
|
567
|
572
|
578
|
583
|
589
|
||||||
|
Open Circuit Voltage(Voc) (V)
|
49.54
|
49.67
|
49.80
|
49.93
|
50.03
|
50.21
|
||||||
|
Max Power Voltage(Vmp) (V)
|
41.53
|
41.77
|
41.99
|
42.24
|
42.43
|
42.67
|
||||||
|
Short Circuit Current(Isc) (A)
|
14.34
|
14.39
|
14.45
|
14.50
|
14.56
|
14.63
|
||||||
|
Max Power Current(Imp) (A)
|
13.52
|
13.58
|
13.63
|
13.69
|
13.74
|
13.79
|
||||||
|
Irradiation Ratio (rear / front)
|
10%
|
|
|
|
|
|
||||||
|
*For NexTracker Installations, Maximum Static Load, Front is 2400Pa while Maximum Static Load, Back is 2400Pa.
**Bifaciality=Pmax, rear/Rated Pmax, front
|
|
|
|
|
|
|
||||||
Advantages of Double Glass Solar Panels
1. The power generation with higher life cycle is 21% higher than that of ordinary solar panels.
2. The warranty of the
ordinary solar panels
is 25 years, and that of the double glass
solar panel
is 30 years.
3. The attenuation of traditional
solar panel
is about 0.7%, and that of double glass
solar panel
is 0.5%.
4. The water permeability of glass is almost zero, so it is not necessary to consider the hydrolysis of EVA adhesive film induced by water vapor entering the module.
5. The wear resistance of glass is very good, which also solves the problem of wind and sand resistance of
solar panel
in the field.
6. The insulation of glass is better than that of backsheet, so that the double glass
solar panel
can meet higher system voltage, so as to save the system cost of the whole power station.
7. The fire rating of double glass
solar panel
is upgraded from C to a of ordinary crystalline silicon
solar panel
, making it more suitable for residential buildings, chemical plants and other areas that need to avoid potential fire hazards.
|
Type
|
Model
|
Power
|
Size
|
Weight
|
No.of cells
|
|
Single-glass
|
JAM54S30
|
390W-415W
|
1722*1134*30mm
|
21.5kg
|
108(18*6)
|
|
|
JAM60S10
|
330W-350W
|
1689*996*35mm
|
18.7kg
|
120(20*6)
|
|
|
JAM60S20
|
365W-390W
|
1769*1052*35mm
|
20.5kg
|
120(6*20)
|
|
|
JAM72S10
|
400W-420W
|
2015*996*40mm
|
22.7kg
|
144(24*6)
|
|
|
JAM72S20
|
445W-470W
|
2112*1052*35mm
|
24.5kg
|
144(24*6)
|
|
|
JAM72S30
|
525W-550W
|
2279*1134*35mm
|
28.6kg
|
144(24*6)
|
|
Double-glass
|
JAM60D10
|
330W-350W
|
1711*1005*30mm
|
22kg
|
120(20*6)
|
|
|
JAM60D20
|
360W-385W
|
1774*1052*35mm
|
23kg
|
120(20*6)
|
|
|
JAM72D10
|
400W-420W
|
2037*1005*30mm
|
25kg
|
144(24*6)
|
|
|
JAM72D20
|
440W-465W
|
2117*1052*35mm
|
27.3kg
|
144(24*6)
|
|
|
JAM72D30
|
525W-550W
|
2285*1134*35mm
|
31.6kg
|
144(24*6)
|
