Quick Details
-
Panel Size:
-
1920
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SINO-P4
-
Pixel Pitch:
-
1
-
Display Function:
-
Video
-
Tube Chip Color:
-
FULL COLOR
-
Brightness:
-
More than 6500cd/sqm
-
Input voltage:
-
5V/40A
-
Refresh frequency:
-
More than 3000HZ
-
Power supply:
-
Meanwell
-
Drive method:
-
1/4 Scan
-
Lifespan:
-
More than 100,000
-
Usage:
-
Indoor
-
Waterproof:
-
IP65
Quick Details
-
Application:
-
led display
-
Brand Name:
-
LEEMAN
-
Color:
-
rgb
-
Panel Size:
-
1920
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SINO-P4
-
Pixel Pitch:
-
1
-
Display Function:
-
Video
-
Tube Chip Color:
-
FULL COLOR
-
Brightness:
-
More than 6500cd/sqm
-
Input voltage:
-
5V/40A
-
Refresh frequency:
-
More than 3000HZ
-
Power supply:
-
Meanwell
-
Drive method:
-
1/4 Scan
-
Lifespan:
-
More than 100,000
-
Usage:
-
Indoor
-
Waterproof:
-
IP65

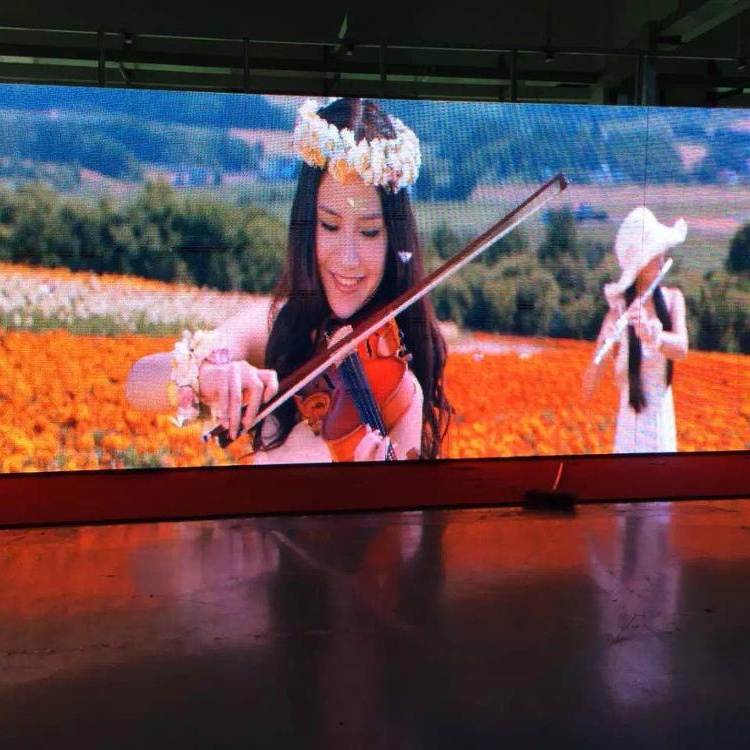

P2.5 P3 P4 P5 P6 P7.62 P8 P10 Indoor & Outdoor SMD RGB LED Display Screen
| P4 |
|
Description:
Applications:
|
| Item No. | P3 | P4 | P5 | P6 |
| Classification | Full color | Full color | Full color | Full color |
| Pixel pitch | 3mm | 4mm | 5mm | 6mm |
| Size of module (mm*mm) | 96*96/192*96 | 128*128 | 160*160 | 192*96 |
| Pixel density | 111111 dots/m 2 | 62500 dots/m 2 | 40000 dots/m 2 | 27777 dots/m 2 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED encapsulation | SMD2020 | SMD2020 | SMD3528 | SMD3528 |
| Resolution of module | 32*32/64*32 | 32*32 | 32*32 | 32*16 |
| Best viewing distance | 0.5m | 1m | 2m | 3m |
| Best viewing angle (Horizontal/Vertical) | 160°/120° | 160°/120° | 160°/120° | 160°/120° |
| Max power consumption | 450 W/m 2 | 450 W/m 2 | 400W/m 2 | 400W/m 2 |
| AVG power consumption | 250~550 W/m 2 | 250~550 W/m 2 | 300~650W/m 2 | 300~650W/m 2 |
| Size of standard cabinet(mm) | 576*576 | 512*512 | 640*640 | 768*768 |
| Resolution of standard cabinet | 192*192 | 128*128 | 128*128 | 128*128 |
| Weight of standard cabinet | 8kg | 9kg | 9.5kg | 10kg |
| Driving method | 1/16 Scan | 1/16 Scan | 1/16 Scan | 1/8 Scan |
| Frame frequency | 60Hz/s | 60Hz/s | 60Hz/s | 60Hz/s |
| Refresh rate | ≥3000HZ | ≥3000HZ | ≥3000HZ | ≥3000HZ |
| White balance brightness | ≥2000cd/m 2 | ≥2000cd/m 2 | ≥2200cd/m 2 | ≥2200cd/m2 |
| Working /Storage environment temperature | Working: —40°C~80°C Storage: —40°C~60°C | |||
| Operating ambient humidity | Working: 10%--95% HR Storage: 10%--95% HR | |||
| IP grade | IP45~IP65 | |||
| Working voltage | AC 220±10% or 110±10% | |||
| Grey scale | 14 bits per color | |||
| Brightness adjustment | 256 levels of each color (RGB) can be adjusted manually | |||
| Signal input | RF, S-Video, RGB, RGBHV, YUV, YC.ect | |||
| Control system | PCTV non-linear editing card+ DVI display card+ main controller card+ optical fibre transmission ( optional) | |||
| MTBF | ≥5000 hours | |||
| Life span | ≥100000 hours | |||
| Malfunction dot rate | less than0.0001 | |||
| Transmission distance | LAN cable less than100m; Optic fiber transmission: MMF less than 500m, SMF less than 20km | |||
| Refresh rate can be higher by using more receivers: other parameter can be changed according to different application. | ||||
