Quick Details
-
Model Number:
-
LW28-32 2
-
Max. Current:
-
125A
-
Mechanical Life:
-
1000000
-
Type:
-
LW28-20
-
Frequency:
-
50/60Hz
-
Brand:
-
YUMO
-
Max current:
-
125A
-
Product Name:
-

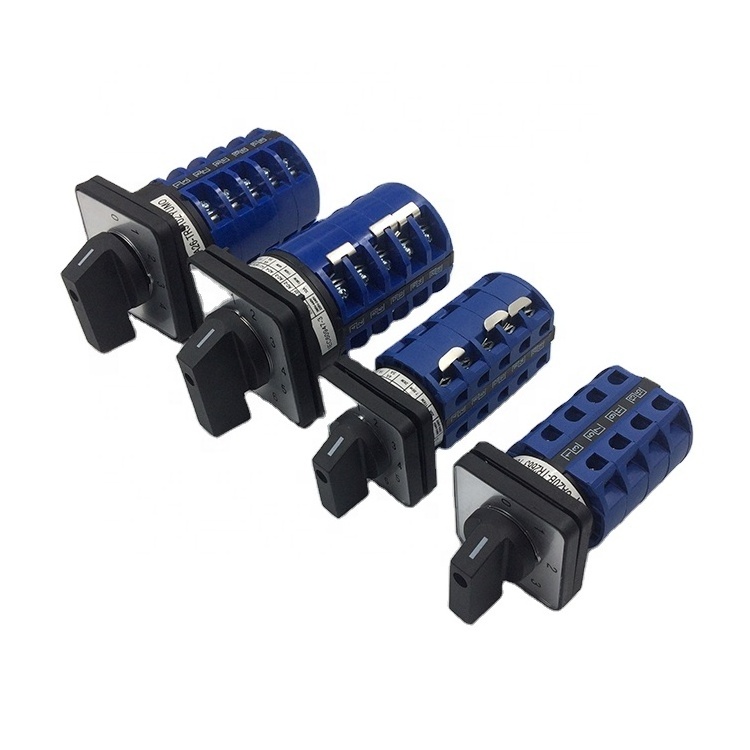

cam switch
-
Current:
-
20,25,32,63,125,160A
-
Pole:
-
1~4 Poles
-
Color:
-
Blue Black
-
Packaging:
-
1box
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUMO
-
Model Number:
-
LW28-32 2
-
Max. Current:
-
125A
-
Mechanical Life:
-
1000000
-
Type:
-
LW28-20
-
Frequency:
-
50/60Hz
-
Brand:
-
YUMO
-
Max current:
-
125A
-
Product Name:
-
cam switch
-
Current:
-
20,25,32,63,125,160A
-
Pole:
-
1~4 Poles
-
Color:
-
Blue Black
-
Packaging:
-
1box
-
Certification:
-
CE
switch,rotary cam switch,selector switch,universal changover switch,combination switch,LW26,LW2,LW6,YMW26,LW28
|
APPLICATION
|
|
|
LW 28 series of all-purpose transfer switch is used in AC 50Hz rated voltage up to 440V, 240 V DC rated current up to AC 63 A , do not put through frequently for by hand or switching circuit make control and conversion , may also directly control little capacity AC motor with decide make control and circuit measure.
|
|
|
Product model and its meaning
|
|
| The main model meaning that makes control use transfer switch . | |
|
Pour: change angle code name is 30°(3):45°(4):60°(6):90°(9):30°Since answering 60 ° position (36): 45 ° from answer 90 ° position (49).
|
|
|
Major technical parameter
|
|
|
Type
|
Lth A
|
Ui V
|
Ue V
|
AC -21A
|
AC -22A
|
AC-23
|
AC-2
|
AC-3
|
AC-4
|
AC-15
|
DC-13
|
||||
|
le A
|
le A
|
le A
|
Pkw
|
Le A
|
PkW
|
Le A
|
P kW
|
leA
|
P kW
|
leA
|
leA
|
||||
|
LW28-20
|
20
|
660
|
440
|
20
|
20
|
15
|
7.5
|
15
|
7.5
|
11
|
5.5
|
3.5
|
1.5
|
4
|
|
|
240
|
5
|
1
|
|||||||||||||
|
120
|
5
|
||||||||||||||
|
LW28-25
|
25
|
440
|
25
|
25
|
22
|
11
|
22
|
11
|
15
|
7.5
|
6.5
|
3
|
5
|
||
|
240
|
8
|
1.5
|
|||||||||||||
|
120
|
9
|
||||||||||||||
|
LW28-32
|
32
|
440
|
32
|
32
|
30 |
15
|
30
|
15
|
22
|
11
|
11
|
5.5
|
6
|
||
|
240
|
14
|
11
|
|||||||||||||
|
120
|
25
|
||||||||||||||
|
LW28-63
|
63
|
440
|
63
|
63
|
57
|
30
|
57
|
30
|
36
|
18.5
|
15
|
7.5
|
|||
