Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCX /OEM
-
Model Number:
-
YCX-W695AHBB95DA
-
Warranty:
-
2 Years
-
Type:
-
5mp ip camera
-
Solution:
-
SSC337DE+IMX335
-
Pixel:
-
25fps@5MP(2592*1944)
-
IR Leds:
-
18PCS SMD IR Leds
-
IR Distance:
-
20-25M
-
Lens:
-
2.8-12mm VF Lens
-
Image Sensor:
-
1/2.8" CMOS Sensor
-
Service:
-
OEM & ODM /Dome POE /P2P/ Indoor
-
APP:
-
Danale
-
Certificates:
-
CE, FCC, RoHS, ISO9001
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection, Waterproof / Weatherproof
-
Function:
-
NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCX /OEM
-
Model Number:
-
YCX-W695AHBB95DA
-
Warranty:
-
2 Years
-
Type:
-
5mp ip camera
-
Solution:
-
SSC337DE+IMX335
-
Pixel:
-
25fps@5MP(2592*1944)
-
IR Leds:
-
18PCS SMD IR Leds
-
IR Distance:
-
20-25M
-
Lens:
-
2.8-12mm VF Lens
-
Image Sensor:
-
1/2.8" CMOS Sensor
-
Service:
-
OEM & ODM /Dome POE /P2P/ Indoor
-
APP:
-
Danale
-
Certificates:
-
CE, FCC, RoHS, ISO9001

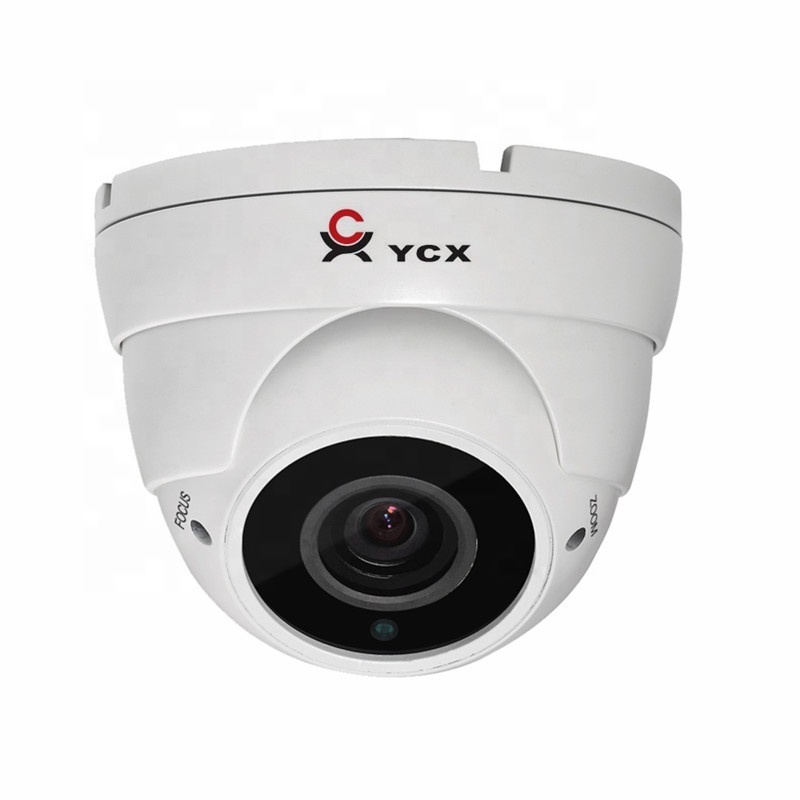

High Quality IMX335 5MP Metal Dome CCTV Security IP Camera, Starvis Sensor
Features:
² 1/2.8" IMX 335 CMOS sensor
² Full HD resolution 2592 x 1 944 P
² Ultra low illumination 0.001Lux
² Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
² D-WDR, Motion Detection, Privacy Mask, Mirror
² RTSP and Ovif 11.07 compatible
² H.265/H.264 dual-stream media server
² Easy-to-use P2P Cloud service
² Multi web browser, PC Client, mobile APP remote access
² Optional customization Lens/Audio/Alarm/Storage/POE etc.
² Lightning protection 4000V
² Strong water-proof housing , IP66
² 18pcs SMD IR Leds, IR distance 20- 25m
² HD 2.8-12 mm varifocal lens
Technical Specifications:
|
Model |
YC-W555AHBB95DA |
|
Camera |
|
|
Image Sensor |
1/2.8" IMX335 CMOS |
|
Effective Pixels |
2592 (H) × 1944 (V) |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux, F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Indoor/Outdoor |
|
AGC/BLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
Motion Detection, Privacy Mask, Mirror, flip |
|
Encode |
|
|
Embedded Solution |
Mstar 316DM |
|
Video Standard |
H.265/H.264 |
|
Video Resolution |
Main Stream:15fps@ 5MP(2592*1944) , 25fps@ 4MP(2592*1520) Sub Stream: VGA(640x480)/360P@25fps, etc. |
|
Video Bitrates |
32Kbps - 6Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a |
|
IR Led |
|
|
IR Led |
18pcs SMD IR Array Leds |
|
IR Distance |
20-25m |
|
Lens |
|
|
Focal length |
2.8-12mm varifocal lens |
|
Optional Function |
|
|
POE, Audio, Alarm In/Out, SD card, etc. |
|
|
Network Services |
|
|
Protocol |
RTSP/FTP/DHCP/NTP etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox, etc. |
|
Media |
CMS, Android, IOS |
|
OVIF |
11.07 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, POE optional |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
< 10 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
