Quick Details
-
Model Number:
-
WRJK2-173
-
Product name:
-
Industrial furnaces double elements J type MI cable thermocouples
-
Product specifications:
-
According to customer's requirements
-
Type:
-
double elements J (K/N/E/T/PT)
-
Probe material:
-
SS304/316/2520/GH3039/3030/inconel600
-
Probe diameter:
-
3~8mm/customized
-
Probe length:
-
300-5000mm/customized
-
Application:
-
Widely/water/Air/Oil/Gas/Fire/Industrial furnace
-
Feature:
-
24 Hours Temperature Measurement
-
Certificate:
-
ISO9001
-
Sample:
-
Available
Quick Details
-
Warranty:
-
6 months
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
nanpac
-
Model Number:
-
WRJK2-173
-
Product name:
-
Industrial furnaces double elements J type MI cable thermocouples
-
Product specifications:
-
According to customer's requirements
-
Type:
-
double elements J (K/N/E/T/PT)
-
Probe material:
-
SS304/316/2520/GH3039/3030/inconel600
-
Probe diameter:
-
3~8mm/customized
-
Probe length:
-
300-5000mm/customized
-
Application:
-
Widely/water/Air/Oil/Gas/Fire/Industrial furnace
-
Feature:
-
24 Hours Temperature Measurement
-
Certificate:
-
ISO9001
-
Sample:
-
Available
Product Description

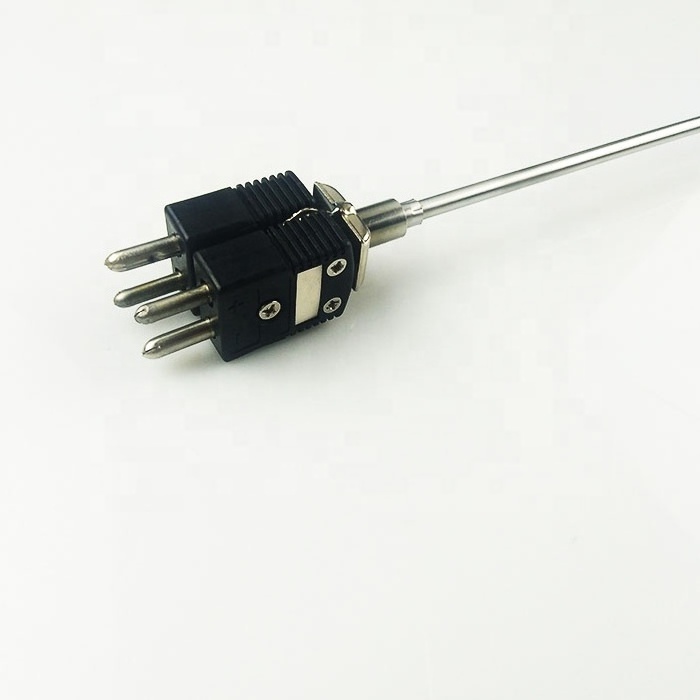

Industrial furnaces temperature sensor double elements J type MI cable thermocouples
This product is suitable for all kinds of industrial furnaces for a long time.
Please contact us directly for details.
| Product specifications | According to customer's requirements |
| Product Keywords |
double elements J type thermocouples,MI cable thermocouples
|
| Type | Positive and negative pole materials | Model | Range | Wire diameter | Accuracy | Allowable difference |
| K | Nickel chromium nickel silicon | WRK (WRN) | -200~1260C | 0.3~3.2 | I | ±1.5°C or ±0.4%t |
| N | Nickel chromium silicon nickel silicon magnesium | WRN (WRM) | -200~1300C | 0.3~3.2 | I | ±1.5°C or ±0.4%t |
| E | Nickel chrome Copper nickel | WRE | -200~900C | 0.3~3.2 | I | ±1.5°C or ±0.4%t |
| J | Iron copper nickel | WRJ (WRF) | -40~750C | 0.3~3.2 | I | ±1.5°C or ±0.4%t |
| T | Copper copper nickel | WRT (WRC) | -200~350C | 0.2~1.6 | I | ±0.5°C or ±0.4%t |
| S | Platinum and rhodium10 Platinum | WRS (WRP) | 0~1600C | 0.5 | I | ±1°C or ±[1+0.3%(t-1100)]°C |
| R | Platinum and rhodium13 Platinum | WRR (WRQ) | 0~1600C | 0.5 | I | ±1°C or ±[1+0.3%(t-1100)]°C |
| B | Platinum and rhodium30 Platinum and rhodium6 | WRB (WRR) | 0~1700C | 0.5 | Ⅱ | ±0.25%t |
| C | Tungsten rhenium5 Tungsten rhenium26 | WRC (WRW) | 0~2300C | 0.5 | Ⅱ | ±4°C or 1.0%|t| |
| D | Tungsten rhenium3 Tungsten rhenium25 | WRD (WRW) | 0~2300C | 0.5 | Ⅱ | ±4°C or 1.0%|t| |
Factory introduction
We focus on producing high-quality products as our core customer. Specialized and customized products make our product types rich and varied, more professional and pertinent.
Each batch of less than 100 pieces of your goods, we probably completed in 7 working days.
After each step of the process, we will allow you to confirm the image or video format, allowing you to feel the perfection of our customized services.
We have professional precision testing equipment to ensure the highest quality for our products.
