Quick Details
-
Brand Name:
-
FTL
-
Voltage:
-
380/400/415/480V
-
Dimension(L*W*H):
-
according to the different capacity
-
Weight:
-
5800 KG
-
Keyword:
-
Vibrating Screen
-
Keywords:
-
discount Vibrating Screen
-
Product name:
-
rotary vibrating screen
-
Layer(s):
-
1-5 Layers
-
Function:
-
Screening\separation\sorting\sieving
-
Usage:
-
Separation Screening
-
Local Service Location:
-
Indonesia
-
Local Service Location2:
-
Pakistan
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE/ISO
Quick Details
-
Type:
-
Rotary
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FTL
-
Voltage:
-
380/400/415/480V
-
Dimension(L*W*H):
-
according to the different capacity
-
Weight:
-
5800 KG
-
Keyword:
-
Vibrating Screen
-
Keywords:
-
discount Vibrating Screen
-
Product name:
-
rotary vibrating screen
-
Layer(s):
-
1-5 Layers
-
Function:
-
Screening\separation\sorting\sieving
-
Usage:
-
Separation Screening
-
Local Service Location:
-
Indonesia
-
Local Service Location2:
-
Pakistan
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE/ISO
Rotary Vibrating Screen (discount stock/50% off)
stone crushing separating plant

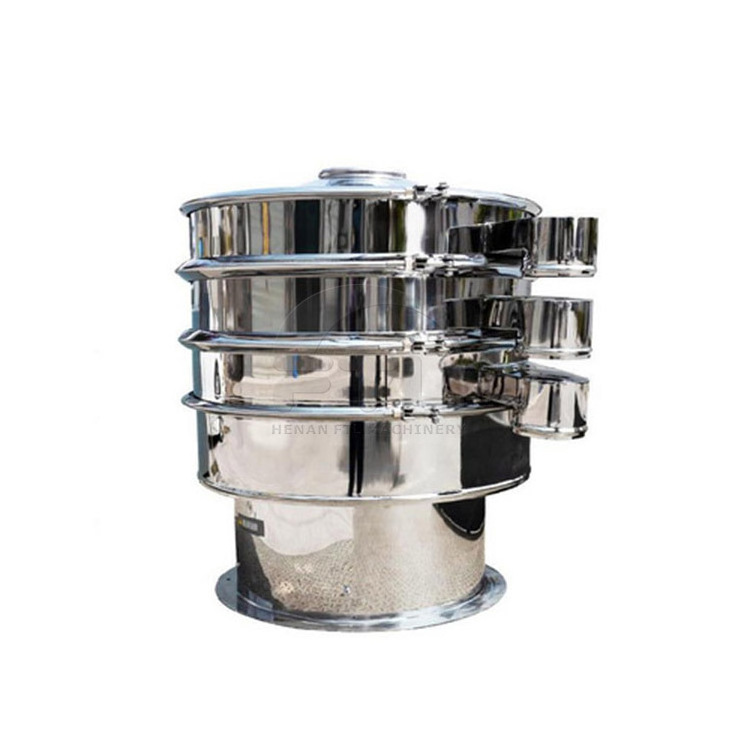

The rotary vibrating screen, produced by FTL Machinery, is a kind of high precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to switch screens quickly. Fully enclosed structure, suitable for screening and filtration of particles, powder, mucus and other materials.
The rotary vibrating screen consists of a vertical motor. The exciting and eccentric weight are installed at the upper and lower ends of the motor. It converts the rotary motion of the motor into horizontal, vertical and inclined three-dimensional motion, and then transmits the motion of the screen surface. By adjusting the phase angle of the upper and lower end faces, the movement track of the material on the screen surface can be changed.
All of our product are designed and manufactured by our professional workers,FTL Machinery, and every product will be tested before shippment to ensure the quality and nomal operation.
|
Type |
FTLR400 |
FTLR600 |
FTLR800 |
FTLR1000 |
FTLR1200 |
FTLR1500 |
|
Screen diameter mm |
340 |
530 |
720 |
900 |
1100 |
1400 |
|
Screen mesh |
2-325 |
|||||
|
Feed size mm |
< 10 |
< 10 |
< 20 |
< 20 |
< 20 |
< 20 |
|
Effective screen area M3 |
0.09 |
0.22 |
0.4 |
0.63 |
0.95 |
1.5 |
|
layer |
1-4 |
|||||
|
Power kw |
0.18 |
0.25 |
0.55 |
0.75 |
1.1 |
2.2 |
