Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
LA10 LA18B (8+4)
-
Dimension (L x W x H):
-
68X58X50CM (subwoofer)
-
Product Name:
-
Line Array Speakers
-
Rated Power (subwoofer):
-
800W
-
Rated Power (speaker):
-
HF:80W, LF:300W
-
LF Speaker:
-
1 x 10 inch neo speaker (75mm coil)
-
HF Driver:
-
1 x 3 inch neo tweeter (44mm coil)
-
LF SPL:
-
LF: 124/130dB
-
HF SPL:
-
HF: 122/128dB
-
18 Inch Subwoofer:
-
1 x 18 inch neo subwoofer (100mm coil)
-
H x V:
-
100° x 10°
-
Application:
-
Performance
Quick Details
-
Power:
-
800W (subwoofer)
-
Frequency Range (Hz):
-
70Hz-18kHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
LA10 LA18B (8+4)
-
Dimension (L x W x H):
-
68X58X50CM (subwoofer)
-
Product Name:
-
Line Array Speakers
-
Rated Power (subwoofer):
-
800W
-
Rated Power (speaker):
-
HF:80W, LF:300W
-
LF Speaker:
-
1 x 10 inch neo speaker (75mm coil)
-
HF Driver:
-
1 x 3 inch neo tweeter (44mm coil)
-
LF SPL:
-
LF: 124/130dB
-
HF SPL:
-
HF: 122/128dB
-
18 Inch Subwoofer:
-
1 x 18 inch neo subwoofer (100mm coil)
-
H x V:
-
100° x 10°
-
Application:
-
Performance
Products Description
|

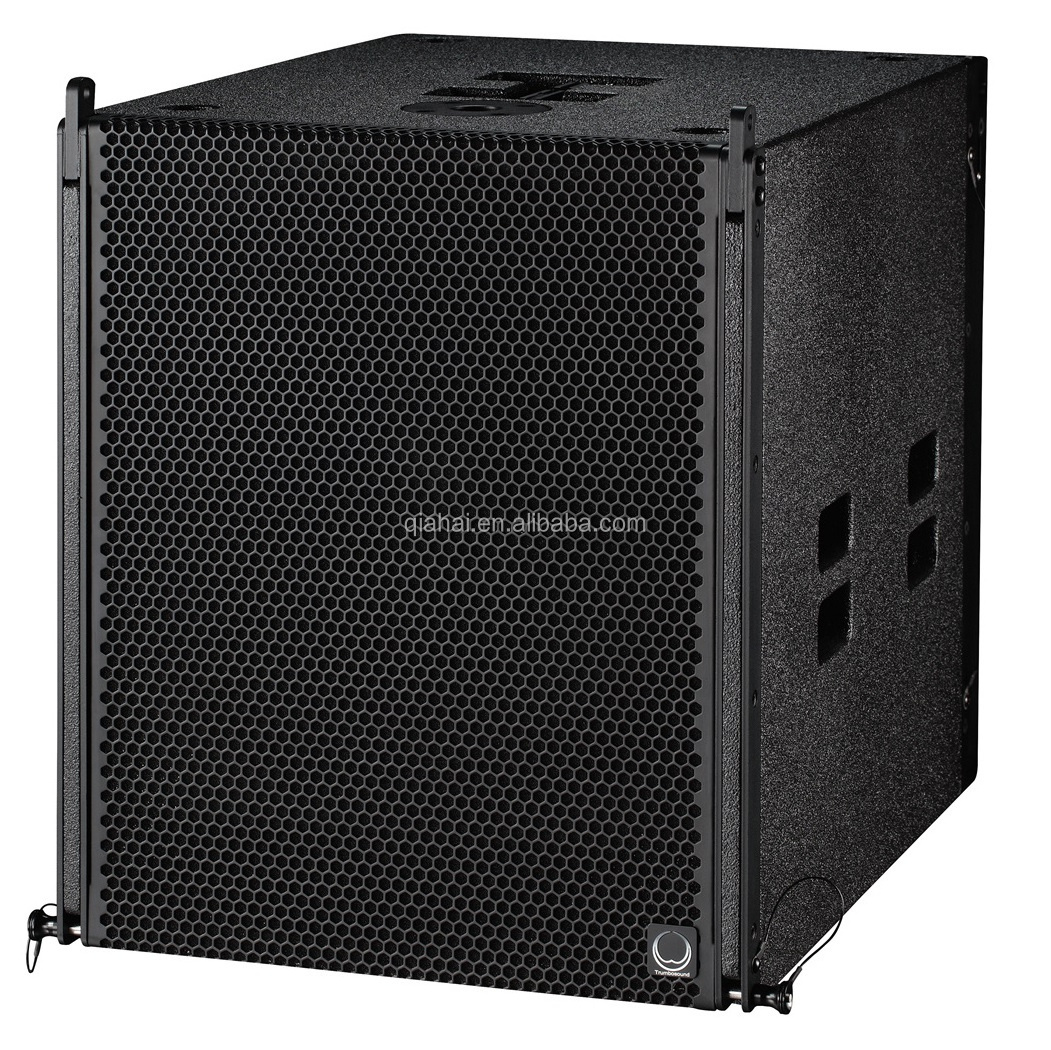

Main Specification of 18 inch subwoofer
|
|
|
|
|
||||
|
Model number
|
LA18B
|
|
|
|
||||
|
Rated Power:
|
800W
|
|
|
|
||||
|
Sensitivity:
|
100dB
|
|
|
|
||||
|
Frequency response:
|
35Hz - 300Hz
|
|
|
|
||||
|
Impedance:
|
8 Ohm
|
|
|
|
||||
|
SPL:
|
128dB /134dB
|
|
|
|
||||
|
LF Driver:
|
18 inch neodymium subwoofers (4 inch voice coil)
|
|
|
|
||||
|
Hanger:
|
Four-point suspension (adjustable)
|
|
|
|
||||
|
Gang socket:
|
NL4MP Four-pin socket - 2PCS
|
|
|
|
||||
|
Size:
|
68X58X50CM
|
|
|
|
||||
|
Net weight:
|
45KG
|
|
|
|
||||
|
Main Specification of 10 inch 2 way speaker
|
|
|
|
|
||||
|
Model number
|
LA10
|
|
|
|
||||
|
Rated Power:
|
HF:80W, LF:300W
|
|
|
|
||||
|
Sensitivity:
|
HF:103dB, LF:100dB
|
|
|
|
||||
|
Frequency response:
|
70Hz-18kHz
|
|
|
|
||||
|
Impedance:
|
HF:8 ohm, LF:8 ohm
|
|
|
|
||||
|
SPL:
|
HF:122/128 dB, LF:124/130 dB
|
|
|
|
||||
|
LF Driver:
|
1 x 10 inch neodymium carbon fiber woofer (3 inch voice coil)
|
|
|
|
||||
|
HF Driver:
|
1 x 3 inch neodymium tweeter (3 inch voice coil)
|
|
|
|
||||
|
Hanger:
|
Four-point suspension (adjustable)
|
|
|
|
||||
|
Gang socket:
|
NL4MP Four-pin socket - 2PCS, 2+2-HF，1+1-LF
|
|
|
|
||||
|
Size:
|
50X33X28CM
|
|
|
|
||||
|
Net weight::
|
17KG
|
|
|
|
||||
