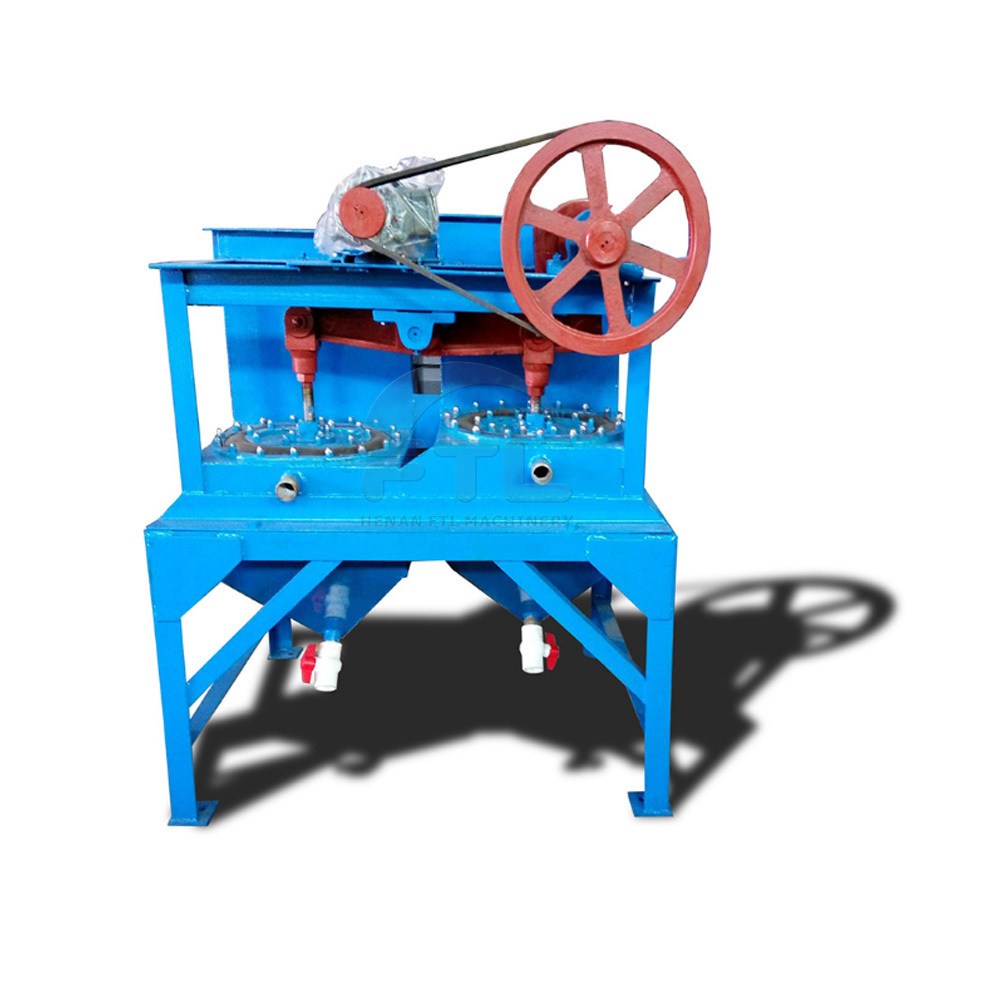

gravity Gold Ore Dressing down move jig machine

The FTL- LTA series of down moving jig machine can meet the different mineral processing needs of large, medium and small concentrators. The FTL- LTA series of down moving jigs has reasonable transmission structure and regulating device design, simple operation and maintenance, and remarkable mineral processing effect. It is a unique series in the diaphragm jigs.

Processing capacity: 5-60 T / h

Motor: 1.5-7.5kw

Application: concentrator

Mine: iron ore, copper mine, gold mine, tin mine, tungsten mine, lead zinc mine

Mine: tantalum niobium ore, mercury ore, fluorite ore, barite

The FTL- LTA series of down moving jig machine, bottom-moving jigging machine is an earlier type of jigging machine in my country’s mines. Because of its simple and compact structure, convenient adjustment, simple operation and maintenance, and remarkable beneficiation effect, the LTA series of bottom-moving jigs are unique among diaphragm jigs. Into a series. The bottom-moving jig LTA series is mainly used to process tungsten, tin, antimony, sand gold, manganese ore, lead-zinc ore, celestite, barite, fluorite ore, pyrite, limonite, hematite, etc. A variety of metallic and non-metallic minerals. It also has a very good effect on the treatment and recycling of various metal smelting slags such as silico-manganese slag, ferrochrome slag, and nickel-iron slag. In recent years, it has been obtained in the field of metal smelting slag recycling and utilization. It has a wide range of applications.

The FTL- LTA series of down moving jig machine, b ottom-moving jig LTA series is a single-row double-chamber, also known as a bottom-moving conical diaphragm jig. The downward-moving LTA jig uses water as the medium to sort according to the difference in the specific gravity (density) of minerals and gangues. The beneficiation principle is based on the theory of gravity beneficiation. The jig cycle curve produced by the normal operation of the LTA series jigging machine is sinusoidal and has the characteristics of uniform rising water flow. This series of jigging machines has the advantages of large processing capacity, high recovery rate, and continuous operation.

The FTL- LTA series of down moving jig machine, b ottom-moving jigging machine LTA series uses an eccentric link mechanism to make the rocking frame move up and down and drive the lower moving cone to move, thereby agitating the water flow to produce a periodic pulsating curve, realizing the effect of jigging and beneficiation. The LTA series jigging machine is a bottom drive, with compact structure, small floor space, and large processing capacity. It is widely used in the field of jigging and beneficiation.
