Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
XP-613
-
Model:
-
XP-613
-
nation:
-
China
-
Inside Dimension:
-
6900*3900*2600mm(L*W*H)
-
Outside Dimension:
-
7000*5200*3300mm(L*W*H)
-
Total Power:
-
9 KW (380V/220V,50HZ/60HZ,3 Phase)
Quick Details
-
Power:
-
9 KW (380V/220V,50HZ/60HZ,3 Phase)
-
External Size:
-
7000*5200*3300mm(L*W*H)
-
Internal Size:
-
6900*3900*2600mm(L*W*H)
-
Place of Origin:
-
China
-
Model Number:
-
XP-613
-
Model:
-
XP-613
-
nation:
-
China
-
Inside Dimension:
-
6900*3900*2600mm(L*W*H)
-
Outside Dimension:
-
7000*5200*3300mm(L*W*H)
-
Total Power:
-
9 KW (380V/220V,50HZ/60HZ,3 Phase)
|
Model
|
XP-613
|
|
Inside Dimension
|
6900*3900*2600mm(L*W*H)
|
|
Outside Dimension
|
7000*5200*3300mm(L*W*H)
|
|

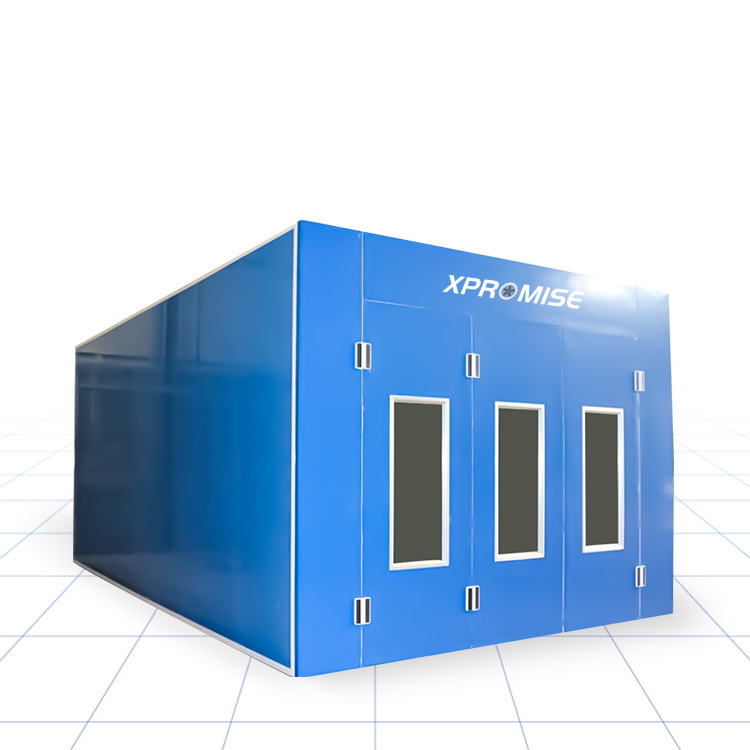

Main Door(W*H)
|
3 folds door，3000×2500mm，it is bending steel without cover frame. This type is very strong and beautiful. Also equipped with
Handle & Lock |
|
Personal Door
|
1fold，650*2000mm(W*H). Equipped with Handle & Anti-Explosion Lock
|
|
Wall Panels
|
1. High quality double construction insulation EPS panel thickness：50mm
2. Galvanized steel roof panel |
|
Basement and Floor
|
1. Galvanized steel assemble，Full metal foundation，height is 280mm
2. Two rows flat steel Grilles (galvanized) 3. Three rows metal non-slip Diamond plates（galvanized and painted） 4. 2 pieces of Ramps, each size 620*2000mm (W*L)，diamond plate construction |
|
Lighting System
|
1. LED Ceiling lights：8units*4pieces=32pieces*16W
2. LED Side lights：6units*2 pieces=12pieces*16W |
|
Generator Setting Type
|
1. Side upper intake air，quadrate steel frame，coated steel，inside rock-wool insulation
2. Pneumatic damper actuators from the spraying to baking cycle |
|
Inlet Fan
|
2*3KW YDW double-intake centrifugal fans，total air capacity：20000m³/h
|
|
Exhaust Fan
|
1×5.5KW YDW double-intake centrifugal fans, total air capacity:12500m³/h
|
|
Heating System
|
1. 1set：RIELLO G10 diesel burner，heating productivity：100000Kcal/h
2. Adopt high efficient heat-resistant stainless steel as cycling heat exchanger 3. 8-10 minutes (from 20 to 60º C) under baking status，max baking temperature is 80℃ |
|
Filter System
|
1. The primary filter can capture granules larger than 10μm，filtering rate＞83%
2. Ceiling filter can capture granules bigger than 4μm，filtering rate＞98% 3. Floor filter( fiberglass paint-stop filter )，filtering rate＞70% |
|
Control System
|
Lighting switch，spraying，heat spraying，baking，temperature controller，time setting，emergency stop
|
|
Total Power
|
9 KW (380V/220V，50HZ/60HZ，3 Phase)
|
1. who are we?
We are based in Shandong, China, start from 2018,sell to Africa(20.00%),Southeast Asia(20.00%),South America(20.00%),Mid
East(20.00%),Northern Europe(10.00%),North America(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
wheel alignment,car lift,tire changer,wheel balancer,car frame machine
4. why should you buy from us not from other suppliers?
We are a professional manufacturer with 16 years of experience in design and independent research and development, independent
production, advanced technology, reliable quality, service-oriented, and products sales all over the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
