Quick Details
-
Operation Records:
-
60 pieces
-
Blacklist:
-
Blacklist
-
Suitable for:
-
Widely Usage
-
Unlock way:
-
Electronic Key
-
Size:
-
27mm*5mm
-
Key:
-
electronic key
-
Protection grade:
-
IP67
-
Durable years:
-
Durable years
-
Structure:
-
Double bead double spring
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Vanmalock
-
Model Number:
-
WM-2000C-MS840
-
Operation Records:
-
60 pieces
-
Blacklist:
-
Blacklist
-
Suitable for:
-
Widely Usage
-
Unlock way:
-
Electronic Key
-
Size:
-
27mm*5mm
-
Key:
-
electronic key
-
Protection grade:
-
IP67
-
Durable years:
-
Durable years
-
Structure:
-
Double bead double spring
Vanmalock consists of three elements: electronic keys, electronic locks and a software system.
* The electronic key cannot be copied and can be programmed.
* The electronic lock can withstand harsh outdoor environments and is IP68 rated.
* The cloud infrastructure of the software system allows you to manage access control rights at any time, regardless of location.
It can be incorporated into almost any place where a lock can be installed, such as gates, server racks, file cabinets, meterboxes, etc. All without cables or power to the lock.
* The electronic key cannot be copied and can be programmed.
* The electronic lock can withstand harsh outdoor environments and is IP68 rated.
* The cloud infrastructure of the software system allows you to manage access control rights at any time, regardless of location.
It can be incorporated into almost any place where a lock can be installed, such as gates, server racks, file cabinets, meterboxes, etc. All without cables or power to the lock.
A passive electronic lock, powered by keys, is easy to install and has no need for wiring. Additionally, it uses AES256 encryption technology to ensure resistance against hacking attempts.

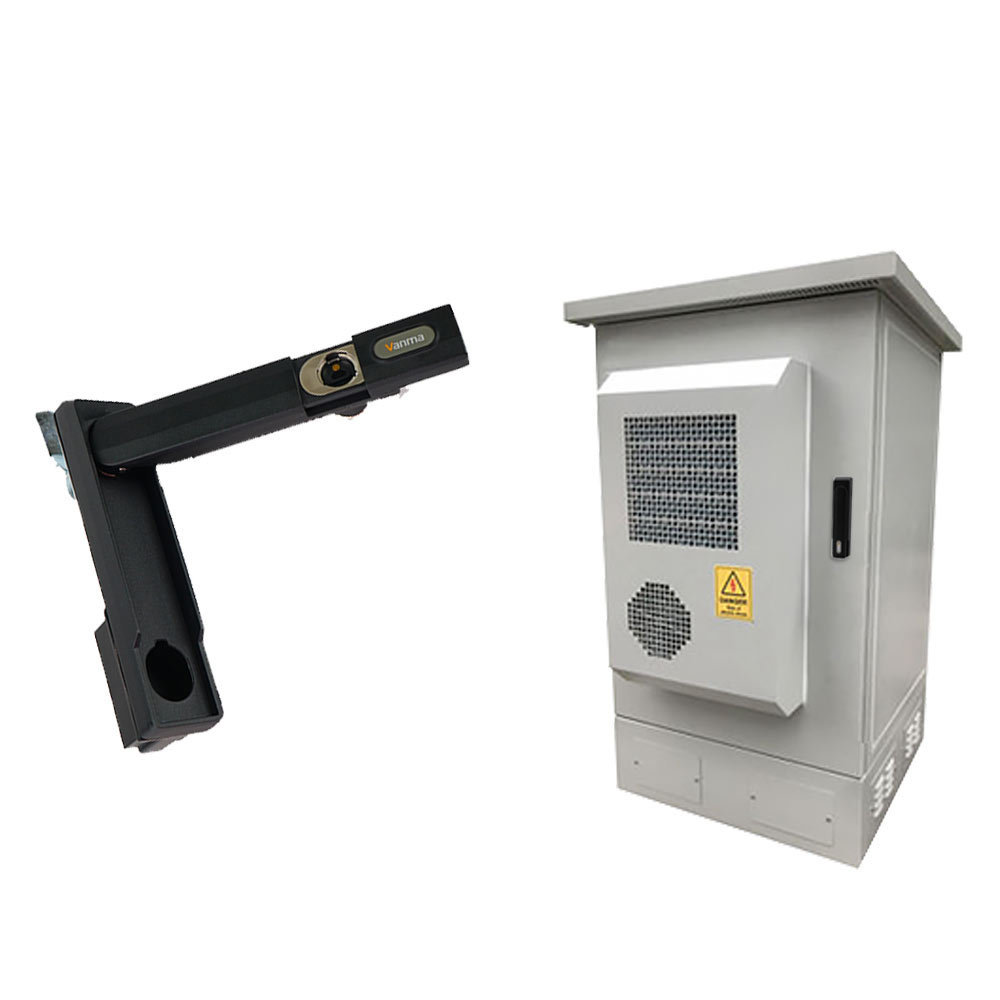

Smart passive
electron
ic handle lock
Vanma® smart handle lock, built-in smart passive electronic lock cylinder, switch lock powered by smart electronic key; adopt strict digital encryption and wireless communication technology to realize anti-technical unlocking; adopt patented technology to truly judge the switch lock status and ensure the switch Locks are strictly managed.
Specification
|
Product Model
|
WM-2000C-B01
|
|
Lock body material
|
zinc alloy
|
|
Surface treatment
|
electroplating
|
|
Electronic lock cylinder
|
multiple protection against overvoltage and overcurrent static electricity
|
|
Number of blacklists
|
100 keys
|
|
Switch records
|
60
|
|
Operating Environment
|
Temperature (-40° to 70°) Humidity (20% to 97%)
|
|
Protection class
|
IP67
|
|
Key model
|
WM-2000C-K01, WM-2000C-BK01, WM-2000C-FK02, WM-2000C-FBK02
|
|
Function
|
Data Transfer(Basic),Remote Authorization,Fingerprint Identification
|
|
Working status
|
voice, three-color RGB light prompt
|
|
Storage capacity
|
60,000 pieces
|
|
Battery capacity
|
600mAh (One charge for unlock 1000 times)
|
|
Charging time
|
2 hours
|
|
Communication interface
|
Standard Type-C
|
|
Electrostatic protection
|
8KV contact electrostatic /15KV non-contact electrostatic protection
|
|
Operating Environment
|
Temperature(-20℃to70℃)：Humidity(20%to97%)
|
|
Protection level
|
IP65
|
Working Flow
System Structure
The system consists of four parts: smart passive electronic lock, smart fingerprint Blue-tooth key, mobile phone APP, and system software. The smart passive electronic lock completes mechanical actions and data storage; the smart fingerprint Bluetooth key is for personnel identification, power supply and data transmission; the APP communicates with the smart fingerprint Bluetooth key to remote authorization and data upload operation.
Managers can manage locks, keys, and staff information through management software. It is clear who unlocks the lock when and where, and traced the responsibility to the individual.
If the lock is not locked within the limited time, the APP will automatically push an alarm.
If the lock is not locked within the limited time, the APP will automatically push an alarm.
Integrated management software with your own system. Such as Bank system, Railway management system, Telecom system, etc
The shape and size of lock body and lock beam can be customized according to your needs.
