* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1640*992*35mm
-
Panel Efficiency:
-
18.3%
-
Type:
-
Standard Solar Panel
-
Name:
-

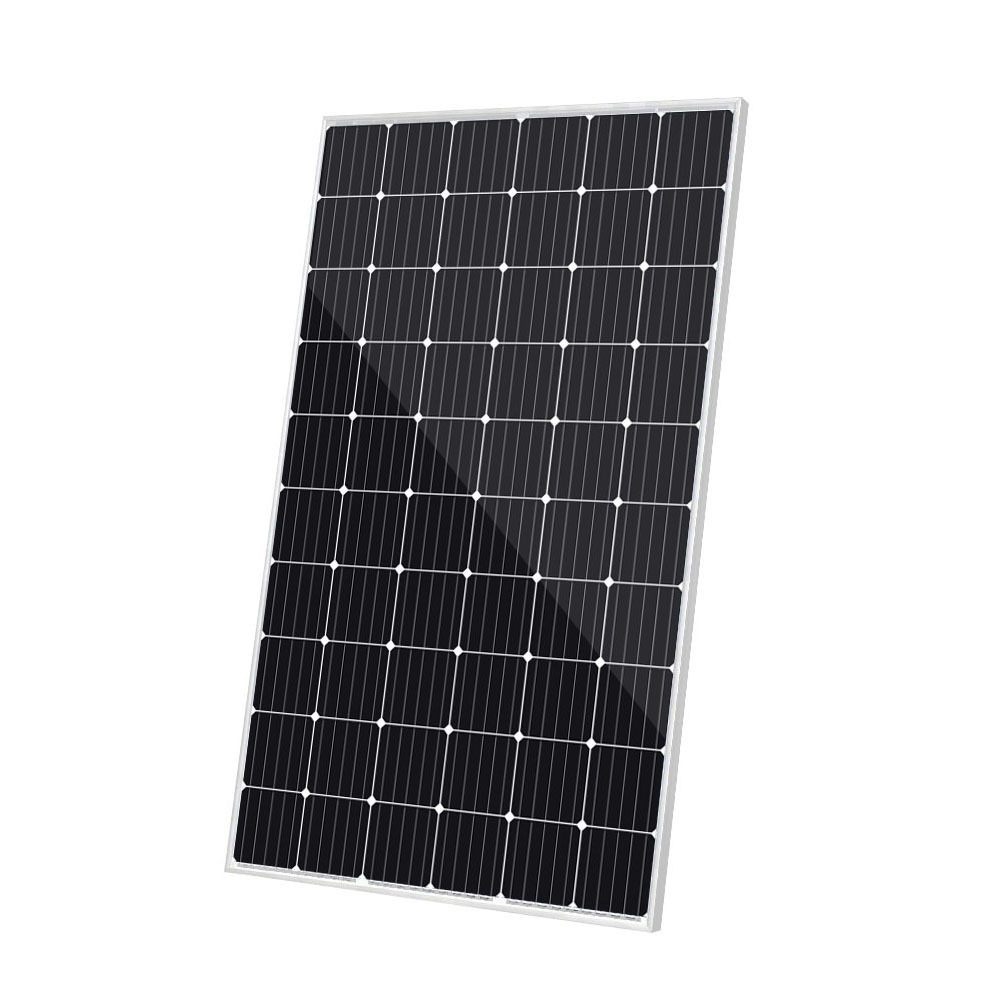

300w solar panel monocrystalline
-
Material:
-
monocrystalline silicon
-
Solar cell:
-
Mono 156*156 Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP67 Rated Waterproof
-
Warranty:
-
25 Years Output Power Guarantee
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM60-300/PR
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1640*992*35mm
-
Panel Efficiency:
-
18.3%
-
Type:
-
Standard Solar Panel
-
Name:
-
300w solar panel monocrystalline
-
Material:
-
monocrystalline silicon
-
Solar cell:
-
Mono 156*156 Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP67 Rated Waterproof
-
Warranty:
-
25 Years Output Power Guarantee
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
Product Description
|
Model
|
GSM60-305/PR
|
GSM60-310/PR
|
GSM60-315/PR
|
GSM60-320/PR
|
|||
|
Rated Maximum Power(Pmax) [W]
|
305
|
310
|
315
|
320
|
|||
|
Open Circuit Voltage(Voc) [V]
|
40.05
|
40.30
|
40.53
|
40.8
|
|||
|
Maximum Power Voltage(Vmp) [V]
|
32.57
|
32.84
|
33.16
|
33.48
|
|||
|
Short Circuit Current(Isc) [A]
|
9.85
|
9.91
|
9.98
|
10.05
|
|||
|
Maximum Power Current(Imp) [A]
|
9.37
|
9.44
|
9.50
|
9.56
|
|||
|
Module Efficiency [%]
|
18.7
|
19.0
|
19.3
|
19.6
|
|||
|
Power Tolerance
|
0~+5W
|
|
|
|
|||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.060%/℃
|
|
|
|
|||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.300%/℃
|
|
|
|
|||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.380%/℃
|
|
|
|
|||
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
|
|
|
|||
Grade A Materials
Tempered Glass
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
Solar Cells
* A Grade Trina Solar Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
Solar Juction Box
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealabilityPV Connector
* 4mm2 Qualified cable with
PV Connector
* 500N Tensile Strength
Factory
Why Choose Us ?
Packing & Transport
5 or 7 layers Corrugated Cartons , reinforced wooden box with pallet.
All-round protection your products during transportation.
Make sure all solar panels safety .
|
Container(
60Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
30
|
30
|
30
|
|
PCS/Container
|
400
|
840
|
924
|
|
Container(
72Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
27
|
27
|
27
|
|
PCS/Container
|
270
|
648
|
696
|
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
Payment & Warranty
Payment:
You can choose a convenient payment term according to your local condition, and we accept Telegraphic Transfer, Western Union, L/C at sight, and on-line payment.
If you are worry about your money safety, we recommend Alibaba Trade Assurance Payment, which can protect your money until you receive your products.
More info please click the below picture:
Solar Panels Warranty:
Damage in transit (CNF Terms), we will make up for you free without any reason.
