Quick Details
-
Brand Name:
-
Huijue, Huijue Energy
-
Model Number:
-
HJ-Sopan, 500w/550w
-
Place of Origin:
-
Jiangsu, China, China
-
Panel Dimensions:
-
1956x1310x45mm, 1956*1310*45 mm
-
Certificate:
-
ISO9001; CE, CE/ISO9001
-
Product name:
-

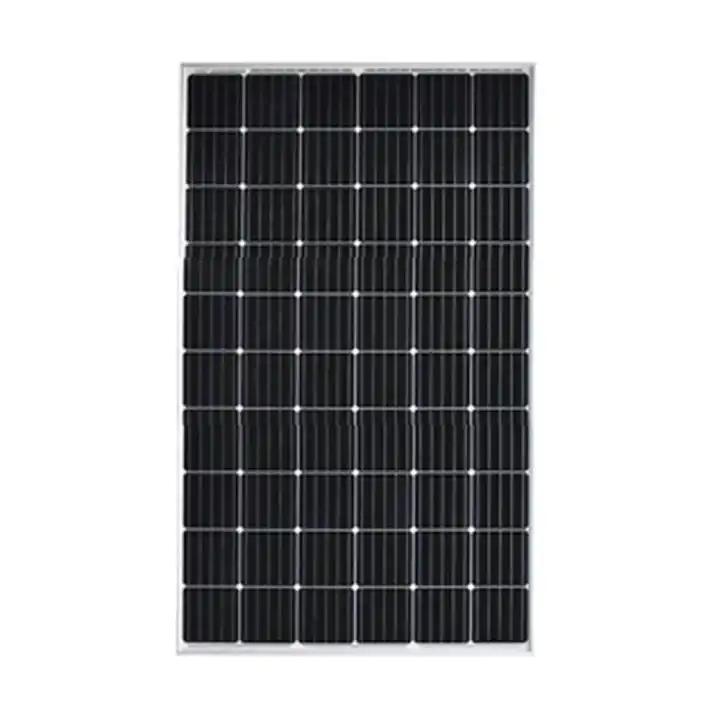

Mono Solar Panel
-
Weight:
-
21kg
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC, Half Cell, MWT, IBC, HJT
-
Warranty:
-
3years
-
Brand Name:
-
Huijue, Huijue Energy
-
Model Number:
-
HJ-Sopan, 500w/550w
-
Place of Origin:
-
Jiangsu, China, China
-
Panel Dimensions:
-
1956x1310x45mm, 1956*1310*45 mm
-
Certificate:
-
ISO9001; CE, CE/ISO9001
-
Product name:
-
Mono Solar Panel
-
Weight:
-
21kg
Product Paramenters
|
Rated Maximum Power(Pmax) [W]
|
545
|
550
|
555
|
560
|
|||
|
Open Circuit Voltage(Voc) [V]
|
49.67
|
49.80
|
49.93
|
50.06
|
|||
|
Maximum Power Voltage(Vmp) [V]
|
41.15
|
41.28
|
41.41
|
41.54
|
|||
|
Short Circuit Current(Isc) [A]
|
13.93
|
14.01
|
14.09
|
14.17
|
|||
|
Maximum Power Current(Imp) [A]
|
13.24
|
13.32
|
13.40
|
13.48
|
|||
|
Module Efficiency [%]
|
21.2
|
21.4
|
21.6
|
21.8
|
|||
|
Power Tolerance
|
0~+5W
|
|
|
|
|||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.048%/℃
|
|
|
|
|||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.27%/℃
|
|
|
|
|||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.35%/℃
|
|
|
|
|||
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
|
|
|
|||
Products Description
Advantage
Product Details
Actual pictures
PERC Solar Cells.
Perc 182mm size solar cell
Grade A quality
More than 21% efficiency
10 Bus Bar, Anti PID
More than 21% efficiency
10 Bus Bar, Anti PID
Junction Box.
IP68 water proof junction box
Silver or Black frame
Max DC 1500V
25 Years warranty
Max DC 1500V
25 Years warranty
Two Installation Methods
Connection diagram
Multi-scenario Application
household electricity
Aquaculture - fish steak desert island
desert uninhabited area
forest fire prevention
prairie pasture
Street lights - monitoring lighting
surveillance system
customs border area
