Quick Details
-
Max. Turned Length (mm):
-
1000 mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sumore
-
Model Number:
-
SP2110
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1940X750X1400MM
-
Weight (KG):
-
500 KG
-
Certificate:
-
CE
-
precision:
-
high
-
price:
-
competitive
-
quality:
-
high
-
brand:
-
SUMORE
-
name:
-
300mm swing lathe
-
model:
-
SP2110
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
38mm or 51mm
-
Max. Turned Length (mm):
-
1000 mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sumore
-
Model Number:
-
SP2110
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1940X750X1400MM
-
Weight (KG):
-
500 KG
-
Certificate:
-
CE
-
precision:
-
high
-
price:
-
competitive
-
quality:
-
high
-
brand:
-
SUMORE
-
name:
-
300mm swing lathe
-
model:
-
SP2110
SUMORE
Twenty years of experience in industry and trade integration.
The fastest delivery cycle in the industry.
100% response rate of customer service online at any time.
<view more>
Product Description

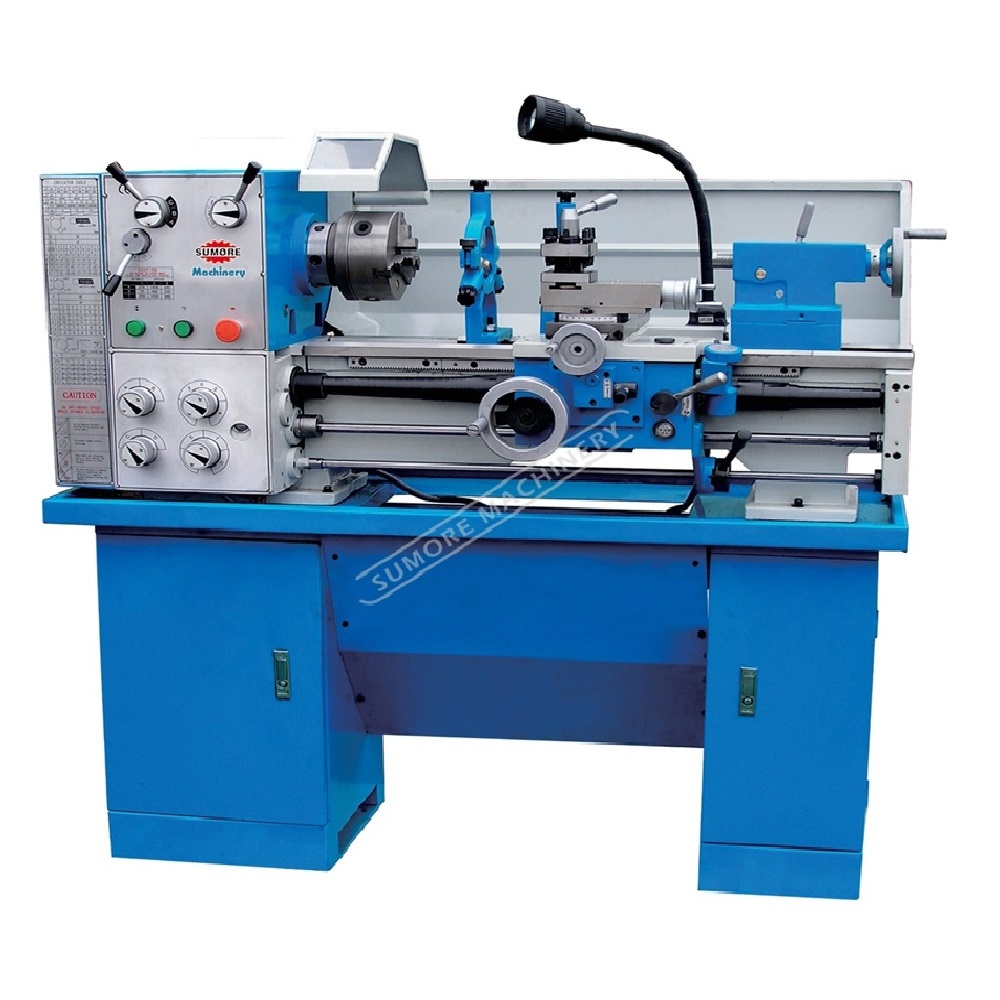

HOT!! 300mm swing all gear box lathe SP2110/CQ6232/6230
SP2110 Gap bed metal precision turning lathe machine with gear head
Quick Detail:
Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 750/910/1000mm
Swing over bed: 300/320mm
Spindle bore: 38/51mm
Description:
As one of our HOT selling model, SUMORE SP2110 gap bed lathe (gear head lathe, metal turning lathe, precision lathe, lathe machine ) has below features:
1. Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of
different kinds of knife and a variety of pitch.
2. High accuracy mechanism ensures it to break almost all difficulties during work easily: Spindle with precision roller bearing and headstock gears with high quality ground and hardened steel.
3. With mountains and two moment rail, precision ground and supersonic frequency quenching hardened bed ways, high rigidity, high accuracy, good abrasion resistance.
Not only for common processing work, like turning, end-face, taper or screws, but also on special
occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning.
Quick Detail:
Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 750/910/1000mm
Swing over bed: 300/320mm
Spindle bore: 38/51mm
Description:
As one of our HOT selling model, SUMORE SP2110 gap bed lathe (gear head lathe, metal turning lathe, precision lathe, lathe machine ) has below features:
1. Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of
different kinds of knife and a variety of pitch.
2. High accuracy mechanism ensures it to break almost all difficulties during work easily: Spindle with precision roller bearing and headstock gears with high quality ground and hardened steel.
3. With mountains and two moment rail, precision ground and supersonic frequency quenching hardened bed ways, high rigidity, high accuracy, good abrasion resistance.
Not only for common processing work, like turning, end-face, taper or screws, but also on special
occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning.
Specification
|
Model
|
SP2110-I
|
SP2110-II
|
|
|
Max. Swing over bed
|
300mm
|
320mm
|
|
|
Max. Swing over cross slide
|
180 mm
|
198mm
|
|
|
Distance between centers
|
750/910/ 1000mm
|
|
|
|
Spindle bore diameter
|
38mm
|
|
|
|
Taper of spindle bore
|
MT.5
|
|
|
|
Range of spindle Speed
|
65~1400 (65-1810) rpm
|
|
|
|
Range of Longitudinal feeds
|
0.079~1.291mm/rev
|
|
|
|
Range of cross feeds
|
0.017~0.276 mm/rev
|
|
|
|
Range of Metric threads
|
0.4~7 mm
|
|
|
|
Range of inch threads
|
4-60TPI
|
|
|
|
Max. Travel of tailstock quill
|
100mm
|
|
|
|
Taper of tailstock quill bore
|
MT.3
|
|
|
|
Power of main drive motor
|
1.1 or 1.5kW
|
|
|
|
Packing size
|
1480/1680/1940x750x1400mm
|
|
|
|
Net weight
|
500/540/620 kg
|
|
|
|
Gross weight
|
550/590/670 kg
|
|
|
|
Standard Accessories
|
Optional Accessories
|
|
3-jaw chuck
|
Foot Braker
|
|
4-jaw Chuck
|
Coolant System
|
|
Face Plate
|
Work Light
|
|
Steady Rest
|
Thread Chasing Dial
|
|
Follow Rest
|
Tailstock Chuck and Arbour
|
|
Change Gear Set
|
Live Center
|
|
Splash Guard
|
2 axis DRO
|
|
Stand
|
3 axis DRO
|
|
Dead Center
|
TiN Coated Turning Cutting 7pcs set
|
|
Oil Tray
|
TiN Coated Turning Cutting 9pcs set
|
|
Oil Gun
|
5pcs Normal Turning Cutter
|
|
Manual & Parts List
|
6pcs Normal Turning Cutter
|
|
|
11pcs Normal Turning Cutter
|
|
|
Chuck Guard
|
|
|
Lead Screw Guard
|
|
|
Tool Post Guard
|
|
|
Quick Change Tool Post US or Euro Type
|
|
|
Spindle with variable speed
|
|
|
Single phase
|
