Quick Details
-
Dimension(L*W*H):
-
2500*1200*1100mm
-
Weight:
-
1250 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Depth:
-
30m, 30m
-
Mobility:
-
Crawler walking
-
Product name:
-
Small crawler solar pole drilling rig
-
Application:
-
Small crawler solar pole drilling rig
-
Keyword:
-
Small crawler solar pole drilling rig
-
Drilling method:
-
Percussive
-
Function:
-
Solar pole drilling rig
-
Borehole diameter:
-
100-350mm
-
Dimensinons L*W*H:
-
2500*1200*1100mm
-
One-time push length::
-
2m
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Qiaochu, Qiao chu
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2500*1200*1100mm
-
Weight:
-
1250 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Depth:
-
30m, 30m
-
Mobility:
-
Crawler walking
-
Product name:
-
Small crawler solar pole drilling rig
-
Application:
-
Small crawler solar pole drilling rig
-
Keyword:
-
Small crawler solar pole drilling rig
-
Drilling method:
-
Percussive
-
Function:
-
Solar pole drilling rig
-
Borehole diameter:
-
100-350mm
-
Dimensinons L*W*H:
-
2500*1200*1100mm
-
One-time push length::
-
2m
TO CUSTOMERS
1. Recruiting agents, OA payment；
2. 24 months free maintenance service;
3. Free spare parts for 24 months；
4. Out-of-warranty service fee is 50% off；
5. Extended warranty for 1500 hours;
6. Accept OEM/ODM customization；
2. 24 months free maintenance service;
3. Free spare parts for 24 months；
4. Out-of-warranty service fee is 50% off；
5. Extended warranty for 1500 hours;
6. Accept OEM/ODM customization；
PRODUCTS DESCRIPTION
Introduction of
DT-33B Pneumatic DTH borehole drilling machine
Applications:
This small crawler down the hole drill is modified and upgraded on the basis of YQ down the hole drill, which is more convenient to walk and faster to drill.
1. Mine tunnel reinforcement: Drilling for the general exploration and investigation of solid mineral deposit, engineering
geotectonig survey and concrete structure inspection holes.
2. Mountain drilling: Diamond drill bit,alloy drill bit and steel roller drill bit and so on are available for drilling according
to different geological structures.
Features:
1. When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth my not exceed 110% of that drilled in each hole.The maximum allowable hole diameter is 150mm.
2. With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
3. The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.
4. A hole bottom pressure gauge is mounted indicating the pressure in order to control the staus inside the hole
5. Compact structure, small volume, lightweight, easy transportation and suitable for the operations in plains or mountain areas.
This small crawler down the hole drill is modified and upgraded on the basis of YQ down the hole drill, which is more convenient to walk and faster to drill.
1. Mine tunnel reinforcement: Drilling for the general exploration and investigation of solid mineral deposit, engineering
geotectonig survey and concrete structure inspection holes.
2. Mountain drilling: Diamond drill bit,alloy drill bit and steel roller drill bit and so on are available for drilling according
to different geological structures.
Features:
1. When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth my not exceed 110% of that drilled in each hole.The maximum allowable hole diameter is 150mm.
2. With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
3. The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.
4. A hole bottom pressure gauge is mounted indicating the pressure in order to control the staus inside the hole
5. Compact structure, small volume, lightweight, easy transportation and suitable for the operations in plains or mountain areas.
PRODUCT SPECIFICATIONS
|
Model
|
DT-33B
|
|
|
Drill capacity(Spiral drilling work)
|
|
|
|
Diameter
|
100-220mm
|
|
|
Depth(m)
|
3m
|
|
|
Drill capacity(Pneumatic drilling work)
|
|
|
|
Diameter
|
75-225mm
|
|
|
Depth(m)
|
30m
|
|
|
Hydraulic system
|
|
|
|
Working Pressure
|
1.45-2.5MPA
|
|
|
Rated flow(L/min)
|
168
|
|
|
Cooling type
|
Air cooling + Water cooling
|
|
|
Engine
|
|
|
|
Brand
|
Changchai
|
|
|
Rated power(KW)
|
9KW
|
|
|
Power head
|
|
|
|
Maximum torque(Nm)
|
2500-3500N.m
|
|
|
Maximum rotary speed(rpm)
|
60-80rpm/min
|
|
|
Once-time Advance Length
|
2.5m
|
|
|
Drilling tower
|
|
|
|
Type
|
Ground contact integrated drilling tower
|
|
|
Drilling angle(°)
|
0-90
|
|
|
Lifting force(T)
|
14
|
|
|
Feeding force(T)
|
2
|
|
|
Drill rod
|
|
|
|
Diameter of Drill Rod
|
60/76/89 mm
|
|
|
Length of Drill Rod
|
2m
|
|
|
Air Consumption
|
17-33m³/min
|
|
|
Transport dimension(mm)
|
2500*1200*1100mm
|
|
|
Weight(kg)
|
1400kg
|
|
|
The applicable geology is a hard rock layer.
If the geology is a loose rock layer, please use follow-pipe drilling to prevent the occurrence of hole collapse. |
|
|
|
Drilling Mode
|
Double Hydraulic Motor Rotor Propulsion Impactor Down The Hole Hammer or Spiral Drilling Work
|
|
|
Impactor
|
China Famous Brand New Diamond Middle and High Pressure Series Impactor
|
|
|
Optional Accessories
|
1.1000 hours Spare Parts
2.Air compressor
3.Electric welding machine 4.Foam Pump |
|
DETAILS IMAGES

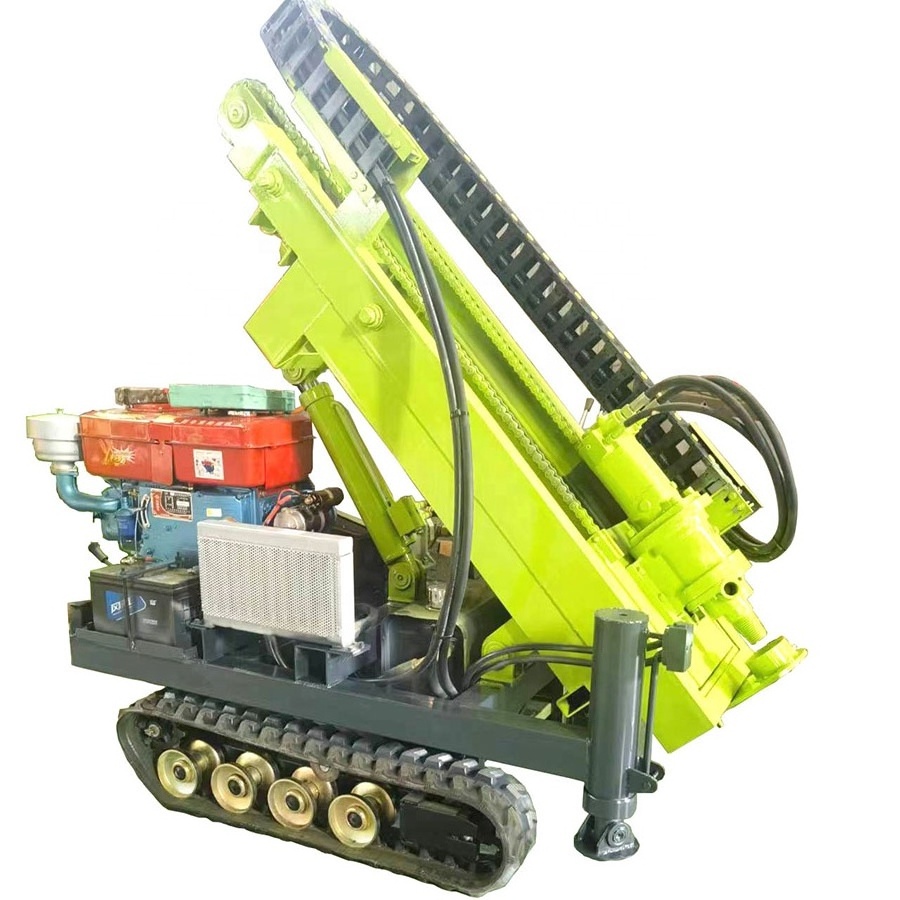

Small crawler spiral drilling rig small crawler water well drilling rig
Hydraulic tower
Hydraulic tower stroke 2.5 meter
Ratory power head
Large torque
Diesel engine
9kw Changchai diesel engine Lifetime warranty
Chain Type Hydraulic Pipeline
Chain Type,
Safe and durable!
