Quick Details
-
Model Number:
-
TB388 without battery
-
Max. Current:
-
20A, 20A
-
Full time range:
-
24 hours
-
Battery working reserve:
-
150 hours
-
Interval times:
-
48 times/Day
-
Mini. Interval:
-
30 minute
-
Mounting:
-
DIN rail
-
Certificate:
-
CE
-
Guarantee:
-
18 Months
Quick Details
-
Max. Voltage:
-
240VAC, 100-250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
TB388 without battery
-
Max. Current:
-
20A, 20A
-
Full time range:
-
24 hours
-
Battery working reserve:
-
150 hours
-
Interval times:
-
48 times/Day
-
Mini. Interval:
-
30 minute
-
Mounting:
-
DIN rail
-
Certificate:
-
CE
-
Guarantee:
-
18 Months
············This link price is only for
TB388 without battery···········
Product Description
General

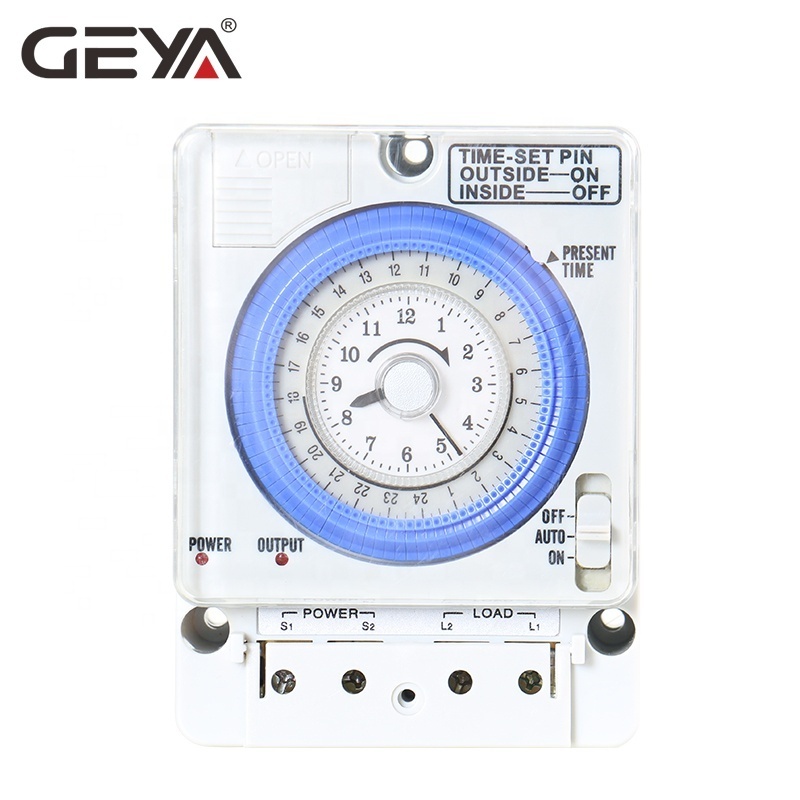

TB388
Timer Switch is according to the time set by the user,automatically turn on and turn off the variety of electrical equipment.Control object can lights,light boxes,neon signs,production equipment, agriculture,aquaculture,warehouse exhaust dehumidifier automatically preheat optioml control products,such as radio and television equipment.
Technical Data
- Analogue time switch
- 1 channel
- Switching status display
- Daily program
- With power reserve (Nickel metal hydride battery replacement )
- 96 switching segments
- Quartz controlled
- Shortest switching time: 15 minutes
- Clock hands for time display
- Simple summer/winter time correction
- Switch construction:SPST
Specification
|
Operating voltage
|
110-230 V AC
|
|
Frequency
|
50-60 Hz
|
|
Width
|
5 modules
|
|
Installation type
|
DIN-rail
|
|
Program
|
Daily program
|
|
Power reserve
|
300 hours
|
|
Max. switching capacity at 250 V AC, cos φ = 1
|
20 A
|
|
Max. switching capacity at 250 V AC, cos φ = 0.6
|
12 A
|
|
Shortest switching time
|
15 min
|
|
Programmable every
|
15 min
|
|
Time accuracy
|
≤ ± 2 s/day(Quartz)
|
|
Power consumption
|
3 VA
|
|
Type of protection
|
IP 20
|
|
Protection class
|
II in accordance with EN 60 730-1
|
|
Ambient temperature
|
–10 °C ~ +50 °C
|
