Quick Details
-
Electrical life:
-
200,000 times min.
-
Machanical life:
-
10,000,000 times min.
-
Contact type:
-
SPDT
-
Actuator 1:
-
push plunger limit switch
-
Actuator 2:
-
lever type limit switch
-
Actuator 3:
-
roller lever type limit switch
-
Color:
-
Grey
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Certificate:
-
CCC; CE
-
Electrical life:
-
200,000 times min.
-
Machanical life:
-
10,000,000 times min.
-
Contact type:
-
SPDT
-
Actuator 1:
-
push plunger limit switch
-
Actuator 2:
-
lever type limit switch
-
Actuator 3:
-
roller lever type limit switch
-
Color:
-
Grey
high temperature resistance limit switch
RL7 series limit switch
Rated value and characteristics of limit switch RL7 series
|
Rated working current |
10A 125V, 250VAC; 0.4A 115VDC(resistor load) |
||
|
Contact type |
Contact resistance (initial value ) |
Under 15 mΩ (not include copper resistance ) |
|
|
Contact material |
Sliver cadmium oxide contact(if no need cadmium,[according with ROSH certificate ] can customize |
||
|
Electrical |
Insulation resistance (initial value) |
100 mΩ min. (use the DC500V insulation resistance test) |
|
|
Dielectric strength |
Between Non-continuous terminals (initial value): 1500V 50/60HZ for 1 min Between dead metal parts and each terminal: 2000V 50/60HZ for 1min Between ground and each terminal: 2000V 50HZ for 1 min
|
||
|
Mechanical |
Shock resistance |
In the free position |
Less than 98m/s2(10G) |
|
In the full operating position |
Less than 294m./s2(30G) |
||
|
Vibration resistance |
1.5mm double amplitude 10-55HZ (contact gap is under 1 ms) |
||
|
Expected Life |
Mechanical |
10,000,000 operations min. (on/off frequency 50 operations/min) |
|
|
Electrical |
200,000 operations min.(on/off frequency is 20 operations/min) |
||
|
Using condition |
Ambient temperature /Ambient humidity |
-20~+60 (with no icing), 95%RH max. (at +5~20) |
|
|
The max on/off frequency |
120 operations/min |
||
RL8 limit switches
Rated value and characteristics
|
Rated working current |
5A 125,250VAC; 0.4A 125VDC(..) |
||
|
Contact type |
Contact resistance (initial value ) |
Under 15 mΩ (no include copper resistance ) |
|
|
Contact material |
Sliver cadmium oxide contact(if no need cadmium,[according with ROSH certificate ] can customize |
||
|
Electrical |
Insulation resistance (initial value) |
100 mΩ min. (use the DC500V insulation resistance test) |
|
|
Dielectric strength |
Between Non-continuous terminals (initial value): 1500V 50/60HZ for 1 min Between non voltage metal parts and each terminal: 2000V 50/60HZ for 1min Between ground and each terminal: 2000V 50HZ for 1 min
|
||
|
Mechanical |
Shock resistance |
In the free position |
Less than 98m/s2(10G) |
|
In the full operating position |
Less than 294m./s2(30G) |
||
|
Vibration resistance |
1.5mm double amplitude 10-55HZ |
||
|
Expected Life |
Mechanical |
10,000,000 operations min. (on/off frequency 120 operations/min) |
|
|
Electrical |
300,000 operations min. (rated load ), electromagnetism contactor FC-100(AC200V) load ; 5,000,000 operations min. |
||
|
Using condition |
Ambient temperature /Ambient humidity |
-20~+60 95%RH max. (at +5~20) |
|
|
The max on/off frequency |
120 operations/min |
||
RZL enclosed limit switch
RZL Rated data and performance
|
Item Type |
RZL. Rated current: 15A, 250VAC |
||||||
|
Operating speed |
0.1mm~1m/secs (pin plunge type) |
||||||
|
Operating frequency |
Mechanical |
240 operations/min |
|||||
|
Electrical |
20 operations/min |
||||||
|
Insulation resistance |
Above 100 mΩ(use the DC500V insulation resistance test) |
||||||
|
Contact resistance (initial value ) |
The max 15 mΩ |
||||||
|
Dielectric strength |
Between Non-connect terminal : AC1000V 50/60HZ for 1 min |
||||||
|
Between non voltage metal parts and each terminal , ground and each terminal : AC2000V 50/60HZ for 1min |
|||||||
|
Vibration resistance(pin plunger type) |
Malfunction |
1.5mm double amplitude; 10-55HZ (contact gap is under 1ms ) |
|||||
|
Shock resistance |
Pin plunger type |
max 300m/s2 (contact gap is under 1ms ) |
|||||
|
Others |
max 50m/s2 (contact gap is under 1ms ) |
||||||
|
Life |
Mechanical |
||||||
|
5,000,000 operations above (on/off frequency is 60 operations/min)( order OT) |
|||||||
|
Electrical (resistive load) |
500,000operations min. (on/off frequency is 20 operations/min ) |
||||||
|
Ambient operation temperature & Ambient humidity |
-25~+80(with no icing ), 85%RH max. (at +5~35) |
||||||
|
Contact material |
AgNi alloy ; AgCdO alloy (not in the ROHS order |
||||||

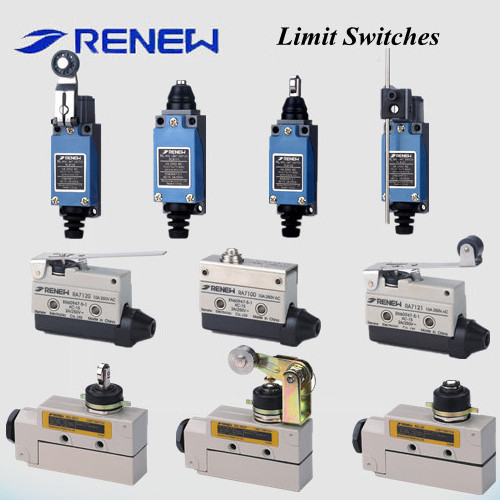

Our company specialized in manufacturing micro switches, limit switches, toggle switches. Main products are show in pictures as below:
