- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Spark
-
Motor Power:
-
2*11kw
-
Charging Capacity:
-
1600L
-
Reclaiming capacity:
-
1000L
-
Speed of Mixing Drum:
-
14RPM
-
Water Supply Mode:
-
Water pump/time relay
-
Working Cycle Period:
-
40s
-
Discharge Way:
-
Rotary drum discharging
-
Outline Dimension:
-
4500*2200*2900mm
-
Marketing Type:
-
Lower Cost Concrete Mixer
-
Weight (KG):
-
3500 kg
-
Product name:
-
Construction Equipment Concrete Mixer
-
Power type:
-
Electric Motor Cement Mixer
-
Type:
-
Electric Drum Concrete Mixer
-
Application:
-
Building Constrction
-
Model:
-
JZM1000
-
Feed Capacity:
-
1600L
-
Output Capacity:
-
1000L
-
Mixer power:
-
2*11kw
-
Water Supply Precision:
-
2%
-
Color and LOGO:
-
As customer request
Quick Details
-
Mixing Power:
-
2*11kw
-
Productivity:
-
30-40m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Spark
-
Motor Power:
-
2*11kw
-
Charging Capacity:
-
1600L
-
Reclaiming capacity:
-
1000L
-
Speed of Mixing Drum:
-
14RPM
-
Water Supply Mode:
-
Water pump/time relay
-
Working Cycle Period:
-
40s
-
Discharge Way:
-
Rotary drum discharging
-
Outline Dimension:
-
4500*2200*2900mm
-
Marketing Type:
-
Lower Cost Concrete Mixer
-
Weight (KG):
-
3500 kg
-
Product name:
-
Construction Equipment Concrete Mixer
-
Power type:
-
Electric Motor Cement Mixer
-
Type:
-
Electric Drum Concrete Mixer
-
Application:
-
Building Constrction
-
Model:
-
JZM1000
-
Feed Capacity:
-
1600L
-
Output Capacity:
-
1000L
-
Mixer power:
-
2*11kw
-
Water Supply Precision:
-
2%
-
Color and LOGO:
-
As customer request
Product Overview
lime soil mixer rear axle box drive concrete cement towable concrete mixer craigslist concrete mixer 500l concrete mixer

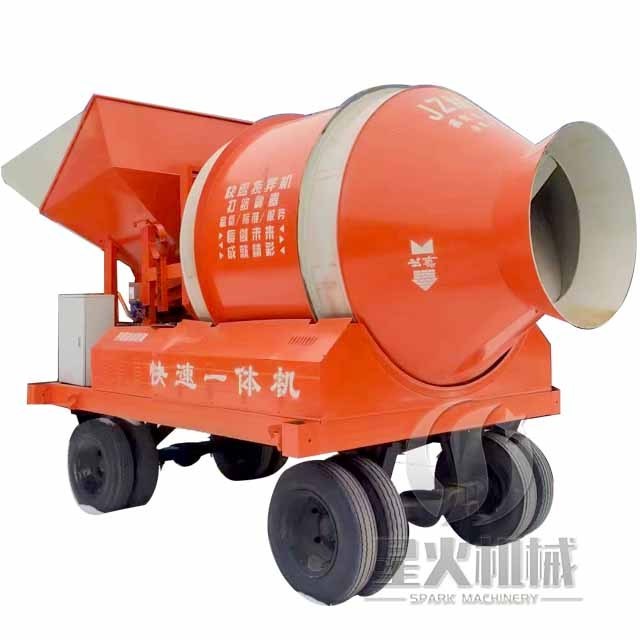

anti-clockwise rotating for concrete discharging. JZM series mixer drum driven by friction between rubber pad and riding wheel. According to different feeding ways, it can realize hoist hopper feeding and skip hopper feeding.
Adopt electric motor or diesel engine two type as the power driving, it can be dragged to move by two wheels, and it is easy to operate by electrical control box.
Working principle of reversible concrete mixer machine:
1. JZM mixer assemble rubber pad around the external surface of the mixing drum, and the driven-shaft has riding wheels rub the rubber pad. Meanwhile, assemble spiral mixing blades on the internal surface of the mixing drum.
2. In working, relying on the drum rotating and inner material own gravity, the drums clockwise rotating for concrete mixing, and the anti-clockwise rotating for concrete discharging.
1. JZM mixer assemble rubber pad around the external surface of the mixing drum, and the driven-shaft has riding wheels rub the rubber pad. Meanwhile, assemble spiral mixing blades on the internal surface of the mixing drum.
2. In working, relying on the drum rotating and inner material own gravity, the drums clockwise rotating for concrete mixing, and the anti-clockwise rotating for concrete discharging.
PRODUCT SPECIFICATIONS
|
Model
|
JZM500
|
JZM750
|
JZM1000
|
JZM1200
|
JZM1500
|
|
Feeding Capacity
|
800L
|
1200L
|
1600L
|
1920L
|
2400L
|
|
Discharging Capacity
|
500L
|
750L
|
1000L
|
1200L
|
1500L
|
|
Productivity
|
15-20m3/h
|
20-30m3/h
|
30-40m3/h
|
40-50m3/h
|
50-60m3/h
|
|
Drum Rotation
|
14r/min
|
14r/min
|
14r/min
|
14r/min
|
14r/min
|
|
Max. Aggregate Size
|
60mm
|
60mm
|
80mm
|
80mm
|
80mm
|
|
Water Supply Precision
|
≤2%
|
≤2%
|
≤2%
|
≤2%
|
≤2%
|
|
Mixing Motor
|
2*5.5kw
|
2*7.5kw
|
2*11kw
|
2*11kw
|
2*15kw
|
|
Lifting Motor
|
4.5kw
|
4.5kw
|
5.5kw
|
5.5kw
|
7.5kw
|
|
Water Pump
|
0.55kw
|
0.55kw
|
0.75kw
|
0.75kw
|
1.1kw
|
|
Tire Specification
|
8.0-18/8
|
8.0-18/8
|
8.0-18/8
|
8.0-18/8
|
8.0-18/8
|
|
Max. Drag Speed
|
20km/h
|
20km/h
|
20km/h
|
20km/h
|
20km/h
|
|
Bacther Power
|
3kw
|
3kw
|
3kw
|
6kw
|
6kw
|
|
Vibration Motor
|
0.55
|
0.55
|
0.55
|
0.55
|
0.55
|
|
Weight
|
2500kg
|
3200kg
|
3500kg
|
4000kg
|
5000kg
|
