Quick Details
-
Working range X/Y/Z (MM):
-
300*300*100
-
Maximum speed (MM/S):
-
300
-
Repetitive round-trip accuracy (MM):
-
0.02-0.05
-
Transmission mode:
-
Upper silver guide rail (slider)
-
Operating system:
-
LCD panel/hand-held programmer
-
Program storage capacity:
-
999 parameter files (65,535 points per file)
-
Motor system:
-
Nihono stepping motor, drive
-
Sport mode:
-
3-axis point-to-point, continuous straight line, circular arc
-
Expand IO:
-
4 inputs/4 outputs
-
Machine size (MM):
-
540*580*650
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
xiaomao
-
Weight (KG):
-
48
-
Working range X/Y/Z (MM):
-
300*300*100
-
Maximum speed (MM/S):
-
300
-
Repetitive round-trip accuracy (MM):
-
0.02-0.05
-
Transmission mode:
-
Upper silver guide rail (slider)
-
Operating system:
-
LCD panel/hand-held programmer
-
Program storage capacity:
-
999 parameter files (65,535 points per file)
-
Motor system:
-
Nihono stepping motor, drive
-
Sport mode:
-
3-axis point-to-point, continuous straight line, circular arc
-
Expand IO:
-
4 inputs/4 outputs
-
Machine size (MM):
-
540*580*650

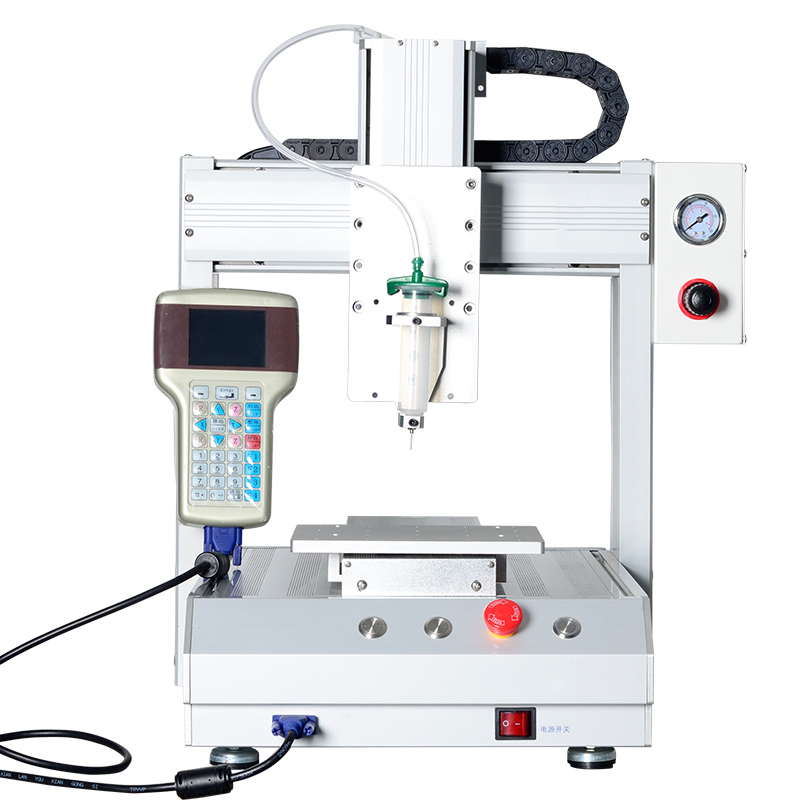

Products Description
|
Technical parameters:
|
|
|
|
Working range X/Y/Z (MM)
|
300*300*100
|
|
|
Maximum speed (MM/S)
|
three hundred
|
|
|
Repetitive round-trip accuracy (MM)
|
0.02-0.05
|
|
|
Transmission mode
|
Upper silver guide rail (slider)
|
|
|
operating system
|
LCD panel/hand-held programmer
|
|
|
Program storage capacity
|
999 parameter files (65,535 points per file)
|
|
|
operating system
|
operating system
|
|
|
Motor system
|
Nihono stepping motor, drive
|
|
|
Sport mode
|
3-axis point-to-point, continuous straight line, circular arc
|
|
|
Expand IO
|
4 inputs/4 outputs
|
|
|
Machine size (MM)
|
540*580*650
|
|
|
Weight (KG)
|
48KG
|
|
|
work environment
|
Humidity: 20-90% ℃, temperature: 0-40 ℃
|
|
|
Main configuration:
|
|
|
|
|||
|
name
|
unit
|
quantity
|
remarks
|
|||
|
electric machinery
|
set
|
3
|
Nippon Shinano Reisai/Jermykon/Best
|
|||
|
drive
|
set
|
3
|
Nippon Shinano/Best/Jermykon
|
|||
|
Double guideway
|
set
|
3
|
Bank of Shanghai, Taiwan
|
|||
|
Pneumatic glue control
|
set
|
1
|
Yadeke, Taiwan
|
|||
|
Timing belt/screw rod
|
set
|
2/1
|
Italy Italy/Taiwan TBI
|
|||
|
a sensor
|
piece
|
1
|
Omron, Japan
|
|||
|
Power Supply
|
piece
|
1
|
Mingwei, Taiwan
|
|||
|
relay
|
piece
|
1
|
Omron, Japan
|
|||
|
Button
|
piece
|
3
|
Redwave
|
|||
|
Motion controller
|
set
|
1
|
full-time
|
|||
|
Automatic dispenser system
|
set
|
1
|
full-time
|
|||
Product features:
◎ Chinese hand-held LCD screen operation, convenient programming, easy to learn and understand;
◎ With the function of drawing points, lines, surfaces, arcs, circles, irregular curves and continuous compensation, it can realize any 3D non planar path
◎ Excellent teaching function. Support advanced functions such as array, graphical browsing, 3D ellipse, common graphic library insertion, group editing, etc
◎ Large capacity 2G high-speed MiniSD file memory, which can store 999 dispensing process files
◎ Glue quantity, thickness, gluing speed, dispensing time and stopping time can be set by parameters
◎ Cooperate with special dispensing controller to ensure stable dispensing, clean glue breaking and no glue leakage
◎ With automatic anti curing function, it can effectively prevent the needle from being blocked by glue curing, and it has anti wire drawing function
◎ With glue preheating function, it can greatly shorten the time for changing glue
◎ Use Omron temperature control meter to control temperature, temperature control: ± 1 ℃
◎ Suitable for Loctite 3542, Fule 9646, 3M 2665, ITW 94167 and other brands of hot melt adhesive
◎ Adhesion of mobile phone shell and notebook shell
