Quick Details
-
Brand Name:
-
GEB
-
Model Number:
-
SP100W
-
Certificate:
-
CE
-
Product name:
-
Portable 100W Foldable Solar Panel
-
Application:
-
Outdoor
-
Warranty:
-
23years
-
Keyword:
-
Solar Panel 100w
-
Power watt:
-
100w
-
Color:
-
Balck
-
Conversion efficiency::
-
21%
-
Back:
-
FR-4 Fiberglass board
-
Front:
-
PET(frosted surface)
Quick Details
-
Type:
-
FOLDED, Foldable
-
Cell Efficiency:
-
20%~22% High Efficiencys
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GEB
-
Model Number:
-
SP100W
-
Certificate:
-
CE
-
Product name:
-
Portable 100W Foldable Solar Panel
-
Application:
-
Outdoor
-
Warranty:
-
23years
-
Keyword:
-
Solar Panel 100w
-
Power watt:
-
100w
-
Color:
-
Balck
-
Conversion efficiency::
-
21%
-
Back:
-
FR-4 Fiberglass board
-
Front:
-
PET(frosted surface)
Title goes here.
Solar panels 50w 80w 100w portable panel solar portatil flexible 100w charge kit for Outdoor 5-20V Battery Charging
Product Description
|
Item
|
Parameters
|
|
Product Name
|
Solar panels Photovoltaic panel
|
|
Nominal voltage
|
12v 18v
|
|
Open circuit voltage Voc(V)
|
21.6V
|
|
Max. power current Imp(A)
|
5.59A
|
|
Short circuit current Isc(A)
|
6.15A
|
|
Solar cells Efficiency
|
20%
|
|
Solar panel connections
|
4 pieces of 25W/18V solar panels connected in parallel
|
|
Weight(kg)
|
3.45KG
|
|
Dimensions(L*W*T)
|
505*365*40mm/ 1400*505*10mm
|
|
NOCT
|
48±2℃
|
|
Operating temperature limits
|
-40℃- +85℃
|
|
Coefficient current TK
|
0.1%/℃
|
|
Coefficient voltage TK
|
-0.37%/℃
|
|
Coefficient power TK
|
-0-45%/℃
|
|
STC
|
Irradiance: 1000W/m2, Cell temperature：25℃，AM：1.5
|

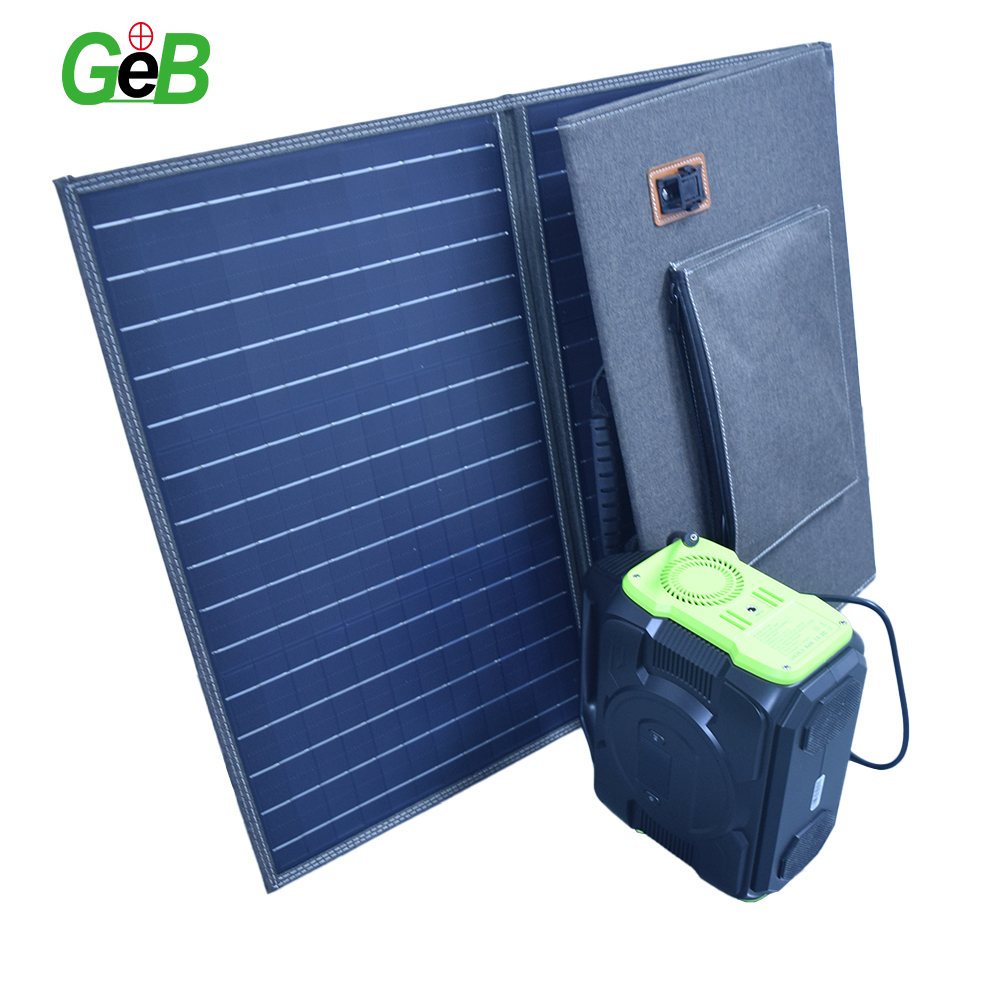

Product Picture
