Quick Details
-
Marketing Type:
-
New Product 2023
-
High-Pricision:
-
cost-effective
-
After-sales Service Provided:
-
Engineers
-
Application:
-
Industrial Profile
-
Product name:
-
Aluminum Profile Extrusion Machine
-
Function:
-
Extrusion
-
Usage:
-
Aluminum Profile Tube Extrusion
-
Keyword:
-
Aluminum Extruder Press Machine
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Advantage:
-
Cost Effective
-
Capacity:
-
0.3 -10 Ton / Day
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Mingcheng
-
Weight (KG):
-
25000
-
Marketing Type:
-
New Product 2023
-
High-Pricision:
-
cost-effective
-
After-sales Service Provided:
-
Engineers
-
Application:
-
Industrial Profile
-
Product name:
-
Aluminum Profile Extrusion Machine
-
Function:
-
Extrusion
-
Usage:
-
Aluminum Profile Tube Extrusion
-
Keyword:
-
Aluminum Extruder Press Machine
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Advantage:
-
Cost Effective
-
Capacity:
-
0.3 -10 Ton / Day
Contacts: Belinda Sun
Tel: +86-411-82766928
Fax: +86-411-39015062
Email: lorik@mingchenggroup.com
Mob/Whatsapp: +86 155 4231 8526
Products Description

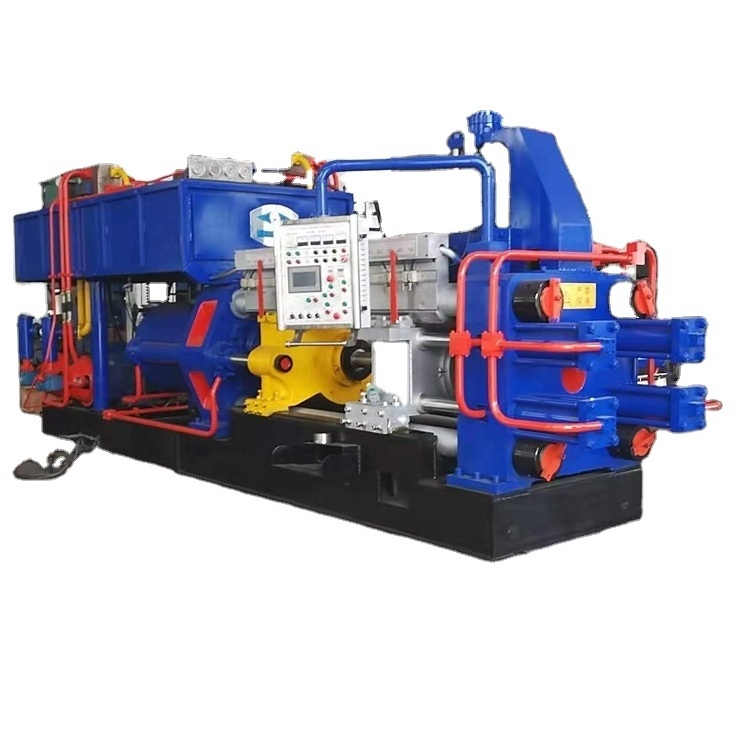

Aluminum/Copper Extrusion Press
There are two kinds of aluminum extrusion press, which are double-action extruder, and positive and negative extruder series, this equipment can be used to produce and extrude all kinds of construction, rail transit, auto parts, aviation, and other types of profiles.
Features of Aluminum Extrusion Press
1. Structure
The machine has a four-column horizontal structure with a top-mounted oil tank. Its structure is compact and easy to assemble or disassemble.
2. Extrusion Process
There are two extrusion processes: following needles and fixed needles. Our machine can meet the extrusion requirements of different pipe diameters.
3. Electronic Component
We use PLC control and can do man-machine interface real-time monitoring.
4. Hydraulic System
Hydraulic system adopts large flow plug valve, stable performance, large flow, and low-temperature rise.
5. Locate Mode
The movable beam adopts four points positioning, and the center can be adjusted. It is convenient, safe, and rapid.
The machine has a four-column horizontal structure with a top-mounted oil tank. Its structure is compact and easy to assemble or disassemble.
2. Extrusion Process
There are two extrusion processes: following needles and fixed needles. Our machine can meet the extrusion requirements of different pipe diameters.
3. Electronic Component
We use PLC control and can do man-machine interface real-time monitoring.
4. Hydraulic System
Hydraulic system adopts large flow plug valve, stable performance, large flow, and low-temperature rise.
5. Locate Mode
The movable beam adopts four points positioning, and the center can be adjusted. It is convenient, safe, and rapid.
Range of Work
At present, copper and aluminum profile extrusion machines have been widely used in construction, electronics, automobiles, aerospace, machine manufacturing, and other fields.
In actual production, the application rate of copper-aluminum profile extrusion machines is constantly increasing, which can meet the needs of various industries.
Product Paramenters
|
TECHNICAL PARAMETERS FOR ALUMINUM EXTRUSION PRESS
|
|
|
|
|
|
|||||
|
Model
|
Extruding Speed
(mm/s)
|
Rated Extrusion Force
|
|
Fixed Work Stress
(MPa)
|
Main Motor Power
(KW)
|
|||||
|
XJ-630
|
40
|
6300KN
|
700UST
|
21
|
75×3
|
|||||
|
XJ-800
|
50
|
8000KN
|
880UST
|
21
|
132×3
|
|||||
|
XJ-1000
|
40
|
10000KN
|
1100UST
|
21
|
132×3
|
|||||
|
XJ-1250
|
50
|
12500KN
|
1350UST
|
21
|
132×4
|
|||||
|
XJ-1630
|
40
|
16300KN
|
1800UST
|
21
|
132×5
|
|||||
|
XJ-1800
|
40
|
18000KN
|
2000UST
|
21
|
132×6
|
|||||
|
XJ-2200
|
40
|
22000KN
|
2420UST
|
21
|
132×7
|
|||||
|
XJ-2500
|
40
|
25000KN
|
2750UST
|
21
|
132×8
|
|||||
Mechanical Part
The mechanical part is composed of base, prestressed frame type tension column, front beam, movable beam, X-shaped oriented extrusion cylinder seat, extrusion shaft, ingot feeding mechanism, residual material separation shear, sliding die base, etc.
Hydraulic Part
The hydraulic system is mainly composed of master cylinder, side cylinder, locking cylinder, perforated cylinder, large-capacity axial piston variable pump, electro-hydraulic ratio servo valve (or electro-hydraulic proportional regulating valve), position sensor, oil pipe, oil tank and various hydraulic pressure switch composition.
Electrical Part
The electrical part is mainly composed of power supply cabinet, operation console, PLC programmable controller, upper industrial control machine and display screen.
