Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
HL-B221A
-
Frame material:
-
Steel, PP materials
-
Electric system:
-
Imported Denmark LINAK Motors
-
Application:
-
obstetrics and gynecology
-
Functions adjustment:
-
Electrically, by hande controller
-
Height:
-
Low starting height 580mm
-
Certificate:
-
ISO9001, ISO13485, CE
-
Package:
-
Wooden case
-
Factory Location:
-
2 Hours Drive From Beijing
-
Sample Order:
-
Acceptable
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
HI-LIFE
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
HL-B221A
-
Frame material:
-
Steel, PP materials
-
Electric system:
-
Imported Denmark LINAK Motors
-
Application:
-
obstetrics and gynecology
-
Functions adjustment:
-
Electrically, by hande controller
-
Height:
-
Low starting height 580mm
-
Certificate:
-
ISO9001, ISO13485, CE
-
Package:
-
Wooden case
-
Factory Location:
-
2 Hours Drive From Beijing
-
Sample Order:
-
Acceptable
Product Information

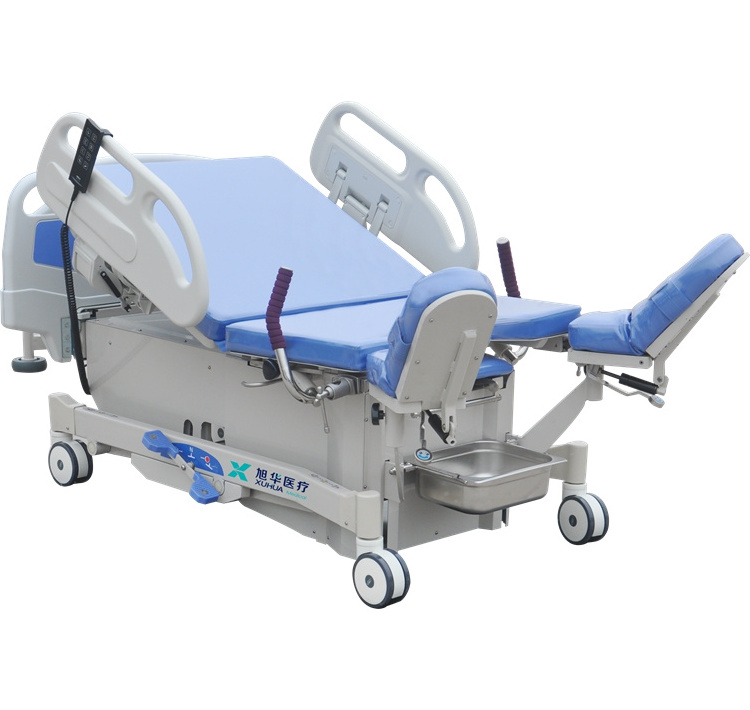

Electric Adjustable Hospital LDR Obstetric Delivery Bed Gynecological Birthing Bed
Model: HL-B221A
I. Electric Gynecological Birthing Bed Introduction:
Model HL-B221A Electric gynecological birthing bed is designed with a low position to enable the lying-in women to get on or get off the bed safer and much efficient. The bed is integrated with delivery, childbirth, recuperation, gynecological operation, examination and diagnosis, which maximum reduces the work intensity of nursing staff, easy and convenient to operate.
Model: HL-B221A
I. Electric Gynecological Birthing Bed Introduction:
Model HL-B221A Electric gynecological birthing bed is designed with a low position to enable the lying-in women to get on or get off the bed safer and much efficient. The bed is integrated with delivery, childbirth, recuperation, gynecological operation, examination and diagnosis, which maximum reduces the work intensity of nursing staff, easy and convenient to operate.
II. Electric Gynecological Birthing Bed Outstanding Features:
1. PP material bed head board is shaped by blow molding, with self-locking devices.
2. New type 2 pieces PP material adjustable side rails.
3. Adopting Linak motors which are of high performance, waterproof and noiseless.
4. Mounted on four diameter 125mm casters with central braking system. Braking pedals are made of high quality aluminum alloy material,stable and easy to operate.
5. Durable & solid steel structure, with epoxy coating, resistant to corrosion. The overall construction and electric control
system take advantage of its previous model and improved based on customer's suggestions and clinical requirements.
6. Back section and seat section can work together. When adjusting the back section, the seat section will reach a resonable angle at the same time, to avoid the lying-in women sliding down.
7. Equipped with electric tredenlenburg and reverse-trendelenburg position.
8. Electric height adjustment to achieve a low position which enables the pregnant women to get on or get off the bed safer and much efficent.
9. Foot plates can be manual adjusted up and outward.
10. Equipped with an adjustable leg section.
11. Large size castors make the bed stable and easy to move.
2. New type 2 pieces PP material adjustable side rails.
3. Adopting Linak motors which are of high performance, waterproof and noiseless.
4. Mounted on four diameter 125mm casters with central braking system. Braking pedals are made of high quality aluminum alloy material,stable and easy to operate.
5. Durable & solid steel structure, with epoxy coating, resistant to corrosion. The overall construction and electric control
system take advantage of its previous model and improved based on customer's suggestions and clinical requirements.
6. Back section and seat section can work together. When adjusting the back section, the seat section will reach a resonable angle at the same time, to avoid the lying-in women sliding down.
7. Equipped with electric tredenlenburg and reverse-trendelenburg position.
8. Electric height adjustment to achieve a low position which enables the pregnant women to get on or get off the bed safer and much efficent.
9. Foot plates can be manual adjusted up and outward.
10. Equipped with an adjustable leg section.
11. Large size castors make the bed stable and easy to move.
III.
Electric LDR Obstetric Bed
Technical Specifications:
|
Model Number:
|
HL-B221A
|
|
|
|
|||
|
Bed overall dimensions:
|
L1930*W940mm
|
|
|
|
|||
|
Bed plateform dimensions:
|
L1815*W780mm
|
|
|
|
|||
|
Functions adjustment
|
Denmark imported LINAK motor system
|
|
|
|
|||
|
Bed height :
|
580-860mm
|
|
|
|
|||
|
Backrest up :
|
≥ 60 °
|
|
|
|
|||
|
Sit board upward
|
0-12°
|
|
|
|
|||
|
Footplate elevation :
|
100mm
|
|
|
|
|||
|
Bed trendelenburg :
|
-8°
|
|
|
|
|||
|
Footplate outward :
|
≥ 45 °
|
|
|
|
|||
|
Footplate up :
|
≥ 45 °
|
|
|
|
|||
|
Castor size :
|
125mm
|
|
|
|
|||
|
Bed weight capacity :
|
300kg
|
|
|
|
|||
More Colors Options:
Product Line
Our Company
Certification
Showroom
Our Customers
Our Facilities
FAQ
1.Are you factory or only company?
We are manufaturer, have our own factory to produce medical products, such as hospital bed, delivery bed, examination bed, infant bed, medical trolley, bedside cabinet, auxiliary medical instrument and so on.
2. Why we choose you?
1) Professional- we have been in the medical field for 25 years.
2) Customizable- we have R&D team, could provide customized service.
3) Competitive- we have factory, so we have competitive price.
3. What's your delivery time for the electric gynecological birthing bed?
For the electric products, the delivery time is 25-30 days after receiving the deposit. Besides, the delivery time depends on the quantity of order.
We are manufaturer, have our own factory to produce medical products, such as hospital bed, delivery bed, examination bed, infant bed, medical trolley, bedside cabinet, auxiliary medical instrument and so on.
2. Why we choose you?
1) Professional- we have been in the medical field for 25 years.
2) Customizable- we have R&D team, could provide customized service.
3) Competitive- we have factory, so we have competitive price.
3. What's your delivery time for the electric gynecological birthing bed?
For the electric products, the delivery time is 25-30 days after receiving the deposit. Besides, the delivery time depends on the quantity of order.
4. What payment options do you offer?
We are flexible in terms of payment. We do LC, TT, DP, West union, even credit, after auditing the customer.
5. What's your packing details for the electric gynecological birthing bed?
We are flexible in terms of payment. We do LC, TT, DP, West union, even credit, after auditing the customer.
5. What's your packing details for the electric gynecological birthing bed?
Packed by wooden case. All of productions are inspected carefully by QC before delivery.
6. What warranty do your products have for the electric gynecological birthing bed?
We provide a standard 1 year warranty, optional to be increased.The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
6. What warranty do your products have for the electric gynecological birthing bed?
We provide a standard 1 year warranty, optional to be increased.The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
