Quick Details
-
Power:
-
4HP
-
DF-404 tractor:
-
dongfeng tractor
-
DONGFENG df-404 tractor:
-
wheel tractor
Quick Details
-
Brand Name:
-
DONGFENG
-
Model Number:
-
DF-404
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
4HP
-
DF-404 tractor:
-
dongfeng tractor
-
DONGFENG df-404 tractor:
-
wheel tractor
MORE INFO PLEASE CONTACT BELOW
ATTN: Michael Zhu
Email: uniweigh
yeah.net or uniweigh
gmail.com

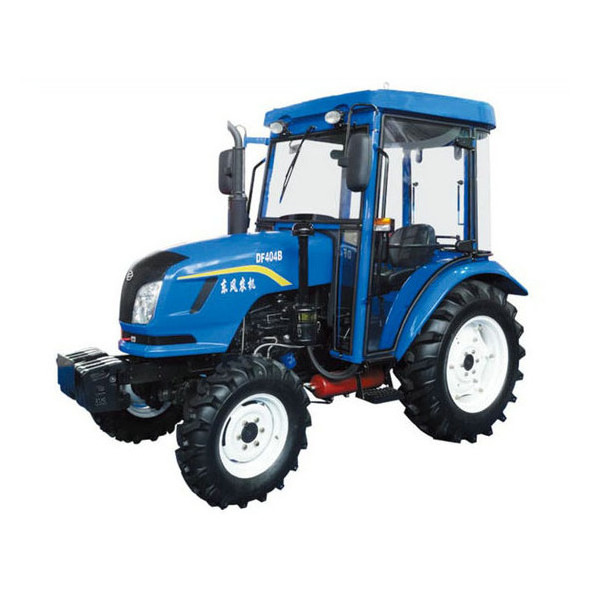

4WD farming wheel tractor/ dongfeng DF-404 tractor
| Tractor Parameters |
Model |
DF-404 | |
|
Drive Type |
4WD | ||
|
Overall Dimensions L×W×H(mm) |
3354×1500×1620(Height to steering wheel) | ||
|
Wheel Track(mm) |
Front |
1200 | |
|
Rear |
1100(Usually use),1200,1300,1400 | ||
|
Wheel Base(mm) |
1818 | ||
|
Ground Clearancre(mm) |
Under Front Axle |
378 | |
|
Under Rear Axle |
405 | ||
|
Rated Traction
|
In Paddy Fields |
5760 | |
|
In Dry Fields |
7960 | ||
|
Construction Mass(Kg) |
1485 | ||
|
Min. Turning Radius(m) |
3.2 | ||
|
Theoretical Speed(Km/h) |
Forward |
1.75,2.88,4.63,6.22,9.05,14.90,23.98,32.21 | |
|
Reverse |
2.30,11.92 | ||
| Engine Specifications |
Model |
ZN490T | |
|
Type |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion | ||
|
Rated Power(Kw/hp) |
29.4/40.0 | ||
|
Rated Fuel Consumption(g/kw/h) |
≤275 | ||
|
Rated Speed(rpm) |
2400 | ||
|
Bore×Stroke(mm) |
90×100 | ||
|
Total Displacement(L) |
2.543 | ||
| Drive System |
Clutch |
Linkage type dual-function clutch | |
|
Gear Box |
(4+1)×2,plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission | ||
|
Main Drive |
One Pair of Spiral Bevel gears | ||
|
Differential |
Bevel Gear | ||
|
Differential Lock |
Jaw Lock | ||
|
Final Transmissions |
Spur Gear,External Gearing | ||
| Travelling Mechanism |
Tyre |
front |
7.5-16 |
|
rear |
12.4-24 | ||
|
Steering Gear |
Hydraulic streering | ||
|
Brake |
Disk type | ||
| Working Device |
Hydraulic System |
Lifting Capacity at 610 mm Behind Lift Point(Kg) |
665 |
|
3-point Suspension |
Category:I | ||
|
P.T.O.Shaft |
Rotating Speed(rpm) |
540/1000 | |
|
Spline size |
6-φ35 Rectangular spline | ||
