Product Overview

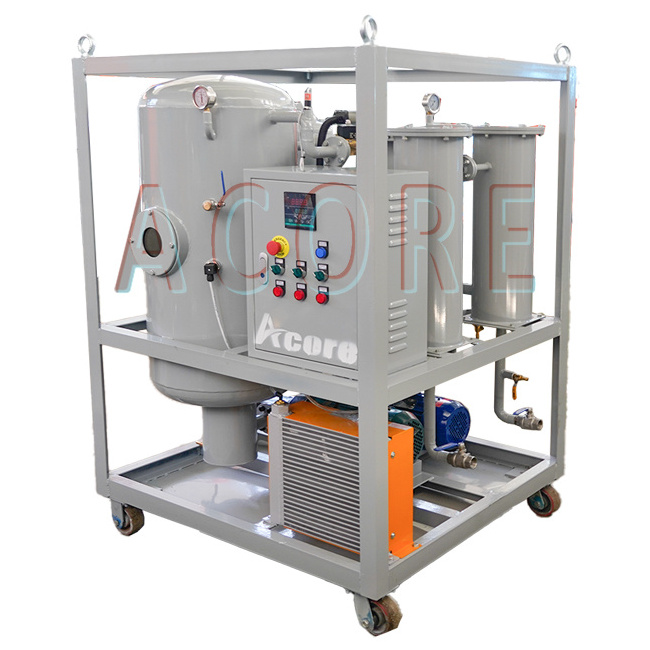

Vacuum Lube Oil Purifier
Application
The main function of lubricating oil filtration machine is to purify the contaminated lubricating oil, motor oil, gear oil,
hydraulic oil, compressor oil, turbine oil and restore its original performance, it’s a professional oil filtration machine. In the purification processing the filter residue accumulation, resistance increased, flow rate slow, should stop work to cleaning residue.
When lubricating oil filtration machine removes impurity, pay special attention to filter on the stainless steel wire mesh deformation or damage, otherwise, when installed filters again, the purity of the filtered medium can’t meet the design requirements, compressor, pump, instruments and other equipment will be destroyed, once found that stainless steel wire mesh deformation or damage should be replaced immediately. The filter element of lubricating oil filtration machine is composed of special materials, is easily damaged parts, need special protection; When fine filter work after a period of time, the filter to block a load of a certain amount of impurities, the pressure will increase, flow rate will decline, need to remove the impurities in the filter system in time, at the same time to clean the filter element.

Features:
1.High-performance water, gas, and particulate removal
2.Minimizing fluid oxidation, maintaining lubricity properties and reducing aeration and acid build-up.
3. Low watt density oil heaters and digital temperature controller
4. High-quality filter elements with high dirt holding capacity, and filter elements can be cleaned or replaced.
5. Low maintenance requirements, minimal installation requirements and automatic operation

PRODUCT SPECIFICATIONS
Model
VLF10
VLF20
VLF30
VLF50
VLF100
VLF150
VLF200
VLF300
Capacity(L/h)
600
1200
1500
3000
6000
9000
12000
18000
Vacuum level
-0.08~-0.095 Mpa






Working pressure
≤ 0.4 Mpa






Temperature range
20-80℃






Demulsifying value
≤8 min(GB/F7035)






Water content
≤ 3ppm






Gas content
≤1%






Filtering rate
1 micron






Power supply
208V/220V/380V/400V/415V/440V/460V/480V/575V(±10%), 50/60Hz, 3Phase






Cleanness
NAS 6 grade
Working noise
65 dB






Heating power (kw)
15
24
24
30
60
120
180
240
Total power (kw)
17
27
27
33
65
125
188
250
Inlet/outlet(mm)
25
25
32
32
44
50
55
65
Weight (kg)
350
400
400
450
600
900
1200
1600


Dimension (L*W*H)
1100
1150
1200
1300
1500
1600
1700
1900
800
800
850
950
1000
1150
1250
1300
1200
1250
1300
1350
1500
1600
1800
1900
