Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
22KW
-
Dimension(L*W*H):
-
3500*1350*2200mm
-
Weight:
-
15000 kg
-
Pass percentage:
-
98%
-
Design Speed:
-
230pcs/min
-
Stable work speed:
-
180(auto)-250(full servo)pcs/min
-
Power source:
-
380V,50HZ
-
Machine capacity:
-
about 400kw
-
Air pressure:
-
0.6-0.8Mpa
-
Machine weight:
-
about 90T
-
Control system:
-
PLC control system,Operating on the touch screen
-
Product size:
-
M: 680x650 L: 800x650 XL: 950x760
-
Machine Size:
-
31*2.2*4.5m
Quick Details
-
Production Capacity:
-
1000pcs/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
Voltage:
-
380V 50HZ
-
Power:
-
22KW
-
Dimension(L*W*H):
-
3500*1350*2200mm
-
Weight:
-
15000 kg
-
Pass percentage:
-
98%
-
Design Speed:
-
230pcs/min
-
Stable work speed:
-
180(auto)-250(full servo)pcs/min
-
Power source:
-
380V,50HZ
-
Machine capacity:
-
about 400kw
-
Air pressure:
-
0.6-0.8Mpa
-
Machine weight:
-
about 90T
-
Control system:
-
PLC control system,Operating on the touch screen
-
Product size:
-
M: 680x650 L: 800x650 XL: 950x760
-
Machine Size:
-
31*2.2*4.5m

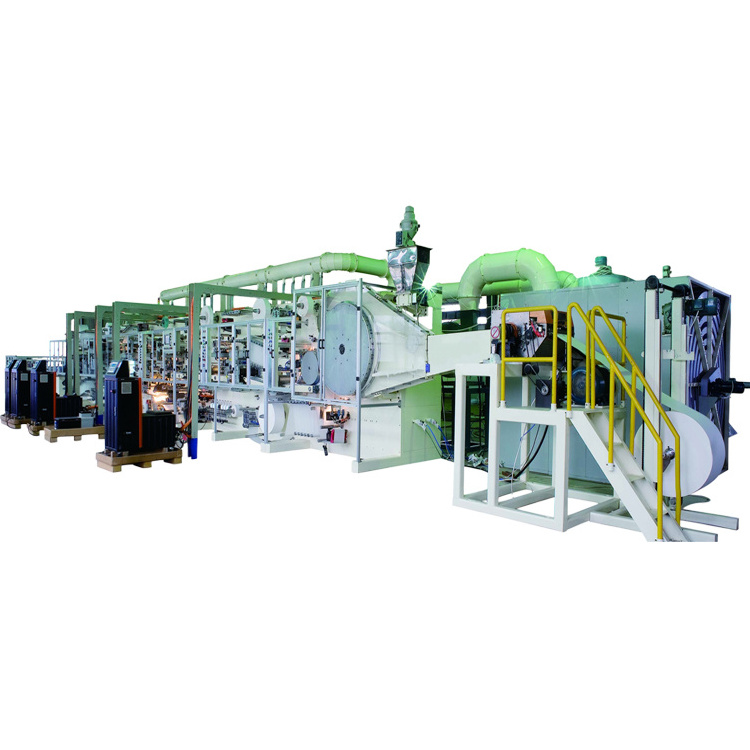

2023 New Design China Supplier Full Servo Adult Diaper Production Line Adult Diaper Machiner low cost
Overview
| Main Parameter | Configuration | ||||
| Overall Size | 33*8*4.5m | Product size | M: 680x650 L: 800x650 XL: 950x760 | ||
| Machine Size | 31*2.2*4.5m | Product structure | SAP core,hydrophobic nonwoven(leg cuff),topsheet nonwoven,ADL,spandex,back sheet,tapes,elastic waistband,frontal tape | ||
| Design Speed | 230pcs/min | Control system | PLC control system,Operating on the touch screen,Configure HDTV monitor | ||
| Stable work speed | 180(auto)-250(full servo)pcs/min | Drive system | Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings. | ||
| Pass percentage | 98% | Tension system | Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B shaft active unwinding by inverter motor. | ||
| Power source | 380V,50HZ | Safety system | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. | ||
| Machine capacity | about 400kw | Materials corrective system | Germany BST automatic web guide system (optional). | ||
| Air pressure | 0.6-0.8Mpa | Packing way | Equipped with the stacker at the request of client. | ||
| Machine weight | about 90T |
