Quick Details
-
Brand Name:
-
Zhengzhou Yatai
-
Voltage:
-
220V/380V/415V/600V or customized
-
Dimension(L*W*H):
-
2000*1050*1750mm
-
Power (kW):
-
15
-
Weight (T):
-
1.2
-
Name:
-
Double Shaft Plastic Shredder
-
Application:
-
Recycle Waste Plastic
-
Keyword:
-
Two Shaft Plastic Shredder
-
Usage:
-
Waste Plastic Cusher
-
After-sales Service Provided:
-
Video Technical Support
-
Raw material:
-
Plastic Products Paper Wood
-
Model:
-
YT-SZS-400
-
Capacity:
-
200-300kg/h
-
Blades material:
-
Cr12MoV/ SKD-11/H13/D2
-
MOQ:
-
1set
Quick Details
-
Max.Production Capacity (kg/h):
-
1500
-
Place of Origin:
-
Henan, China
-
Production Capacity (kg/h):
-
200 - 300 kg/h
-
Brand Name:
-
Zhengzhou Yatai
-
Voltage:
-
220V/380V/415V/600V or customized
-
Dimension(L*W*H):
-
2000*1050*1750mm
-
Power (kW):
-
15
-
Weight (T):
-
1.2
-
Name:
-
Double Shaft Plastic Shredder
-
Application:
-
Recycle Waste Plastic
-
Keyword:
-
Two Shaft Plastic Shredder
-
Usage:
-
Waste Plastic Cusher
-
After-sales Service Provided:
-
Video Technical Support
-
Raw material:
-
Plastic Products Paper Wood
-
Model:
-
YT-SZS-400
-
Capacity:
-
200-300kg/h
-
Blades material:
-
Cr12MoV/ SKD-11/H13/D2
-
MOQ:
-
1set

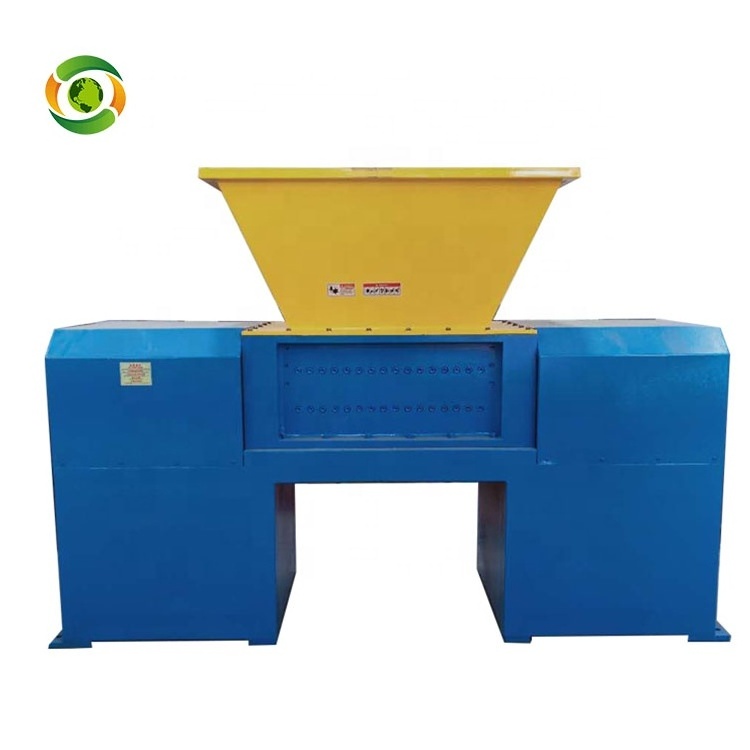

Double shaft shredder
Application
The double shafts shredders have been designed for a wide ways of applications and industries,such as:shredding WEEE waste,scrap tires,packaging barrel, pallets,etc.Depenging on input materials and the following process the shredded material can be used directly or go into the next step of size reduction.XD's serious double shaft shredder has two rotors built into the machine that rotate at low speeds,high torque and low noise.Adopt with microcomputer control system with function of start,stop,automatic reverse sensors to protect the machine against over loading and jamming.
SUITABLE RAW MATERIALS
1. All kinds of hollow containers: plastic beverage cans, plastic buckets, iron drums, packing boxes,packing drums.
2. Used household appliances: TV, washing machine, refrigerator shell.
3. Pipe material: large pipe, pipe fitting and PE pipe.
4. Used templates: wooden pallets, plastic pallets and forklifts.
5. Used tires: car tires, truck tires.
6. Scrap metal: automobile housing, aluminum alloy, scrap cast aluminum parts, engine housing, lead and steel plates with thickness below 5mm.
7. Cooking garbage, living garbage, RDF derivative, medical waste, biological orange pole, garden garbage.
8. Glue head material, paper mill rope.
Based on different materials,we design the special blades with different hooks,normally,we have single hooks blade,double hooksblades,four hooksblades and multi-hooks blades.Also the thickness of blades for different materials are different,the range is 10mm-80mm.We desing single or multi-hooks of blades with different thickness for different materials.
Such as:The 10 and 20mm thick blades are suitable for fragile materials such as medical packaging and electrical board.
The 40 and 50mm thick blades are widely used for various mateerials such as tires,plastic products,wood pallets,film and etc.
The 80mm thickness blades are used for shredding metal items or plastic and metal compounds such as refrigerator and drums,the blades can handle material up to 10mm in thickness.
| We design the blades with different hooks, and the thickness of blades for different materials are different, the range is 10mm-80mm. Blade quality have 9CrSi, Cr12MoV, SKD-II, D2 etc. | The main body of the shredder is welded with high quality steel plate to eliminate stress treatment/integral machining to ensure the stability of the equipment under heavy load for a long time |
| Knife shaft is is made of special special alloy tool steel forging blank, precision machining, multiple heat treatment, and reasonably provided powerful power for cutting, increase service life. | Our double shaft shredder adopts button control, easy to operate, set up, stop, reverse, overload protection and other functions. |
2.Double shaft cutting system:Using different blades according customers' material;
3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs;
4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.
TECHNICAL PARAMETERS
| Model | YT-SZS-800 | YT-SZS-1000 | YT-SZS-1200 | YT-SZS-1500 |
| Motor Power | 22*2Kw | 30*2Kw | 45*2Kw | 55*2Kw |
| Capacity | 1000-1500Kg/h | 1500-2000Kg/h | 2000-3000Kg/h | 2500-3500Kg/h |
| Blade Number | 20pieces | 25Pieces | 30Pieces | 38Pieces |
| Feed Hopper Size | 800*1200mm | 1000*1500mm | 1500-2000mm | 1500-2000mm |
| Blade Quality | 9CrSi | C12MoV | SKD-Ⅱ | D2 etc |
NOTE:
2. We have welding, removable and integral blade holders for our single shaft shredder. You can communicate with our sales representative to confirm the suitable blade holder.
1). Several Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not Dealer
Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
3). Fast Delivery
We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send
the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?
A: Yes, you can.It depends on the difference of blades teeth and quantity, which can be customized.
Q: Which brand of motor will you use?
A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry
about our machine's quality.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation
of the machine.
