Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Innovo
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9000*2000*2000mm
-
Weight:
-
7000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
delivery time:
-
60 days
-
Paper Width:
-
850mm
-
Cutting numbers:
-
2 cutting-A4 210mm (width)
-
Paper core's diameter:
-
3"(76.2mm)or 6"(152.4mm)
-
Paper weight:
-
60-100g/m2
-
Sheet length:
-
297mm
-
Ream amount:
-
500 sheets Max. Height: 45-55mm
-
Production speed:
-
Max 13reams/min
-
Cutting accuracy:
-
±0.2mm
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
13reams/min
-
Max. workable width:
-
850mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Innovo
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9000*2000*2000mm
-
Weight:
-
7000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
delivery time:
-
60 days
-
Paper Width:
-
850mm
-
Cutting numbers:
-
2 cutting-A4 210mm (width)
-
Paper core's diameter:
-
3"(76.2mm)or 6"(152.4mm)
-
Paper weight:
-
60-100g/m2
-
Sheet length:
-
297mm
-
Ream amount:
-
500 sheets Max. Height: 45-55mm
-
Production speed:
-
Max 13reams/min
-
Cutting accuracy:
-
±0.2mm

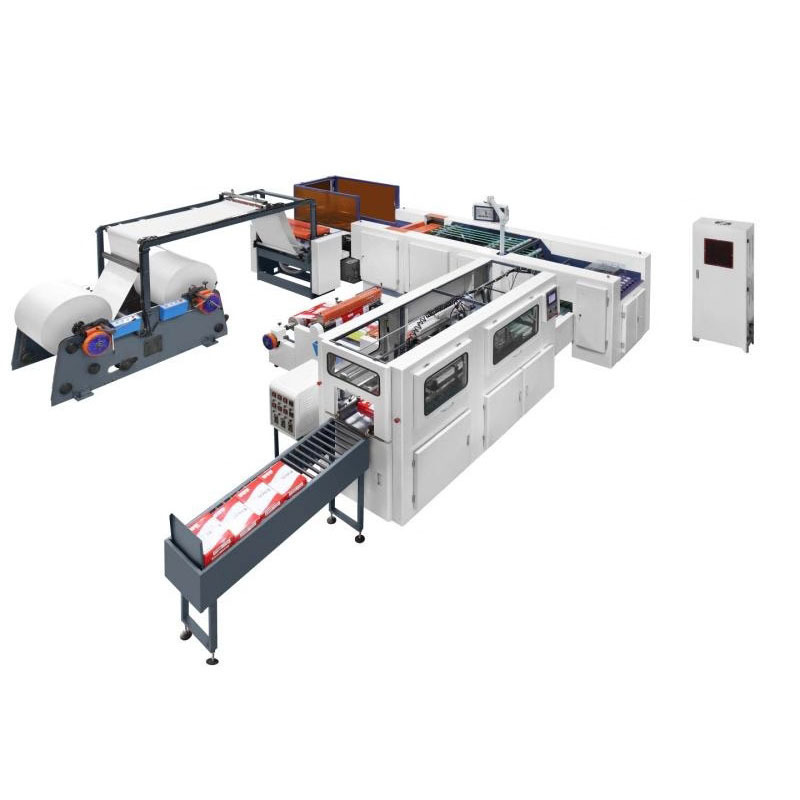

A4 copy paper production line
SPECIFICATION
2.1. Technics of Equipment
As technics of our machine, we hereby describe the related functions and work flow for paper products: unwinding→ cutting → conveying → collecting → Packaging.
A. A4-2(pocket) Cut Size Sheeting Machine
A.1. Main Technical Parameter
A.2.Standard Configuration
1. Unwind Stand (1Sets= 1Rolls)
A-1 Type: CHM-A4-2
2. Automatic tension control system
A-2 Type: Automatic tension control system
|
1) When the paper through inductor, that automatic feedback to the PLC control system to increase brake load, increase or reduce the tension that control the paper tension automatically. |
3 High precision cutting knife system
A-3 Type: High precision cutting knife system
4. Transporting System
A-4.Type: Transporting system
B. CHM-A4B Wrapping Machine
B.1. Main Technical Parameters:
C. All the machine is controlled by PLC.
Included the following function: speed control, paper count, paper ream output, fault alarm and automatic stop(Indicate fault code shown on the panel screen)
D. Prepare items by buyer
1)The civil engineering and substructure of this machine
2)The machine main power wiring and electric line setting work out of this machine control box.
3)Air pressure source and pipe for this machine.
4)The suspend and unload work at scene.
E. Other terms
This machine design by the newest technical and technology development, so in the ruler of not effect the production and quality, we remain the right to modify and change.
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage .We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
