Quick Details
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZENITH
-
Year:
-
2020
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1650x850x2100(mm)
-
Hollow part volume:
-
2000ML
-
Clamping Force (kN):
-
180
-
Power (kW):
-
12
-
Weight (KG):
-
1400 KG
-
Key words:
-
semi-automatic pure water bottle blowing machine
-
Capacity:
-
2000BPH
-
Suitable bottle:
-
200-2000ml
-
Product name:
-
pet bottle blowing machine
-
Use:
-
water bottle blowing machine
-
Machine type:
-
Stretch Bottle Blowing
-
Bottle type:
-
PET Bottlle
-
Cavity:
-
4 Cavity
-
Function:
-
Pet Bottle Blow Making Machine
-
Processing Type:
-
Bottle Blow Molding System
Quick Details
-
Neck Diameter(mm):
-
38 mm
-
Max.Bottle Diameter(mm):
-
180 mm
-
Max.Bottle Height(mm):
-
360 mm
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZENITH
-
Year:
-
2020
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1650x850x2100(mm)
-
Hollow part volume:
-
2000ML
-
Clamping Force (kN):
-
180
-
Power (kW):
-
12
-
Weight (KG):
-
1400 KG
-
Key words:
-
semi-automatic pure water bottle blowing machine
-
Capacity:
-
2000BPH
-
Suitable bottle:
-
200-2000ml
-
Product name:
-
pet bottle blowing machine
-
Use:
-
water bottle blowing machine
-
Machine type:
-
Stretch Bottle Blowing
-
Bottle type:
-
PET Bottlle
-
Cavity:
-
4 Cavity
-
Function:
-
Pet Bottle Blow Making Machine
-
Processing Type:
-
Bottle Blow Molding System

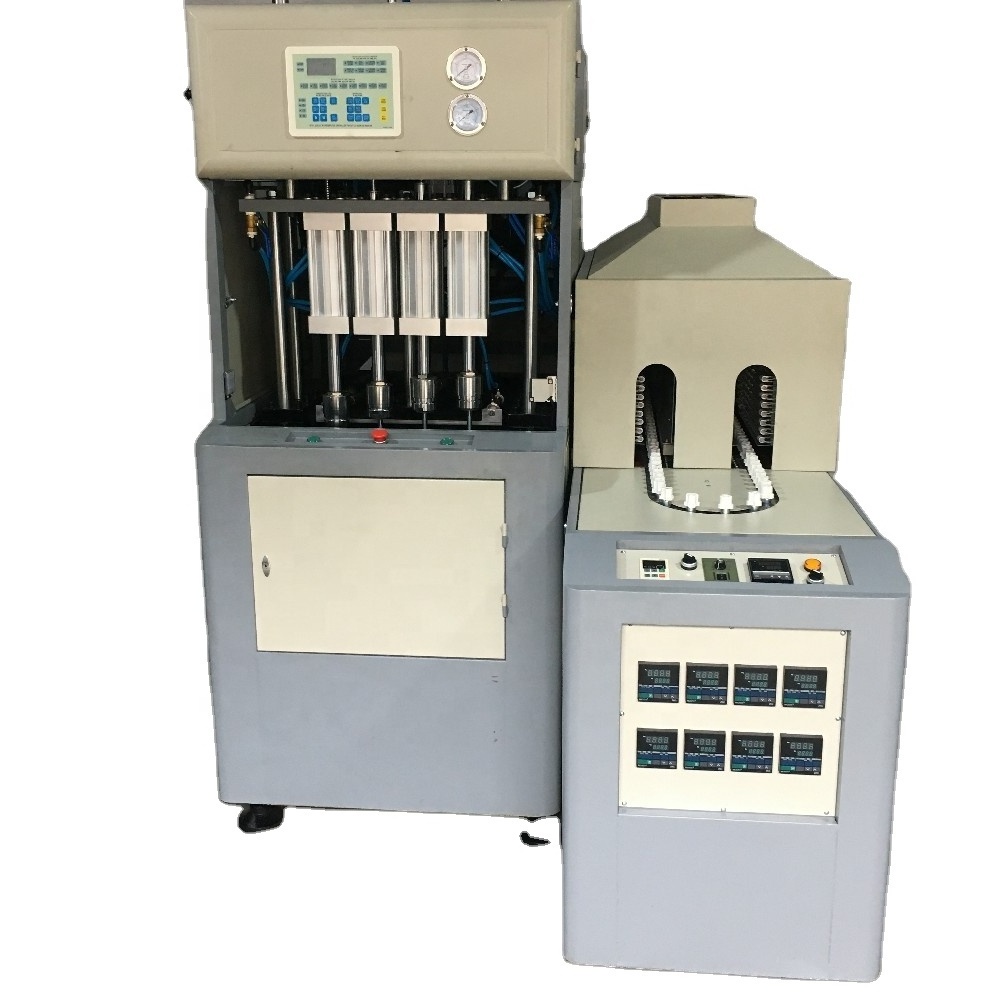

Detailed Images
Product Description
Product Application
PET Bottle Blowing Machine is applied for 50ml-1500ml small volume bottle production,
Water Bottle Blowing Machine is best suitable for small scale production and beginner; the preforms manually put onto preform holder and heated in infrared oven, then the heated preforms manually put into blow mould to stretch blowing into bottles
semi-automatic pure water bottle blowing machine Main Advantage:
big flow rate blowing valve design guarantee smooth and continous blowing,with pre blow function gurantee the blowed bottle with evenly thickness,
Germany brand solenoid valve guarantee the blowing machine action stable,
Infrared heating oven Temperature by Temperature control module gurantee the heating stable,
The machine is controlled by PLC system, with menu of different language for easy setting,
Water Bottle Blowing Machine is best suitable for small scale production and beginner; the preforms manually put onto preform holder and heated in infrared oven, then the heated preforms manually put into blow mould to stretch blowing into bottles
semi-automatic pure water bottle blowing machine Main Advantage:
big flow rate blowing valve design guarantee smooth and continous blowing,with pre blow function gurantee the blowed bottle with evenly thickness,
Germany brand solenoid valve guarantee the blowing machine action stable,
Infrared heating oven Temperature by Temperature control module gurantee the heating stable,
The machine is controlled by PLC system, with menu of different language for easy setting,
Main Specification
MODEL
|
|
Unit
|
ZSB-4-2200
|
|
Products
|
Raw material
|
|
PET
|
|
|
Max.Capacity of bottle
|
L
|
2
|
|
|
Theoretical production capacity
|
BPH
|
2200
|
|
|
Max.neck diameter
|
mm
|
38
|
|
|
Max.bottle height
|
mm
|
360
|
|
|
Max.bottle diameter
|
mm
|
120
|
|
Molding unit
|
Clamping force
|
Kn
|
180
|
|
|
Max.mould plate dimension(L*H)
|
mm
|
420*640
|
|
|
Mould opening stroke
|
mm
|
200
|
|
|
Max.Mould stretching stroke
|
mm
|
400
|
|
|
Max.Mould thickness
|
mm
|
240
|
|
|
Number of cavity
|
cavity
|
4
|
|
Electricity
|
Total power consumption
|
Kw
|
12
|
|
|
Voltage/frequency
|
v/hz
|
380v 220v 3phase /50hz 60hz
|
|
Compressed Air system
|
Operation pressure
|
Mpa
|
0.8-1.2
|
|
|
Blowing pressure
|
Mpa
|
30
|
|
|
High pressure Air consuming
|
M3 /min
|
2.0
|
|
|
Air Cooling dryer
|
M3 /min
|
2.0
|
|
|
Air filters 2pcs
|
M3 /min
|
2.0
|
|
|
Air tank
|
L
|
600
|
|
Chilled water
|
Water chiller
|
|
recyling cooled water 20degree
|
|
Machine size and weight
|
Blower Dimension(L*W*H)
|
m
|
1.65x0.85x2.10
|
|
|
Blower weight
|
Kg
|
1100
|
|
|
Heater dimension
|
m
|
2.18x0.65x1.75
|
|
|
Heater weight
|
Kg
|
450
|
Components List
Accessory machines
Shangair brand High Pressure Air compressor
High pressure Air Tank
Air Cooling Dryer With two Air Filters
Water Chiller Air Cooling Type
