shandong Bohong Bearing Co., Ltd. was founded in 1996 and produced its first deep groove ball bearing in China. Since then, the
company has spearheaded the development of bearings in China. Now it offers a full range of bearings and sells them worldwide
which includes ball bearings, roller bearings, linear motion products and automotive bearings and components.Shandong Bohong
Bearing had registered its own brand BHR. BHR is focused and committed to deliver its customers high quality products and
solutions because they are at the core of everything. With a variety of bearings, competitive prices, fast delivery and good
after-sale service, BHR bearing is always expecting and respecting your attention to talk bearings together.
- Product Details
- {{item.text}}
Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
61906
-
Seals Type:
-
OPEN,Z,N,ZN,RZ,RS,2Z,2RZ,2RS
-
Place of Origin:
-
China
-
Bore size:
-
30 mm
-
OD.:
-
47 mm
-
Thickness:
-
9 mm
-
Clearance:
-
C0 C3 C4
-
Bearing Material:
-
GCr15,SUJ2,SKF3,100Cr6,52100,Stainless
-
Cage Material:
-
Steel, Brass, Bakelite, Nylon
-
Certification:
-
ISO 9001:2000
-
Quality guarantee:
-
12 months
-
Hardness:
-
58-63HRC
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
-
Bore Size:
-
29.9 - 30 mm
-
Precision Rating:
-
P2 P4 P6 P5 P0
-
Number of Row:
-
Single row
-
Model Number:
-
61906
-
Seals Type:
-
OPEN,Z,N,ZN,RZ,RS,2Z,2RZ,2RS
-
Place of Origin:
-
China
-
Bore size:
-
30 mm
-
OD.:
-
47 mm
-
Thickness:
-
9 mm
-
Clearance:
-
C0 C3 C4
-
Bearing Material:
-
GCr15,SUJ2,SKF3,100Cr6,52100,Stainless
-
Cage Material:
-
Steel, Brass, Bakelite, Nylon
-
Certification:
-
ISO 9001:2000
-
Quality guarantee:
-
12 months
-
Hardness:
-
58-63HRC

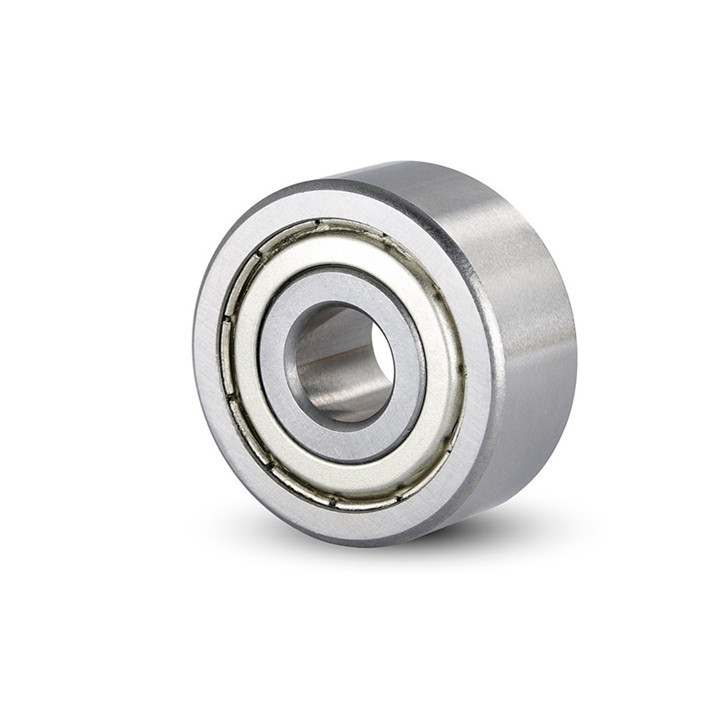

Deep Groove Ball Bearing 61906 6906 size 30x47x9 mm bearings 1906 9306 1000906 1050906 1060906 115906 1080906 1160906
Deep groove ball bearings are the most common type of rolling bearings.Deep groove ball bearing is one of the most widely used
rolling bearings. Can also be used to bear the axial load of the mechanical parts, such as low-power motors, automotive and
tractor gearboxes, machine tool gearboxes, general machines, tools, etc.
rolling bearings. Can also be used to bear the axial load of the mechanical parts, such as low-power motors, automotive and
tractor gearboxes, machine tool gearboxes, general machines, tools, etc.
Basic deep groove ball bearings consist of an outer ring, an inner ring, a steel ball and a cage. The dustproof sealing cover is
made of steel plate, which simply prevents dust from entering the bearing raceway. The oil-proof type is contact type oil seal,
which can effectively prevent the grease overflow in the bearing.
made of steel plate, which simply prevents dust from entering the bearing raceway. The oil-proof type is contact type oil seal,
which can effectively prevent the grease overflow in the bearing.
Deep groove ball bearings mainly bear radial load, but also can bear radial load and axial load. The contact angle is zero when it bears only radial load. When the deep groove ball bearing has a large radial clearance, it has the performance of angular contact bearing, can withstand larger axial load, the friction coefficient of the deep groove ball bearing is very small, and the ultimate speed is also very high.
