25
℃,1C constant current charge to 53.25V,constant voltage to 0.05C cut-off;after 30 minutes of storage,1C discharge to 42V,cycle to 80%SOC cut-off.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GSO
-
Model Number:
-
48200
-
Battery Size:
-
48200
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
117
-
The charging ratio:
-
0.5C - 1C, 0.2C(Standard),1C(Max, 25℃)
-
The discharge rate:
-
0.5C - 1C, 0.2C(Standard),1C(Max, 25℃)
-
Key:
-
LifePO4 Lithium Battery Pack
-
Battery type:
-
Lifepo4/lithium Battery
-
Display:
-
LCD Indicator
-
OEM/ODM:
-
Accpted
-
Cycle life:
-
5000 Times
-
Warranty:
-
6YEARS, 5years
-
Battery cell:
-
100% New, High Quality Grade A, LiFePO4 cell
Quick Details
-
Storage Type:
-
Normal
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
GSO
-
Model Number:
-
48200
-
Battery Size:
-
48200
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
117
-
The charging ratio:
-
0.5C - 1C, 0.2C(Standard),1C(Max, 25℃)
-
The discharge rate:
-
0.5C - 1C, 0.2C(Standard),1C(Max, 25℃)
-
Key:
-
LifePO4 Lithium Battery Pack
-
Battery type:
-
Lifepo4/lithium Battery
-
Display:
-
LCD Indicator
-
OEM/ODM:
-
Accpted
-
Cycle life:
-
5000 Times
-
Warranty:
-
6YEARS, 5years
-
Battery cell:
-
100% New, High Quality Grade A, LiFePO4 cell

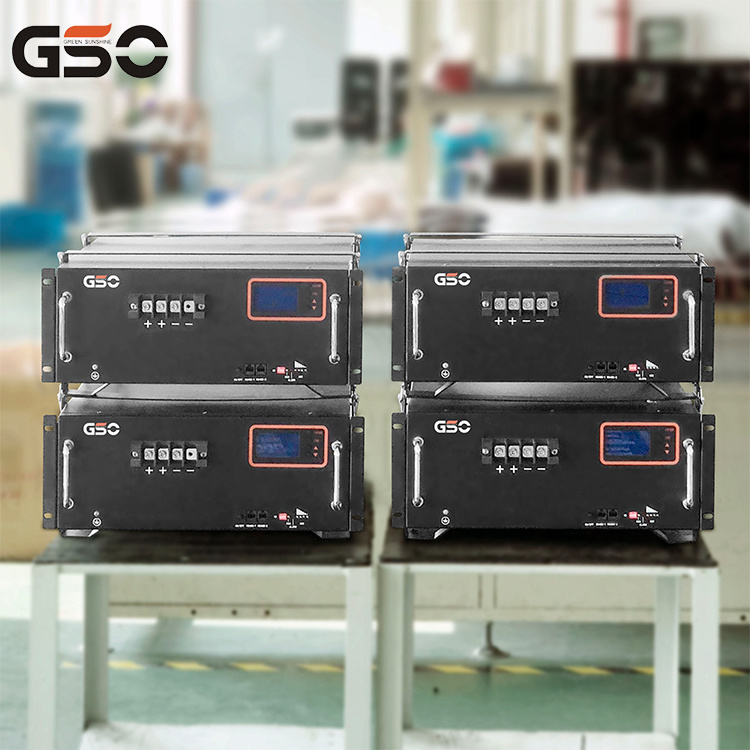

Products Description
Lithium ion battery have been deployed in varied places. From a small electronics battery to large energy storage and power driving batteries used in solar system, golf cart, medical equipment, electric mobility, power back up, ups and other application, lithium iron phosphate batteries are available in all shapes and sizes. And that renders them to be the perfect option for power needs irrespective of the size of the application devices.
This battery cell cyclelife is 5000 times at 80%DOD what we use is a smart BMS with many function here ,In the front of the battery you could see it has ON/OFF buttons ,Running light ,alarm light ,SOC light which could be show the battery capacity when you discharge and charge the battery.
|
Model
|
GBP48V-50AH
|
GBP48V-100AH
|
GBP48V-200AH
|
GBP48V-500AH
|
GBP48V-1000AH
|
||||
|
Nominal volt（V）
|
48
|
|
|
|
|
||||
|
Nominal capacity（AH）
|
50
|
100
|
200
|
500
|
1000
|
||||
|
Working volt range (V)
|
42-56.25
|
|
42-56.25
|
|
|
||||
|
Recommend charging volt（V）
|
52.5
|
|
|
|
|
||||
|
Recommend discharging cutoff volt（V）
|
45
|
|
|
|
|
||||
|
Standard charging current(A)
|
25
|
50
|
100
|
100
|
200
|
||||
|
Max. Constant charging current(A)
|
50
|
100
|
200
|
500
|
1000
|
||||
|
Standard discharging current（A）
|
25
|
50
|
100
|
100
|
200
|
||||
|
Max. Discharging current（A）
|
50
|
100
|
200
|
500
|
1000
|
||||
|
Temperature（℃）
|
-30℃～60℃(Recommend 10℃～35℃)
|
|
-30℃～60℃(Recommend 10℃～35℃)
|
|
|
||||
|
Allowable humidity range
|
0～85% RH
|
|
0～85% RH
|
|
|
||||
|
Storage temperature（℃）
|
-20℃～65℃(Recommend 10℃～35℃)
|
|
-20℃～65℃(Recommend 10℃～35℃)
|
|
|
||||
|
Protection Level
|
IP20
|
|
IP20
|
|
|
||||
|
Cooling method
|
Natural air cooling
|
|
Natural air cooling
|
|
|
||||
|
Maximum Dimension（W*D*H）for rack type
|
483*360*175
|
483*535*175
|
750*780*350
|
550*483*175*5
|
550*483*175*10
|
||||
|
Net Weight
|
30KG
|
56KG
|
114KG
|
280KG
|
560KG
|
||||
|
Battery Cell
|
A Grade Prismatic Cell
|
|
|
|
|
||||
|
Protection
|
Built-in Smart BMS
|
|
|
|
|
||||
Performance Test
Nominal Capacity
The battery pack is placed in a 25℃ environmental chamber,0.2C constant current and constant voltage to 54.65V, 0.05C cut-off,put it aside for 60 minutes; 1C discharge to 37.5V.
Rate Charging
The battery pack are charged at a constant current of 0.1C,0.2C,0.3C,0.5C,and 1C to 54.75V in an environment of 25℃.
Stop charging after the constant voltage reaches 0.05C, and record the charging test data under different magnifications.
Storage performance-place at room temperature
In a normal temperature environment,100% SOS storage for 28 days,test capacity retention and recovery rate(Test for 5 groups batteries)
Storage performance-place at high temperature
55℃,100%SOC storage 4*7 28 days,test capacity retention and recovery rate(Test average value for 5 groups batteries)
25
℃,0.2C constant current charge to 53.25V, constant voltage to 0.05C cut-off;after 30 minutes of storage,0.2C discharge Power to 42V,cycle to 80%SOC cut-off;
Related Products
Why Choose Us
About us
Packing & Delivery
FAQ
1. Are you factory or trade company?
As a professional manufacturer, our company has established in 2010. Our company has engaged in photovoltaic solar panel, inverter and power system for many years.
2.What is your advantage in photovoltaic products?
We could supply both solar panel and turnkey solution of solar system 25 years warranty of solar paenl.
3.What is the payment term?
By T/T, L/C, Credit Card, Alibaba Trade Assurance,etc.
4.How can guarantee quality?
2.What is your advantage in photovoltaic products?
We could supply both solar panel and turnkey solution of solar system 25 years warranty of solar paenl.
3.What is the payment term?
By T/T, L/C, Credit Card, Alibaba Trade Assurance,etc.
4.How can guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
5.Do you provide after-sales serive?
Yes,the warranty is 6 years, if any quality problems on our side in this period, we can send new one as replacement.
