Quick Details
-
Network:
-
NO/NC
-
Product name:
-
Ceiling Mounted Digital PIR Detector for Home Security
-
Function:
-
Intruder alarm
-
Type:
-
Wired alarm accessories
-
Application:
-
Burglar alarm system
-
Material:
-
ABS plastic & PCB board
-
Warranty:
-
2 years warranty
-
Color:
-
White
-
Power supply:
-
9~16V DC
-
Feature:
-
Ceiling mounted
-
Size:
-
106*36mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SMQT
-
Model Number:
-
EB-183
-
Network:
-
NO/NC
-
Product name:
-
Ceiling Mounted Digital PIR Detector for Home Security
-
Function:
-
Intruder alarm
-
Type:
-
Wired alarm accessories
-
Application:
-
Burglar alarm system
-
Material:
-
ABS plastic & PCB board
-
Warranty:
-
2 years warranty
-
Color:
-
White
-
Power supply:
-
9~16V DC
-
Feature:
-
Ceiling mounted
-
Size:
-
106*36mm
360 Degree PIR Infrared Motion Sensor Alarm Ceiling Mount Detectors High Sensitive Occupancy Pir Sensors
| Specification | |
| Product name | 360 Degree PIR Infrared Motion Sensor Alarm Ceiling Mount Detectors High Sensitive Occupancy Pir Sensors |
| Model | EB-183 |
| Size | φ106*35mm |
| Working voltage | 9~16V DC |
| Static current | 18mA(Under 12V DC power supply) |
| Alarm output | NO or NC DC28V max 100mA |
| Installation height | 2.5~6m |
| Alarm time | 2.2s min |
| Detecting distance | 8m(under 3.6m installation height) |
| Detecting angle | 360° |
| Working temperature | -10℃~50℃ |
| Storage temperature | -25℃~65℃ |
| Color | White |
| Weight | 0.1kg |
Features
EB-183 is passive ceiling mounted infrared detector with high stability. It has adopted advanced technology in signal processing and provided super high detection ability and anti error alarm. The detector will detect movement of human automatically when intruder passes through the detection area, and it will send out alarm signal to alarm host if there is movement, The product si suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.
What features of 360 Degree PIR Infrared Motion Sensor Alarm Ceiling Mount Detectors High Sensitive Occupancy Pir Sensors EB-183 ?

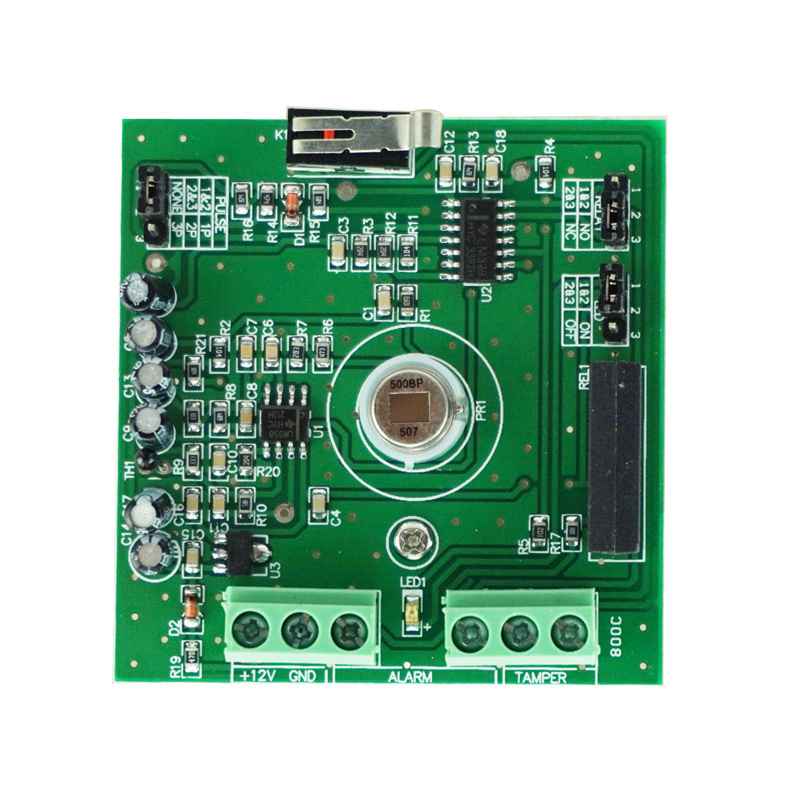

WHAT IS THE EB-183 LOOK LIKE?
HOW TO USE IT?
HOW ABOUT OTHER CHOICE?
HOW ABOUT OUR COMPANY?
CUSTOMER
EXHIBITION
CERTIFICATE
HOW TO COPERATION?
FAQ
Q:Can I have a sample order?
A:Yes, we are willing to offer trial sample order to you for quality test. Mixed samples areacceptable.
Q:What is the lead time?
A:Sample needs 1-3 working days, mass production time needs 10-15 working days.
Q:What is your MOQ?
A:No MOQ limit, the more quantity the more discounts.
Q:How do you ship the goods and how long does it take arrive?
A:The sample will be sent to you by optional shipping service (couriers, air, and sea),or appointed by buyer,7-15 days.
Q:How will we proceed the order if I have logo to print?
A:Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your
second confirmation before mass production
.
