Quick Details
-
Model Number:
-
DB15
-
Brand Name:
-
WIIR
-
Size:
-
1/2 Inch
-
Connection:
-
Male Thread
-
Installation:
-
Inside Side Inlet
-
Certificate:
-
CE
-
Life:
-
5-10 Years
Quick Details
-
Port Size:
-
20mm
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DB15
-
Brand Name:
-
WIIR
-
Size:
-
1/2 Inch
-
Connection:
-
Male Thread
-
Installation:
-
Inside Side Inlet
-
Certificate:
-
CE
-
Life:
-
5-10 Years

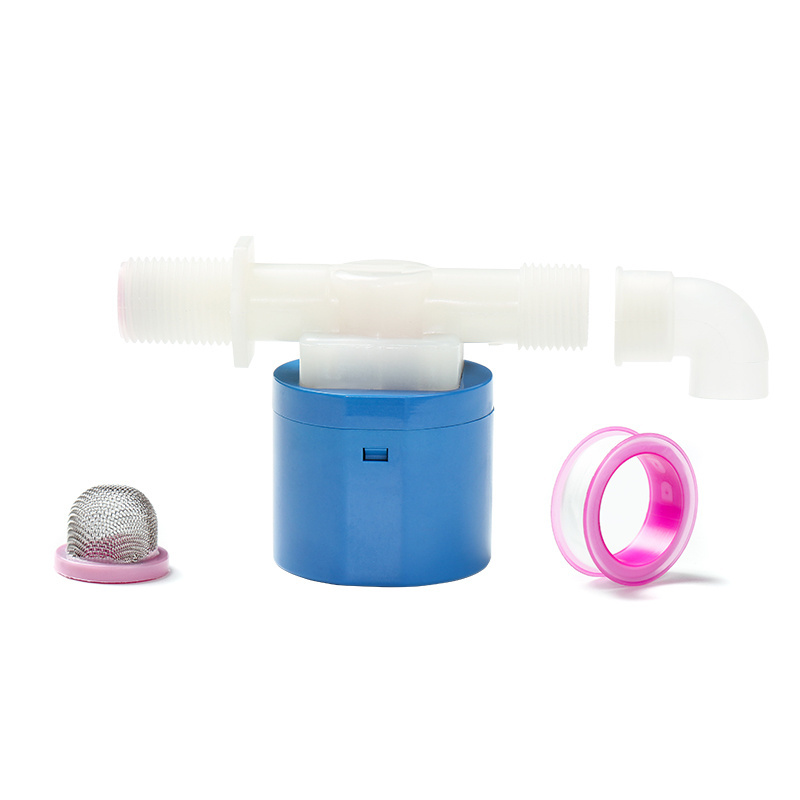

1/2 Inch Automatic Water Level Control Valve Tower Tank Floating Ball Valve Installed Inside The Tank
Description
1.This water level control valve is a patented product instead of traditional float valve .
2.It control the water supply and stop according to water level .
3.Small size ,large water discharge and can save more than 60% water .
4. Resisitant rust with stainless steel screw .
5. This water level control valve has been widely used in animal drinking water , water tank ,air cooler ,toilet , swimming pool , aquarium ,boiler ,solar energy .
FEATURE:
The AUTOMATIC WATER LEVEL CONTROL VALVE is a patented product, Instead of classic float valve. It automatically supply and stop water according to the water level change.
WORK PRINCIPLE:
When water level rise to water limit line , water level control valve will stop supplying water at once ; when water level of water tank fall down , the valve will start to supply water automatically.
| MODEL | SIZE | TYPE | MATERIAL | INSTALLATION | TEMPERATURE | WORK PRESSURE | APPLICABLE |
| DB15 | 1/2" | Side Inlet | Nylon & PC | INSIDE | ≤100° |
0.1-10KG 0.01-1.0MPa (1.5-150PSI) |
Clean Water |
| DBS15 | 1/2" | Top Inlet | |||||
| DB20 | 3/4" | Side Inlet | |||||
| DBS20 | 3 / 4 " | Top Inlet | |||||
| DB25 | 1 " | Side Inlet | |||||
| DBS25 | 1 " | Top Inlet |
