Quick Details
-
Product name:
-
sandblasting conveying machine
-
Application:
-
Metal Surface Cleaning
-
Usage:
-
Steel Sand Blasting Machine
-
Media:
-
Sand Media
-
Feature:
-
Environmental Protection
-
Function:
-
Surface Cleaning Machine
-
Other name:
-
Sanblasting Machine Sandblaster Equipment
-
Type:
-
Shot Blasting Machine Equipment
-
Keywords:
-
Conveying Automatic Sand Blasting Machine
-
Product type:
-
Sand Blasting Booth
Quick Details
-
Place of Origin:
-
henan China
-
Brand Name:
-
Yugong
-
Weight (KG):
-
500
-
Product name:
-
sandblasting conveying machine
-
Application:
-
Metal Surface Cleaning
-
Usage:
-
Steel Sand Blasting Machine
-
Media:
-
Sand Media
-
Feature:
-
Environmental Protection
-
Function:
-
Surface Cleaning Machine
-
Other name:
-
Sanblasting Machine Sandblaster Equipment
-
Type:
-
Shot Blasting Machine Equipment
-
Keywords:
-
Conveying Automatic Sand Blasting Machine
-
Product type:
-
Sand Blasting Booth

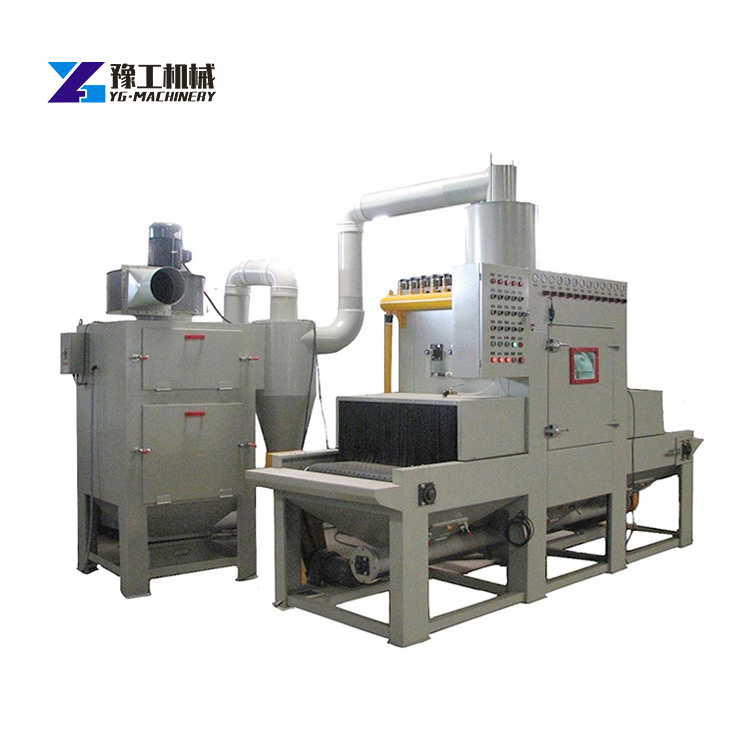

conveyor sandblasting machine
The double-sided dust-free automatic conveyor sandblasting machine adopts suction sandblasting, that is, the compressed air flows at high speed in the spray gun to form a negative pressure to produce an ejection effect, and the sand material in the cyclone separator tank is sucked into the spray gun through the sand conveying pipe Inside, then with the compressed air flow from the nozzle to the surface of the workpiece at high speed, to achieve the purpose of sandblasting the steel pipe.
Specification
|
item
|
YG-800
|
|
Machine size
|
3600*1800*2600mm
|
|
dust box size
|
1300*1300*2500mm
|
|
work max size
|
1200mm width, length is free
|
|
Speed
|
0.5-2m/min
|
|
machine effect
|
according to craft and material
|
|
spray gun quantity
|
8-16 pieces
|
|
Power supply
|
380V/50HZ,3 phase five wires
|
|
dust removal motor
|
7.5KW
|
|
separation air volume
|
10m3/min
|
|
compression air source
|
2-7bar(kg/cm3)
|
|
air source flow
|
8-16m3/min
|
|
noise
|
below 85db
|
|
dust emission
|
below 0.4mg
|
|
working environment temperature
|
-10-40degree
|
|
Total power
|
9.8KW
|
