1. Effective and reasonable configuration of the whole machine ensures a stable, reliable, and efficient operation process.
2. Quickly adjust the direction of planting the garlic head upward so that the root of the garlic is down and the head is up.
3. Precise seeding and efficient operation can improve the seeding efficiency and realize the mechanization of garlic seeding.
4. Using single gasoline power has the advantages of low cost, simple structure, and easy scale operation.
- Product Details
- {{item.text}}
Quick Details
-
Use:
-
Planter
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
IDEAL
-
Weight:
-
35 KG
-
Product name:
-
Seedling Planter
-
Usage:
-
Wheat Etc. Seeds Sowing
-
Function:
-
Seed Vegetable
-
Suitable for:
-
Small Farms
-
Working rows:
-
1-18rows Customized
-
Row spacing:
-
8-15cm
Quick Details
-
Number of Rows:
-
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
-
Type:
-
Planter, Manual Operated
-
Application:
-
Land
-
Use:
-
Planter
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
IDEAL
-
Weight:
-
35 KG
-
Product name:
-
Seedling Planter
-
Usage:
-
Wheat Etc. Seeds Sowing
-
Function:
-
Seed Vegetable
-
Suitable for:
-
Small Farms
-
Working rows:
-
1-18rows Customized
-
Row spacing:
-
8-15cm

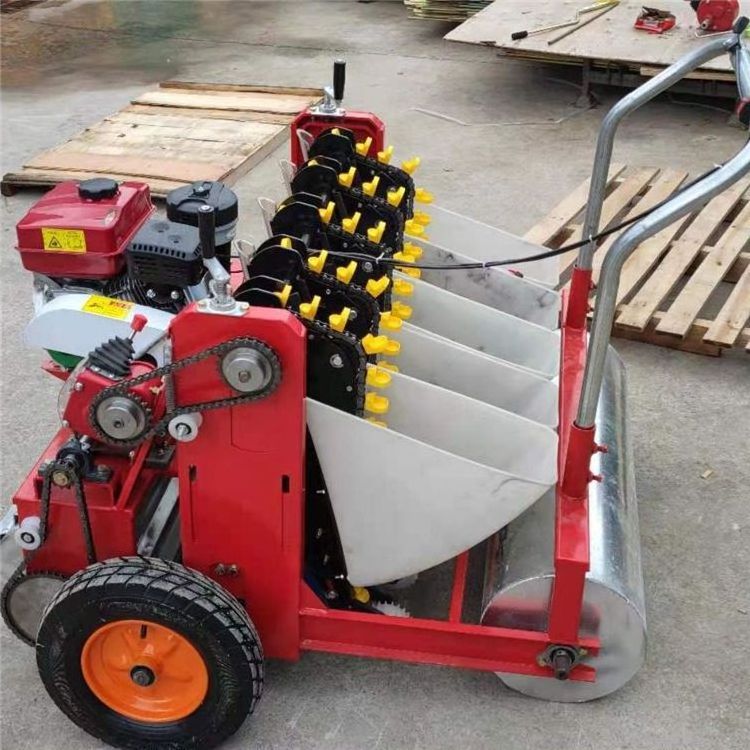

Widely Use Onion Seeder Automatic Agricultural Mechanical Garlic Planter
This
new garlic planter
can be used in both flat and hilly areas. It can achieve continuous sowing over a wide area by adjusting the direction of garlic roots. It has the advantages of
uniform sowing, low seed leakage rate, easy operation, and adjustment, and is the most popular garlic planter in the market at present.
Products Description
|
Model
|
GP-100
|
GP-200
|
GP-300
|
GP-400
|
GP-500
|
GP-600
|
|
Planting rows
|
1
|
2
|
3
|
4
|
5
|
6
|
|
Row spacing
|
/
|
20cm
|
20cm
|
22cm
|
22cm
|
20cm
|
|
Plant spacing
|
8-12cm adjustable
|
8-12cm adjustable
|
8-12cm adjustable
|
8-16cm adjustable
|
8-16cm adjustable
|
8-16cm adjustable
|
|
Planting depth
|
0-5cm adjustable
|
0-5cm adjustable
|
0-5cm adjustable
|
0-5cm adjustable
|
0-5cm adjustable
|
0-5cm adjustable
|
|
Size(L*W*H)
|
100*30*60cm
|
100*46*66cm
|
105*70*68cm
|
130*88*78cm
|
130*108*78cm
|
130*130*70cm
|
|
Approx. weight
|
25kg
|
35kg
|
50kg
|
80kg
|
95kg
|
150kg
|
|
Matched power
|
/
|
/
|
500W electric motor 48V12A storage battery
|
7.5hp gasoline engine
|
7.5hp
gasoline engine
|
12-25hp
Four-wheel tractor
|
|
Work efficiency
|
666m2/h
|
666m2/h
|
1000m2/h
|
1333m2/h
|
1333m2/h
|
2000m2/h
|
ADVANTAGE:
The direction of garlic should be adjusted quickly to make the garlic head up to ensure the survival rate of planting.
Intermittent continuous precise seed-counting ensures the spacing between rows and plants and the frequency of seed-counting.
The density of planting and uniformity coefficient of sowing.
The direction of garlic should be adjusted quickly to make the garlic head up to ensure the survival rate of planting.
Intermittent continuous precise seed-counting ensures the spacing between rows and plants and the frequency of seed-counting.
The density of planting and uniformity coefficient of sowing.
Product Overview
Details Images
The garlic planter adopts the technology of spot sowing and a conical spiral seed guide tube.
The size of the cone hole can ensure that the garlic clove in the soil will not tilt upward.
The structural size of the conical spiral seed guide tube determines the rate of garlic clove into the soil.
The structural size and center of gravity of garlic cloves are about three-thirds of the total length at the root of the big head.
The faster the falling speed and spinning speed of garlic cloves in the conical spiral seed guide tube, the higher the upward rate
of garlic cloves when they are buried in the soil.
Garlic harvester manufacturers operate garlic planters with complete models, including three lines, four lines, and five lines.
The size of the cone hole can ensure that the garlic clove in the soil will not tilt upward.
The structural size of the conical spiral seed guide tube determines the rate of garlic clove into the soil.
The structural size and center of gravity of garlic cloves are about three-thirds of the total length at the root of the big head.
The faster the falling speed and spinning speed of garlic cloves in the conical spiral seed guide tube, the higher the upward rate
of garlic cloves when they are buried in the soil.
Garlic harvester manufacturers operate garlic planters with complete models, including three lines, four lines, and five lines.
Product packaging
1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
