-- Briggs& Stratton "Vanguard" 23hp V-twin
--- 637cc displacement
--- Advanced Debris Management
--- 3-Year Commercial Engine Warranty
- Product Details
- {{item.text}}
Quick Details
-
Engine:
-
Petrol BRIGGS &STRATTON 23hp
-
Voltage:
-
12V
-
Battery:
-
YUSSA brand 45AH
-
Bucket:
-
4 in 1 bucket
-
Product name:
-
Mini digger loader bush ranger
-
Engine for optional:
-
Kohler engine made in USA
-
Color:
-
Yellow PANTO ID 7548
Quick Details
-
Engine Brand:
-
Briggs & Stratton
-
Power:
-
23 hp
-
Place of Origin:
-
Shandong, China
-
Engine:
-
Petrol BRIGGS &STRATTON 23hp
-
Voltage:
-
12V
-
Battery:
-
YUSSA brand 45AH
-
Bucket:
-
4 in 1 bucket
-
Product name:
-
Mini digger loader bush ranger
-
Engine for optional:
-
Kohler engine made in USA
-
Color:
-
Yellow PANTO ID 7548
Product Description

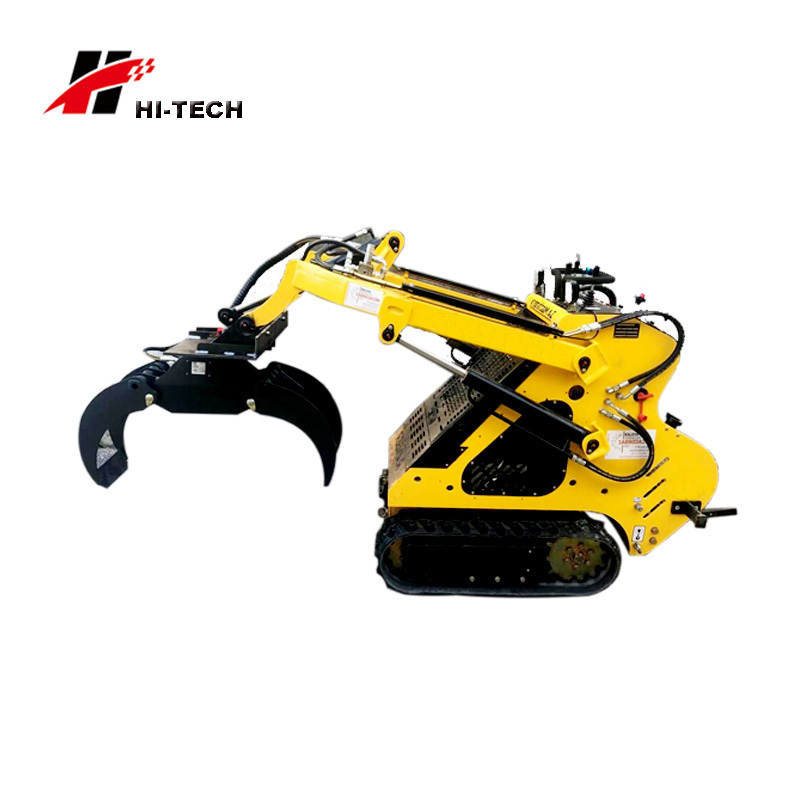

Product Application- Mini skid steer loader rubber tracked type model TY-323T with 4 in 1 bucket
- -The engine radiator is all-Aluminum, good for engine cooling.
---It is easier to get touch into the motor,pumps as
Swing -out the cooler.
TY-323T Feature and specification
✔ Loading capacity: 240kgs.
✔ Petrol Engine power: 23hp V-twin heavy duty.
✔
Hydraulic driving motor: USA WHITE big displacement.
✔
Bucket 4 in 1 capacity: 0.15m
3.
✔
Flow output: 58 L/min.
✔
Operating weight: 900kgs.
✔
840mm narrow width to access even door
✔ ISO standard Nipples on all friction points
✔ Blinking daily and night LED lights
✔ Automatically big diameter air cooler fan.
✔ Dumping foldable foot platform.
✔ Italy DNP flat faced quick coupling
1 - TY-323T mini rubber track loader is an excellent tool in tight sports like inside buildings or compact roadways where bigger machines cannot go.
2 -The combination of a powerful America engine and motor, Italy pumps, and other quality parts helps you to lift more than TY-323T listed.
3 - ISO standard rubber tracked flat designing, to do more rough terrain conditions, garden cleaning, trenching, landscaping, etc depending on the job site.
4 -1370mm total height, working stand up on the back, it has a wide wide view.
|
SPECIFICATION FOR MINI RUBBER TRACK LAODER TY-323T
|
|
|
|
|||
|
Item
|
Main description
|
Units - Metric
|
Units- US
|
|||
|
A
|
Overall operating height
|
2452mm
|
96.5 in
|
|||
|
B
|
Height to bucket hinge pin
|
1914mm
|
75.3 in
|
|||
|
C
|
Height to top of cab
|
1370mm
|
54 in
|
|||
|
D
|
Height to bottom of level bucket
|
1790mm
|
70.4 in
|
|||
|
E
|
Overall length without bucket
|
1740mm
|
68.5 in
|
|||
|
F
|
Overall length with bucket
|
2170mm
|
85.4 in
|
|||
|
G
|
Dumping angle at maximum height (°)
|
33.7
|
33.7
|
|||
|
H
|
Dumping height
|
1515mm
|
60 in
|
|||
|
I
|
Dumping reach
|
545mm
|
21.5 in
|
|||
|
J
|
Rollback of bucket on ground (°)
|
26
|
26
|
|||
|
K
|
Rollback of bucket at full height (°)
|
114
|
114
|
|||
|
L
|
Wheelbase
|
657mm
|
25.9 in
|
|||
|
M
|
Ground clearance
|
140mm
|
5.5 in
|
|||
|
N
|
Angle of departure (°)
|
23mm
|
23
|
|||
|
O
|
Turning radius front without bucket
|
801mm
|
31.5 in
|
|||
|
P
|
Front turning radius with bucket
|
1282mm
|
50.4 in
|
|||
|
Q
|
Rear turning radius
|
1026mm
|
40.5 in
|
|||
|
S
|
Tread width, centerline to centerline
|
960mm
|
37.8 in
|
|||
|
T
|
Width between outside of two wheels
|
1150mm/830mm
|
45.3 in
|
|||
|
U
|
Bucket width
|
1160mm/850mm
|
45.7 in
|
|||
Detailed Image
The heart of one machine-World Top Engine
Confortable Operating controls including:
--Two hand lever, drive machine and work lifting arm and bucket.
--One middle lever,
--operating various accessories
--- Hydraulic oil temperature meter
---Ammeter
---Hour meter
---Driving light button
---Cooling fans for engine
- --Voltage meter
---Hand throttle
Powerful double PERMCO pump:
- The engine radiator is all-Aluminum, good for engine cooling.
---It is easier to get touch into the motor,pumps as
Swing -out the cooler.
Air clean protecting your engine:
--It is Donaldson flatform 3-stage air filter.
--It is easy for replacement and cleaning
Multi-functional Attachments connector:
- -The engine radiator is all-Aluminum, good for engine cooling.
---It is easier to get touch into the motor,pumps as
Swing -out the cooler.
Swing- out engine cooler .
---Big radiator, good for engine cooling, engine cooling automatically started once the system temperature up to 85℃+
---It is easier to get touch into the motor, pumps as
Swing -out the cooler.
Fold-up foot platform:
- It is fold-up during your store the machines.
- It is dumping foot platform with high departure for rough terrain.
- The crocodile-type non-slip foot platform,
Also front protection proof driver.
What is your job site? To choose the multi-functional attachments, main listed as following but not all only these.
Landscapers
- Leveling bar to level the ground
-Grab bucket food for moving mulch, transporting trees,
branches for removal.
-cement/concrete mixer
-pallet fork
Electricians
- trencher / trench
-backhoe / simple backhoe
-breaker.
Fencing contractors
-Auger and bit
-cement, concrete mixer
Clean road:
-
snow blower
snow blade
-sweeper/ angle broom
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
|
Weight
|
0.8kgs
|
|
|
Packaging Details
|
The normal package when you order 1 or two units is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
