Quick Details
-
Voltage:
-
cutomized
-
Dimension(L*W*H):
-
loaded into 20GP
-
Weight (T):
-
15 T
-
Power (kW):
-
10
-
fuel used:
-
natural gas LPG propane
-
furnace type:
-
stationary
-
furnace melting capacity:
-
3000kg
-
refractory material:
-
casting material used
-
casting material life:
-
5 years on average
-
burner brand:
-
quality domestic brand
-
structure:
-
both melting and holding chamber
-
rated working temperature:
-
1200 degree celsius
-
temperature control accuracy:
-
±5℃
-
Weight:
-
15Ton
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Marketing Type:
-
New Product 2022
-
Brand Name:
-
WONDERY
-
Voltage:
-
cutomized
-
Dimension(L*W*H):
-
loaded into 20GP
-
Weight (T):
-
15 T
-
Power (kW):
-
10
-
fuel used:
-
natural gas LPG propane
-
furnace type:
-
stationary
-
furnace melting capacity:
-
3000kg
-
refractory material:
-
casting material used
-
casting material life:
-
5 years on average
-
burner brand:
-
quality domestic brand
-
structure:
-
both melting and holding chamber
-
rated working temperature:
-
1200 degree celsius
-
temperature control accuracy:
-
±5℃
-
Weight:
-
15Ton
Product Application

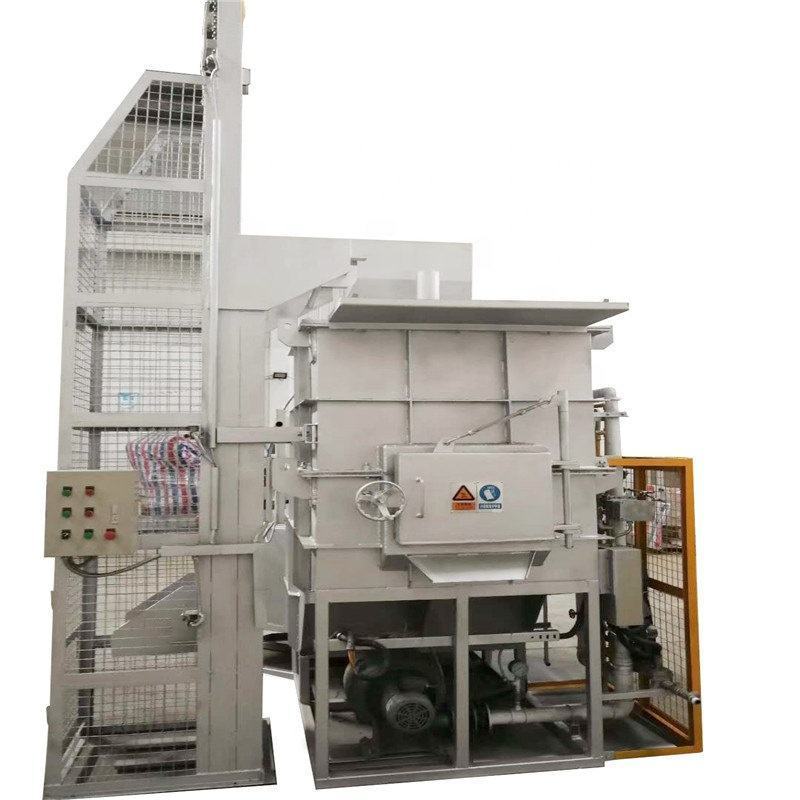

Gas Fired Continuous Reverberatory Melting And Holding Industrial Furnace has a compact structure for both melting and holding aluminum liquid. The melting chamber is formed by once-forming casting material, which has a high strength and a long service life. The furnace is equipped with famous brand burner, which has functions of automatic ignition and temperature control. The furnace also has an over-temperature alarm device.
|
Technical Parameters For Gas Fired Continuous Reverberatory Melting And Holding Industrial Furnace
|
|
|
|
|||
|
Melting pool capacity
|
3000kg
|
Melting rate
|
1000kg/hour
|
|||
|
Fuel
|
natural gas LPG propane
|
fuel gas consumption
|
90-100m3 per ton aluminum
|
|||
|
Rated working temperature of melting chamber
|
850℃ (atmosphere temperature)
|
Temperature control accuracy
|
±5℃ (aluminum liquid)
|
|||
|
Burner power of melting chamber
|
300,000Kcal/set
|
Burner power of holding chamber
|
200,000Kcal/set
|
|||
|
Refractory lining
|
castable materail; high-aluminum bricks
|
Burning system
|
separate body type gas burner
|
|||
|
Aluminum liquid level control system
|
Ormon brand
|
Automatic loading device
|
chain type loading cart (200kg per time)
|
|||
Main Features
1 ) The furnace employs the bright flame burner to reduce generation of oxides and improve the radiation capacity of the flame. Combustion is complete, and heat efficiency is high.
2 ) The metal loss rate is less than 1.5%.
3 ) The furnace body has a compact and firm structure. It is scientifically designed without dead corners, and easily cleaned.
4 ) The fume heat is utilized to save energy loss and improve heat efficiency. The heat efficiency reaches more than 50%.
5 ) The furnace works with a variety of fuels, such as natural gas and liquefied gas.
6 ) The hearth employs quality once-forming casting material with a service life of more than 5 years.
7 ) The control system employs the advanced PLC and touch screen system with easy operation, safety, reliability, and easy maintenance.
|
Model
|
Melting Rate (kg/h)
|
Holding Capacity (kg)
|
Height (mm)
|
Long (mm)
|
Width (mm)
|
|
WR-RJL-300
|
300
|
1000
|
5000
|
4350
|
2650
|
|
WR-RJL-500
|
500
|
1500
|
5100
|
4650
|
3000
|
|
WR-RJL-750
|
750
|
2000
|
5500
|
3800
|
3600
|
|
WR-RJL-1000
|
1000
|
3000
|
5500
|
4200
|
3800
|
|
WR-RJL-1500
|
1500
|
4000
|
6450
|
4550
|
4000
|
|
WR-RJL-2000
|
2000
|
5000
|
6600
|
4700
|
4000
|
|
WR-RJL-2500
|
2500
|
6000
|
6600
|
4980
|
4000
|
|
WR-RJL-3000
|
3000
|
8000
|
6800
|
5150
|
4000
|
