- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Application:
-
Transportation
-
Product name:
-
iron core polyurethane caster
-
Color:
-
RED
-
Wheel material:
-
Iron Core PU
-
Load Capacity:
-
400kg
-
Wheel Diameter:
-
100/125/150/200mm
-
Bearing:
-
Double bearing
-
Tread Width:
-
50mm
-
MOQ:
-
200pcs
-
Size:
-
4" 5" 6" 8"
Quick Details
-
Material:
-
Iron, POLYURETHANE, Steel
-
Type:
-
Plate Casters, Side-Mount Casters
-
Model Number:
-
TJ-2206
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Application:
-
Transportation
-
Product name:
-
iron core polyurethane caster
-
Color:
-
RED
-
Wheel material:
-
Iron Core PU
-
Load Capacity:
-
400kg
-
Wheel Diameter:
-
100/125/150/200mm
-
Bearing:
-
Double bearing
-
Tread Width:
-
50mm
-
MOQ:
-
200pcs
-
Size:
-
4" 5" 6" 8"

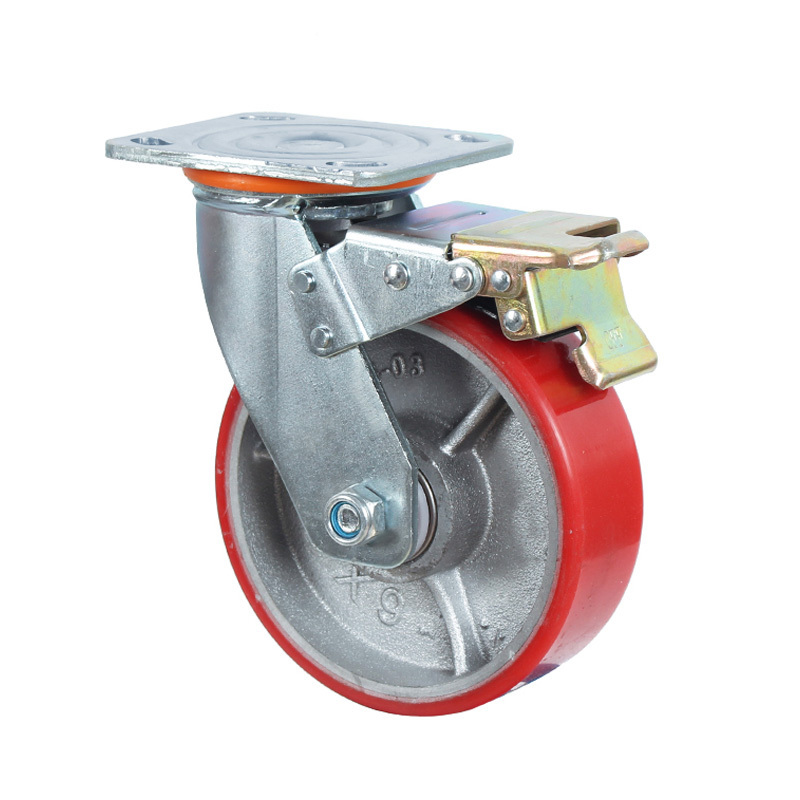

Industrial pu caster wheels 6 inch heavy duty lock swivel iron core polyurethane caster
Recommend Products
Characteristics of different material casters
1. PU casters: Whether the casters work indoors or outdoors, they can meet your
requirements.
requirements.
2. TRP casters: They can be used in the situations that require less noise and work quietly, like working in hotels,
on medical equipment, on floors, on wooden floors, on tile floors ....
on medical equipment, on floors, on wooden floors, on tile floors ....
3. Nylon casters and iron casters: The casters are suitable for the places where the ground is uneven or where there are iron scraps on the ground.
4. Rubber casters: The casters are inappropriate under the condition of acid, grease and chemicals. 5. Pneumatic casters: The casters are suitable for light load and the uneven roads .
Products Description
Size: 4*2inches,5*2inches,6*2inches,8*2 inches;
Type: Rigid, swivel, side brake, rear brake
Type: top plate fixed,top plate swivel
,top plate brake,
Insert rod swivel,
Insert rod brake
|
Size
|
4 inch
|
5 inch
|
6 inch
|
8inch
|
|||
|
diameter
|
100mm
|
125mm
|
150mm
|
200mm
|
|||
|
width
|
50mm
|
30mm
|
30mm
|
|
|||
|
installation height
|
137mm
|
164mm
|
190mm
|
240mm
|
|||
|
Square plate thickness
|
5/5.75mm
|
3mm
|
3mm
|
|
|||
|
Bracket thickness
|
5/5.75mm
|
2.5mm
|
2.5mm
|
|
|||
|
Bearing form
|
double 6202 ball bearing
|
double 6202 ball bearing
|
double 6203 ball bearing
|
double 6203 ball bearing
|
|||
|
Capacity
|
200kg
|
250kg
|
300kg
|
350kg
|
|||
|
Installation size
|
85*75mm
|
|
|
|
|||
|
Square plate size
|
115*100mm
|
|
|
|
|||
|
Hole Size
|
12mm
|
|
|
|
|||
|
Material
|
1. Thickened Steel Bracket 2. Enviroment pu Wheels 3. Plastic Core
|
|
|
|
|||
|
Mounting Way
|
1.Rigid 2.Top Plate/Stem Swivel 3.Top Plate /Stem with Brake
|
|
|
|
|||
360° strong balls: enough balls, butter inside, small bracket gap, labor-saving and safe.
High quality polyurethane wheel: high elasticity, push and wear resistance.
High quality screw accessories: Sturdy preferred accessories.
