Quick Details
-
Sample Size:
-
0.75"(20mm)
-
Measuring Range:
-
0~20%
-
Electric Balance:
-
0~300g
-
Product name:
-
Speedy Moisture Content Tester
Quick Details
-
Power:
-
Hydraulic
-
Place of Origin:
-
Hebei, China
-
Standard:
-
BS 812, ASTM D4944, AASHTO T217
-
Sample Size:
-
0.75"(20mm)
-
Measuring Range:
-
0~20%
-
Electric Balance:
-
0~300g
-
Product name:
-
Speedy Moisture Content Tester
Description:
Speedy Moisture Content Tester
speedy moisture tester

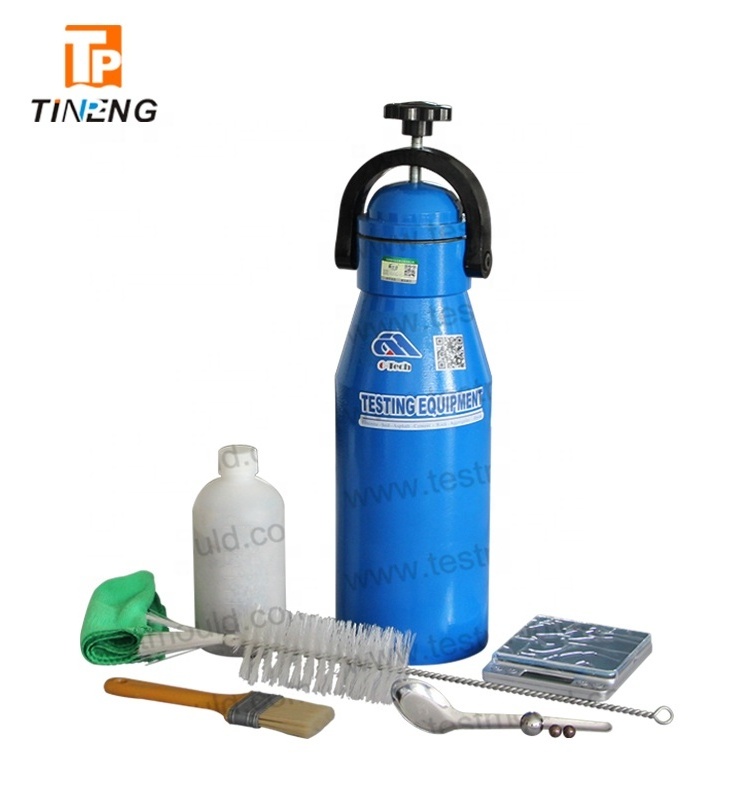

Speedy moisture tester is a portable system for measuring the moisture content of a wide range of materials including soils, aggregates, dust and powders (and liquids). The system consists of a low pressure vessel fitted with a pressure gauge and an electronic scale and test accessories.
30 type is suitable for various soil with particle size <5mm (including sand), lime, fly ash and other homogeneous material moisture content determination. 200 type is suitable for measuring water content of the coarse grained soil.
Technical parameters:
| 1, designed measure temperature: 20 ± 5 ℃ |
| 2, designed maximum pressure: 4Mpa |
| 3, maximum working pressure: 0.3MPa |
| 4, air tightness test pressure: 0.4MPa |
| 5, the test material weight: 30g |
| 6, the moisture measurement content range of 0-30% |
| 7, ratio method measure the range: 0-85% |
