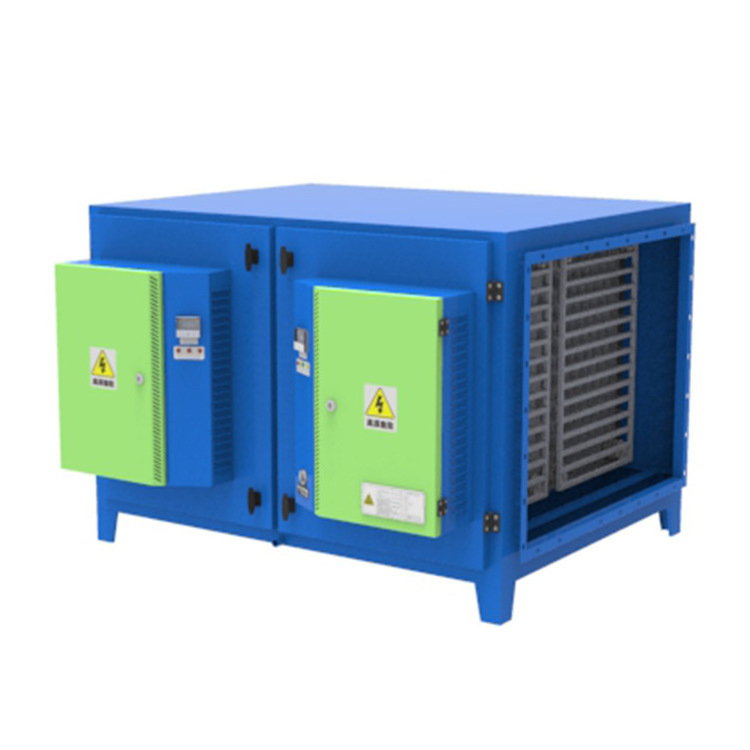

Our electrostatic recipitator is used to purify the commercial kitchen cooking & grilling fume grease with advanced electrostatic precipitator technology.
After using it, the fume can be effectively removed with over 98% purification efficiency. No smoke can be seen at the outlet. Most of odor can also be removed.
It is widely used in the kitchens of hotels, restaurants, enterprises and universities.
【Specification】
Cubic ESP - Series B
98% smoke purifying rate
90% odor purifying rate
Windage: 180 Pa
Outlet position: low altitude discharging available
Material of Housing: cold rolled steel with electrostatic coating
Material of Fume Collectors: galvanized iron sheet
Certification: ISO, CE, Chinese national technology patents.
|
No.
|
Model
|
Air flow
(M3/Hr)
|
Volume
L*W*H(mm)
|
flanged(inner)
A1*B1
|
Power
(w)
|
Net Weight (kg)
|
|||||
|
1
|
4000
|
1493*1021*788
|
615*523
|
820
|
130
|
||||||
|
2
|
6000
|
1493*1120*903
|
714*638
|
1200
|
180
|
||||||
|
3
|
8000
|
1493*1323*1024
|
917*758
|
1400
|
230
|
||||||
|
4
|
10000
|
1546*1553*1038
|
1152*764
|
1600
|
300
|
||||||
|
5
|
12000
|
1546*1553*1137
|
1152*862
|
1800
|
360
|
||||||
|
6
|
14000
|
1546*1382*1452
|
981*1177
|
2200
|
450
|
||||||
|
7
|
16000
|
1546*1438*1452
|
1038*1177
|
2400
|
600
|
||||||
|
8
|
20000
|
1546*1555*1452
|
1152*1177
|
2600
|
680
|
||||||
|
9
|
24000
|
1546*1598*1605
|
1197*1330
|
2700
|
730
|
||||||
|
10
|
28000
|
1546*1795*1605
|
1394*1330
|
2800
|
800
|
||||||
|
11
|
32000
|
1546*1993*1605
|
1592*1330
|
3200
|
860
|
||||||
|
12
|
36000
|
1546*2175*1615
|
1775*1340
|
3400
|
920
|
||||||
|
13
|
40000
|
1546*2375*1615
|
1972*1340
|
3600
|
1080
|
||||||
|
14
|
60000
|
1546*2208*2055
|
1807*1780
|
4200
|
1800
|
||||||
|
|
Click the model you need to ask for the
PRICE
right now.
|
|
|
|
|
|
|||||
automatically adapt to the working conditions
overload protection
short-circuit protection
no-load protection
3D structure transformer
low temperature rise & long service life
excellent rigidity
not easily deformed
powerful blue tip discharge makes high efficiency
ionize and decompose most of odor
Stabilize the equipment
prolong the life cycle of the smoke collector,
reduce cleaning and maintenance work.
Most parts can be quickly disassembled on site for easy installation and maintenance.
1. Q: What is the material of your equipment?
A: In order to guarantee quality,We use A3 steel sheet to make machine cover. The electrostatic honeycomb is made from all stainless steel. This honeycomb technology is owned by only a few companies in China.
2.Q: How does your factory do regarding quality control?
A:We value quality as highly as you do. We have CE certification and ISO9001 certification which is the most authoritative certificate of quality inspection in China.
3. Q:Are you a factory or trading company?
A: We are the professional manufacturer,our team has committed to the electrostatic precipitator business for more than 10 years. We sincerely welcome you visit our factory at any time.
We located in Nanning City, Guangxi Province, China.
4.Q:Can you offer the OEM for us?
A:We welcome you to be our OEM client and we are willing to discuss all the details and requirements with you before we issue a formal plan.
5. Q:What is your minimum order quantity?
A:We welcome one-unit trial.
We believe that trying a small order then making a big decision is a necessary step before we build up a long term cooperation.
6.Q:Why choose you?
A: Our technical team will be a great backbone in every project, from the very beginning to after-sale service.
Our self-developed intelligent power supply can make sure operation steady with high security.
It can help to save the maintenance cost and time with long service life, maximizing the expectant benefits.
