Quick Details
-
Voltage:
-
220V/380V/400V/415V
-
Dimension(L*W*H):
-
2130*1980*2180MM
-
Weight:
-
1200KG
-
Air capacity:
-
3.4/4.5M3/MIN
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OPPAIR
-
Model Number:
-
Laser-40PV/16, Laser-50PV/16
-
Voltage:
-
220V/380V/400V/415V
-
Dimension(L*W*H):
-
2130*1980*2180MM
-
Weight:
-
1200KG
-
Air capacity:
-
3.4/4.5M3/MIN
Specification
|

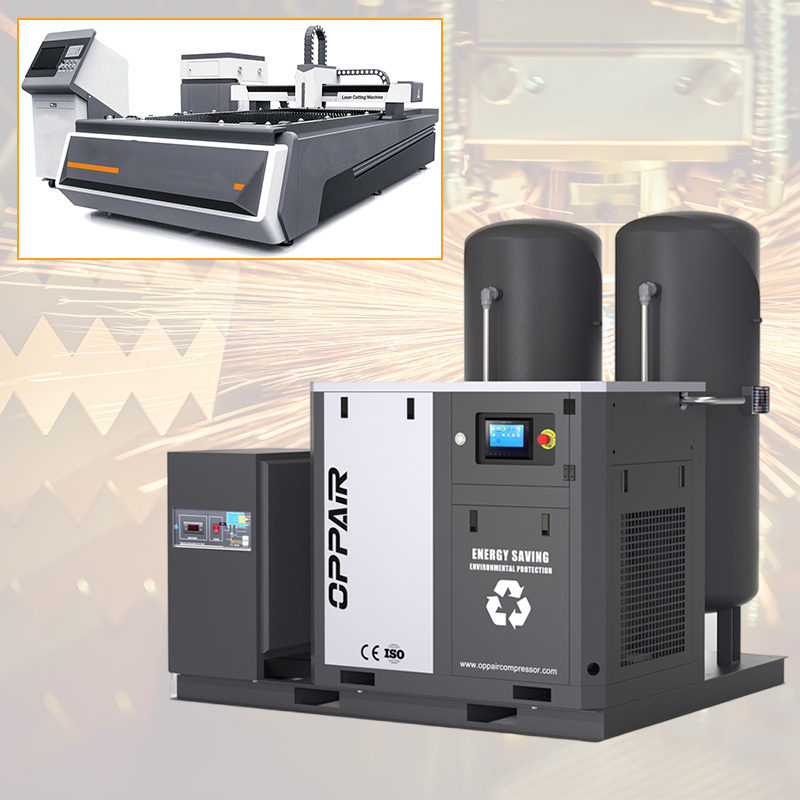

Skid Mounted Compressor For Laser Cutting
|
|
|
|
|||
|
Model
|
|
Laser-40PV/16
|
Laser-50PV/16
|
|||
|
Power(kw)
|
|
30
|
37
|
|||
|
Horsepower(hp)
|
|
40
|
50
|
|||
|
Air displacement/
Working pressure (m³/min. / bar) |
|
3.4/16
|
4.5 / 16
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
Air Tank(L)
|
|
600*2
|
600*2
|
|||
|
Air outlet diameter
|
|
DN25
|
DN25
|
|||
|
Type
|
|
PM VSD
|
PM VSD
|
|||
|
Driven method
|
|
Direct driven
|
Direct driven
|
|||
|
Start method
|
|
PM VSD
|
PM VSD
|
|||
|
Length (mm)
|
|
2130
|
2130
|
|||
|
Width (mm)
|
|
1980
|
1980
|
|||
|
Height (mm)
|
|
2180
|
2180
|
|||
|
Weight (kg)
|
|
1200
|
1400
|
|||
Compressor Features:
(1)IE3/IE4 permanent magnet motor
(2)Constant voltage/mute
(3)Automotive grade design
(4)Small footprint
(5)
Light
in weight
(6)Easy to
install
and easy to
maintain
(7)
Five-stage
filtration,the maximum protection of your laser cutting machine
P.S:
The displayed price is for 380V 50HZ 3P, while the price for 400V/415V/220V/440V may be slightly higher. Please contact our sales personnel for specific prices.
