1.This machine equipped with a heatable micro perforating roller and a special brush-type pressure roller to make pinhole in the
materials
2.The Plastic PE PP Film with pinhole is widely used in packaging films such as bread, food, flowers and other industrial
perforated breathable products covering the field of film perforation in many industries.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
zhengjiang
-
Voltage:
-
18KW
-
Dimension(L*W*H):
-
3190*2370*1420mm
-
Weight:
-
2600 kg
-
Machine Model:
-
DBWSFQ200-1350
-
Roll surface width:
-
1350mm
-
Max unwind diameter:
-
1200mm
-
Max rewinding diameter:
-
600mm
-
Slitting speed:
-
10-200/min
-
Slitting precision:
-
±0.1mm
-
Thickness of slit material:
-
20-500g/m²
-
Total power (KW):
-
9KW
-
Overall dimension:
-
3190*2370*1420mm
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
200 m/min
-
Max. workable width:
-
1350mm
-
Place of Origin:
-
zhengjiang
-
Voltage:
-
18KW
-
Dimension(L*W*H):
-
3190*2370*1420mm
-
Weight:
-
2600 kg
-
Machine Model:
-
DBWSFQ200-1350
-
Roll surface width:
-
1350mm
-
Max unwind diameter:
-
1200mm
-
Max rewinding diameter:
-
600mm
-
Slitting speed:
-
10-200/min
-
Slitting precision:
-
±0.1mm
-
Thickness of slit material:
-
20-500g/m²
-
Total power (KW):
-
9KW
-
Overall dimension:
-
3190*2370*1420mm
Products Description
Introduction
The whole machine frame is made of iron plate, with extremely high precision and stability.
Applica ti o n
The machine is suitable for slitting rewind all kinds of film PP,PE,PVC shrink film...etc.
Machine Feature
1.The whole machine is driving by Double servomotor.
2.Photoelectric EPC system.
3.Automatic constant tension of unwinding and rewinding by magnetic powder brake and clutch.
4.Rewinding and unwinding adopts air shaft.
5.Guide roller is plated with hard chromium, which makes the guide roller hard, wear-resistant, mild and corrosion-resistant.
6. The standard machine equipped with 1 set(10 pcs)straight knife , circular knivesis optional.
7. The machine has the auto functions like automatic counting meter, emergency stop, alarm etc.
|
Model
|
DBWSFQ200-1350
|
|
Slitting speed
|
10-200m/min
|
|
Maximum material width
|
50-1350mm
|
|
Slitting width
|
20-1350mm
|
|
Thickness of slit material
|
20-500g/m²
|
|
Slitting precision
|
±0.1mm
|
|
Maximum Unwind Diameter
|
1200mm
|
|
Maximum rewinding diameter
|
600mm
|
|
Deskewing method
|
CCD
|
|
Tension control mode
|
PLC控制
|
|
Total power (KW)
|
9KW
|
|
Machine weight
|
2600kg
|
|
Machine size (mm) L×W×H
|
3190×2370×1420mm
|
Sample Display

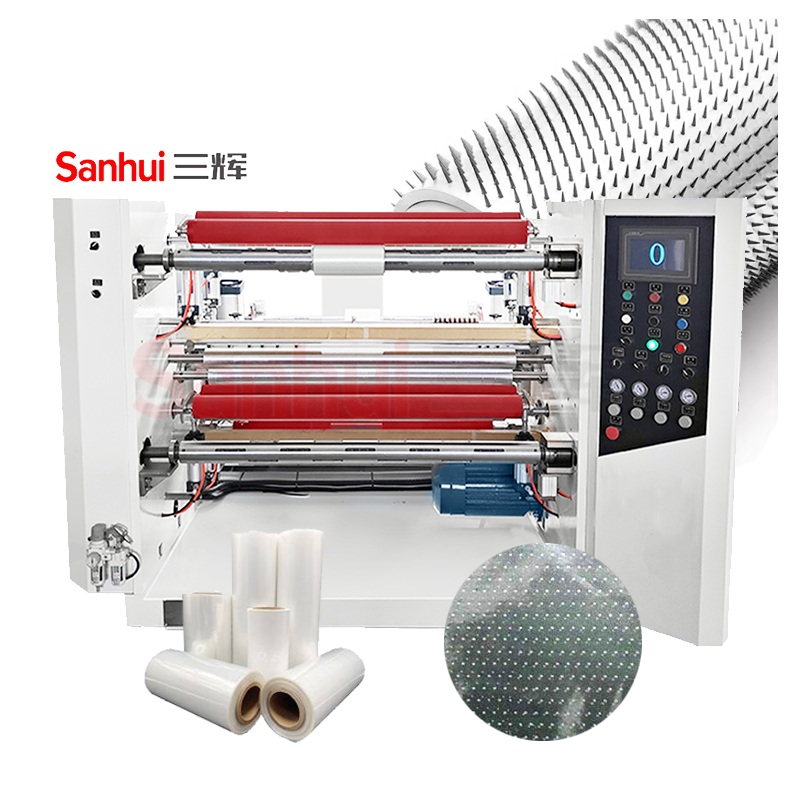

All kinds of film PET PP PE Breathable film hole making machine hot needle micro perforating slitting machine
Machine Inroduction
Detail display
1 Unwinding Unit
1.Pneumatic cylinder auto loading,easy to lift heavier roll
2.unwinding is controlled by magnetic powder brake
3.unwinding adopts air shaft.
2.unwinding is controlled by magnetic powder brake
3.unwinding adopts air shaft.
2 Arise correction EPC
1.Unwinding edge position control adopts Photoelectric EPC system
3 Traction and Driving Unit
1.Guide roller is plated with hard chromium, which makes the guide roller hard, wear-resistant, mild and corrosion-resistant.
2.The whole machine is driving by 2 servo motors
2.The whole machine is driving by 2 servo motors
4 micro perforating unit
5 Slitting Unit
1.This machine is equipped with 1 set Straight knives,and the knife holder adopts safety protective cover
6 rewinding unit
1.Rewinding is controlled by magnetic powder brake
2.Two rewinding roller,and rewinding adopts air shaft.
3.Single side swing discharging way
2.Two rewinding roller,and rewinding adopts air shaft.
3.Single side swing discharging way
7
Electrical part
1.PLC+Touch screen，easy to operate
2.The machine has the auto functions like automatic counting meter, emergency stop, alarm etc.
2.The machine has the auto functions like automatic counting meter, emergency stop, alarm etc.
