Quick Details
-
Voltage:
-
380V /220V/440V
-
Power:
-
according
-
Dimension(L*W*H):
-
Accroding
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001
-
Weight:
-
Customized Dimension
-
type of material:
-
pure aluminum, aluminum alloy
-
item name:
-
Hydraulic extrusion machine
-
External dimension:
-
7*2.8*3.2m
-
Dimension range of aluminum bar:
-
ID:80-110 L:450mm
-
The total power of motor:
-
55kw
-
The inner hole range of extrusion tube:
-
ID:116 L:500mm
-
Open speed of container:
-
83mm/s
-
Shear dropping speed:
-
216mm/s
-
shear rising speed:
-
442mm/s
-
Extrusion working speed:
-
8.8mm/s
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
FXAJ300
-
Brand Name:
-
China Electric
-
Voltage:
-
380V /220V/440V
-
Power:
-
according
-
Dimension(L*W*H):
-
Accroding
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001
-
Weight:
-
Customized Dimension
-
type of material:
-
pure aluminum, aluminum alloy
-
item name:
-
Hydraulic extrusion machine
-
External dimension:
-
7*2.8*3.2m
-
Dimension range of aluminum bar:
-
ID:80-110 L:450mm
-
The total power of motor:
-
55kw
-
The inner hole range of extrusion tube:
-
ID:116 L:500mm
-
Open speed of container:
-
83mm/s
-
Shear dropping speed:
-
216mm/s
-
shear rising speed:
-
442mm/s
-
Extrusion working speed:
-
8.8mm/s

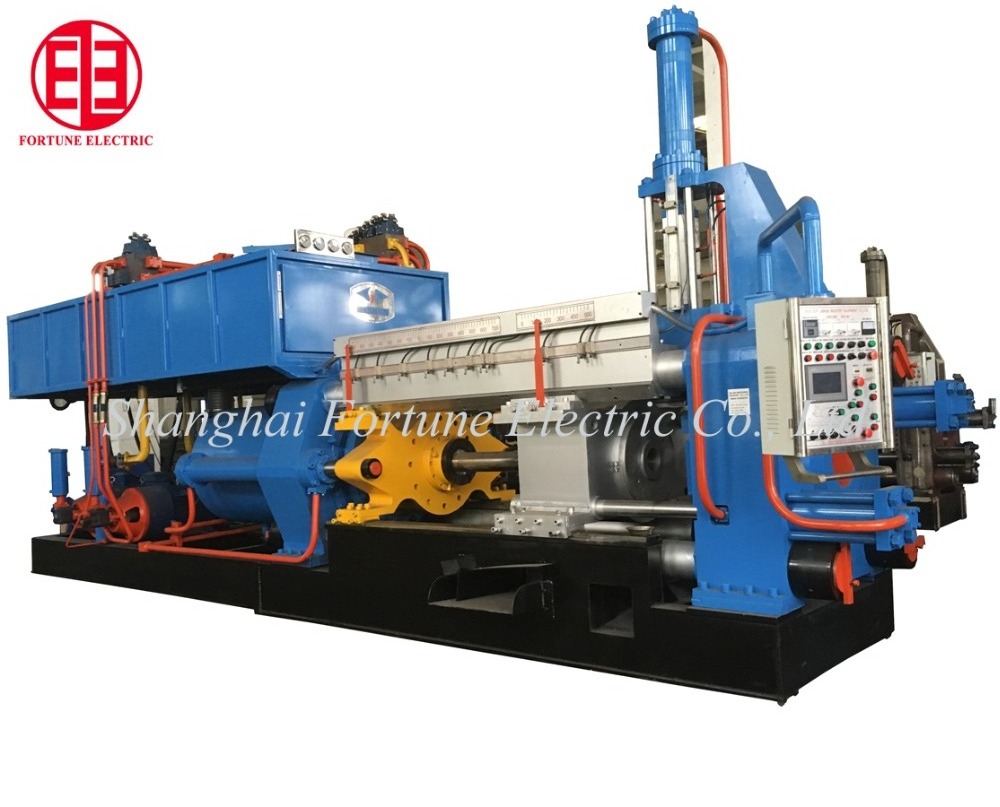

Horizontal type hydraulic aluminum/brass profile extrusion machine
|
NO. |
Item |
Type |
QTT |
|
|
1 |
Main cylinder |
Material:ZG35 forgging steel, labor aging treatment |
|
|
|
2 |
Master plunger |
Material: Alloy cold hard casting iron,The hardness of surface HRC50 |
|
|
|
3 |
Main cylinder guiding sleeve |
Material:QT50 |
|
|
|
4 |
Former Beam |
Material: Casting Steel ZG270-500.Labor aging treatment |
|
|
|
Thickness:310mm |
|
|||
|
5 |
Rising strength column |
Material:45# steel forging, thermal refining |
|
|
|
Size:Φ155mm |
|
|||
|
6 |
Portable Beam |
Material: Steel casting ZG270-500,labor aging treatment |
|
|
|
7 |
Motor Base |
32# channel steel welding, tempering treatment |
|
|
|
8 |
Container outer sleeve |
42crmo heat treatment:HRC48~52 |
|
|
|
9 |
Container inner sleeve |
Material:H13 Heat treatment: HRC48~52 |
|
|
|
10 |
Extrusion Rod |
Material:H13 Heat treatment: HRC48~52 |
|
|
|
11 |
Dimension |
Main cylinder |
The Diameter of Cylinder:Φ600mm |
|
|
Stoke:1100mm |
|
|||
|
Lateral Cylinder |
The Diameter of Cylinder:Φ125 mm |
|
||
|
The Diameter of rod: Φ 90mm |
|
|||
|
Locking Cylinder |
The Diameter of Cylinder:Φ140 mm |
|
||
|
The Diameter of rod:Φ80mm |
|
|||
|
Shearing Cylinder |
The Diameter of Cylinder:Φ150mm |
|
||
|
The Diameter of rod:Φ100mm |
|
|||
|
Moving Mould Cylinder |
The Diameter of Cylinder:Φ110mm |
|
||
|
The Diameter of rod:Φ55mm |
|
|||
|
Supplying ingot cylinder |
The Diameter of Cylinder:Φ80mm |
|
||
|
The Diameter of rod:Φ45mm |
|
|||
Reference pictures:
As a professional manufacturer and exporter of metallurgical machinery and euipment, we are specialized in the design, research and developments, manufacture, sales and service of metallurgical casting equipment. Owning the advanced technology and experienced engineer team, we provide professional solutions to the field of metallurgical machinery and equipment.
After more than twenty-year operation, we have formed complete metallurgical equipment supply chains. All of our products conform to the international quality standards and win extremely great reputation in a variety of markets throughout the world. Nowadays, we have cooperated with many well-know domestic and foreign companies as a gold supplier.
Our main products include induction melting furnace, continuous casting machine, rolling mill and other ralated metallurgy and casting equipment.
We sincerely welcome the old and new clients to communicate and negotiate with us. We are willing to work with you hand in hand to develop forward together and creat brilliant future.
1. Inquiry response within 24 hour.
2. Ensure every quatation is practical &customized according to your requirement.
3. P rovide the design suggestions and layout plan for the clients workshop.
4. P rovide the technical specification of the auxiliary facilities.
5. Provide p rofessional installation drawing before order.
6. Engeneers are available to serve the machines overseas.
7. Our factory always welcome to your visit. We can take you to visit our local customers.
8. Quality assurance: 12 months except consumable parts.
