Quick Details
-
Production Capacity:
-
100sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
otomic
-
Voltage:
-
220V(customized:240V)
-
Weight:
-
3800 kg
-
Application:
-
Marble And Granit Cutting
-
Feature:
-
High Strength
-
Motor & Driver:
-
850w Japan YASKAWA servo motor
-
Effective Working Area:
-
2100*1300mm
-
Inverter:
-
Fuling inverter
-
Tool Magazine:
-
8 tools Carousel magazines
-
Lubrication System:
-
Automatic Lubrication System
-
Working Voltage:
-
380V, 3Phase, 50Hz customizable
-
Table Surface:
-
T-slot work table with water tank; Sink work table
-
Water mist cooling system:
-
Water mist cooling spray
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
1.8 KW
-
Cutting thickness (max):
-
depend on material
-
Production Capacity:
-
100sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
otomic
-
Voltage:
-
220V(customized:240V)
-
Weight:
-
3800 kg
-
Application:
-
Marble And Granit Cutting
-
Feature:
-
High Strength
-
Motor & Driver:
-
850w Japan YASKAWA servo motor
-
Effective Working Area:
-
2100*1300mm
-
Inverter:
-
Fuling inverter
-
Tool Magazine:
-
8 tools Carousel magazines
-
Lubrication System:
-
Automatic Lubrication System
-
Working Voltage:
-
380V, 3Phase, 50Hz customizable
-
Table Surface:
-
T-slot work table with water tank; Sink work table
-
Water mist cooling system:
-
Water mist cooling spray

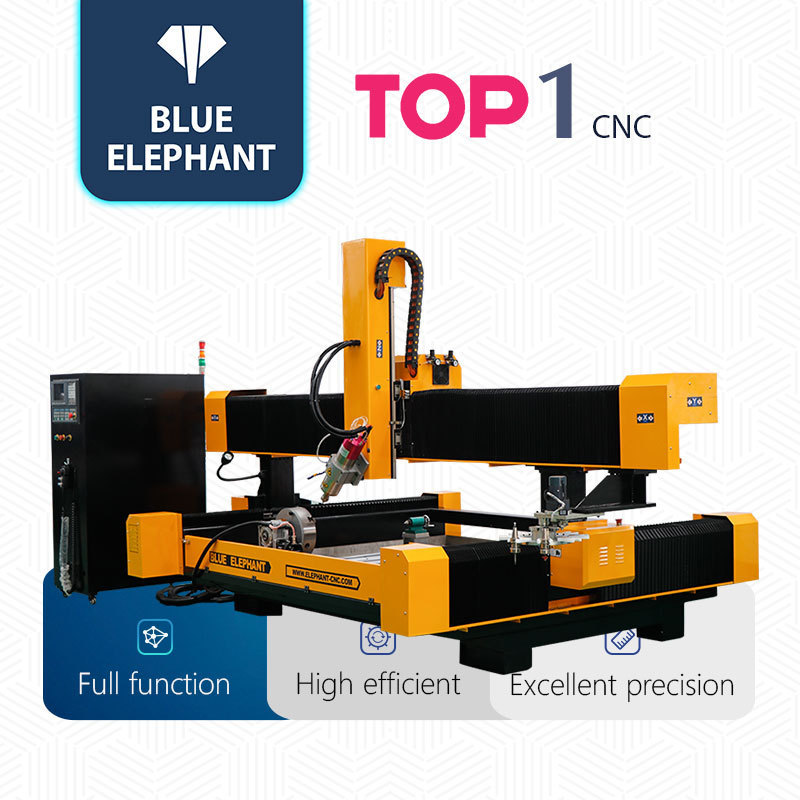

Marble And Granit Cutting Machine Granite Engraving Work Table Cnc Router Stone 3D Machinery Machines Carve Stones
Related Products
Product Description
1. Designed with carousel automatic tool changer, and the working efficiency can be greatly promoted.
2. Designed with rotary device, and the diameter, length and position of rotary device can be customized according to your requirements.
3. Adopting Changsheng ATC water cooling spindle, and the speed can be reached to 18000rpm for per minutes.
4. Please notice that all the specifications and working size can be designed with your requirements.
Product Details
DSP A11 Control
This machine adopts a DSP A 11 control system, which is more convenient and easy to operate.
Electronic Components
Using the standard components with CE certification, such as Germany Schneider company.
FL118 Stepper Motor
Compared with ordinary motors, this type of motor has the features of simple structure, convenient control.
Fuling Inverter
This inverter has stable performance, rich combination of functions.
Guide Rail
Taiwan guide raill which ensure high weigh capacity, high precision, and stable performance.
Water Cooling Spindle
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Technical Parameters
|
Model
|
ELECNC2113ATC-4A
|
|
X,Y axis travel
|
2100*1300mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc.
|
|
Z axis travel
|
600mm, option: 500mm, 600mm, 700mm, etc.
|
|
Spindle type
|
5.5kw ATC water cooling spindle, NBT30, ER32
|
|
Inverter type
|
5.5kw
|
|
The 4th axis
|
Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90
degree |
|
Tool magazine
|
Carousel type auto tool changer
|
|
Tool holder with collet
|
NBT30,ER32 collet: φ4, φ6, 1/8, 1/2
|
|
Control system
|
Taiwan SYNTEC /LNC controller
|
|
Driving system
|
1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo
|
|
Reducer
|
Japan SHIMPO reducer
|
|
Machine structure
|
Heavy duty body with quenching treatment
|
|
Work table
|
Stainless work table
|
|
Linear guide
|
Taiwan Linear guide
|
|
Transmission
|
X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
|
|
Lubrication system
|
1.5L automatic lubrication system
|
|
Tool Calibration
|
Automatic tool sensor calibration
|
|
Cables
|
Germany Igus cables with CE, cUL certificate
|
|
Cooling system
|
Water cooling
|
|
Compatible software
|
Powermill, UG, Alphacam, Fusion 360, etc.
|
|
Command language
|
G Code & M Code
|
|
Traveling speed
|
40m/min
|
|
Working speed
|
0-20m/min
|
|
Re-positioning accuracy
|
±0.03mm
|
|
System resolution
|
±0.0025mm
|
|
Working accuracy
|
±0.03mm
|
|
Working air pressure
|
0.6MPa
|
|
Working voltage
|
220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
|
