Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Higoal
-
Model Number:
-
h3
-
Colour:
-
white,custom color
-
Advantages:
-
Anti-aging
-
Feature:
-
Corrossion Resistance
-
Length:
-
Customized Length
-
Certificate:
-
ISO, ROHS, SGS
-
Color:
-
Customer Demands
-
MOQ:
-
500square meters
-
Surface treatment:
-
Gelcoat
-
Technique:
-
lamination
Quick Details
-
OE NO.:
-
OEMH1
-
Size:
-
customized
-
Material:
-
FRP, Fibreglass Reinforced Plastic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Higoal
-
Model Number:
-
h3
-
Colour:
-
white,custom color
-
Advantages:
-
Anti-aging
-
Feature:
-
Corrossion Resistance
-
Length:
-
Customized Length
-
Certificate:
-
ISO, ROHS, SGS
-
Color:
-
Customer Demands
-
MOQ:
-
500square meters
-
Surface treatment:
-
Gelcoat
-
Technique:
-
lamination

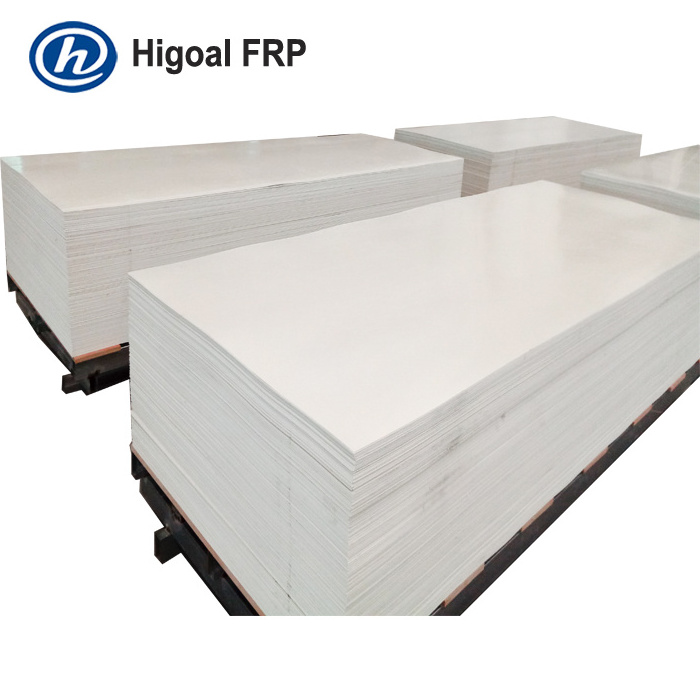

Higoal FRP Fiberglass Panel features:
1) Machine continuously made flat panels,
no limit on length
;
2)
Anti-impact
: much better stiffness and strength than plastic, due to fiberglass reinforced;
3)
Fire resistant
: made by thermosetting resin;
4)
Mildew resistant:
Effectively inhibit the growth of mildew;
5)
Easy install
: No other tools are needed except for rivet or glue only;
6)
Anti-corrosive
: stay good condition immerged into 10% Hydrochloric acid or 3% NAOH solvent for long time;
7)
Easy cleaning
: It can be easy cleaned by steam or high-pressured squirt gun;
8) Extreme
temperature resistant
: Withstand temperature at -40 -110 degree C for long time;
9) Rolled up by machine with 50-100m length as a coil, to
save shipping cost
.
|
Items
|
Performance
|
|
|
||
|
Material
|
Gel coating: 300um ISO-phthalic polyester gel coat
Matrix resin: unsaturated polyester resin Reinforce fiber: E-glass |
|
|
||
|
FRP panel size
|
Thickness: 1.0mm-3.0mm
Width: ≤2750mm ; Length: customer length |
|
|
||
|
Tensile strength
|
≥75MPa
|
|
|
||
|
Tensile modulus
|
≥4800MPa
|
|
|
||
|
Bending strength
|
≥120MPa
|
|
|
||
|
Bending modulus
|
≥5GPa
|
|
|
||
|
Impact strength
|
≥35KJ/m2
|
|
|
||
|
Compression strength
|
≥35MPa
|
|
|
||
|
Distortion temperature(1.8MPa)
|
>230℃
|
|
|
||
|
Thermal expansivity
|
2.4×10-5℃-1
|
|
|
||
|
Gravity
|
1.6-1.7g/cm3
|
|
|
||
|
Water Absorption
|
0.16%/24hrs, 25C
|
|
|
||
|
Stickiness
|
≥42dyne
|
|
|
||
|
Approval test standards:
|
ASTM-E84, RoHS 2002/95/EC
|
|
|
||
|
Chemical resistance
|
Can be used in foggy environment of 10% HCl and 3% NaOH solvent for long. For usage in other solvent, please contact our engineer.
|
|
|
||
The above mentioned panels can be combined with the froth, gypsum, polywood, aluminium, PP, XPS, honeycomb ,the lsandwich panels is a more strengthen, better rigidity panel, sandwich panels will be easier to install, the installation efficiency will be improved greatly, furthermore, the requirement of wall coarseness will be reduced also.
|
Items
|
Performance
|
|
|
||
|
Material
|
Gel coating: 300um ISO-phthalic polyester gel coat
Matrix resin: unsaturated polyester resin Reinforce fiber: E-glass |
|
|
||
|
FRP panel size
|
Thickness: 1.0mm-3.0mm
Width: ≤2750mm ; Length: customer length |
|
|
||
|
Tensile strength
|
≥75MPa
|
|
|
||
|
Tensile modulus
|
≥4800MPa
|
|
|
||
|
Bending strength
|
≥120MPa
|
|
|
||
|
Bending modulus
|
≥5GPa
|
|
|
||
|
Impact strength
|
≥35KJ/m2
|
|
|
||
|
Compression strength
|
≥35MPa
|
|
|
||
|
Distortion temperature(1.8MPa)
|
>230℃
|
|
|
||
|
Thermal expansivity
|
2.4×10-5℃-1
|
|
|
||
|
Gravity
|
1.6-1.7g/cm3
|
|
|
||
|
Water Absorption
|
0.16%/24hrs, 25C
|
|
|
||
|
Stickiness
|
≥42dyne
|
|
|
||
|
Approval test standards:
|
ASTM-E84, RoHS 2002/95/EC
|
|
|
||
|
Chemical resistance
|
Can be used in foggy environment of 10% HCl and 3% NaOH solvent for long. For usage in other solvent, please contact our engineer.
|
|
|
||
|
fiberglass panel for truck car box body
|
|
|
|
|||
|
Packing
|
1. Protected by stretch film;
|
|
|
|||
|
|
2. Fasten by packing banding and packed on pallet;
|
|
|
|||
|
|
3. Grating corners are protected by FRP angle or thick papercard.
|
|
|
|||
|
Delivery
|
1. Stock grating: 3-5 working days.
|
|
|
|||
|
|
2. Manufacturing: 1-2 weeks, or depends on the order quantity.
|
|
|
|||
