Quick Details
-

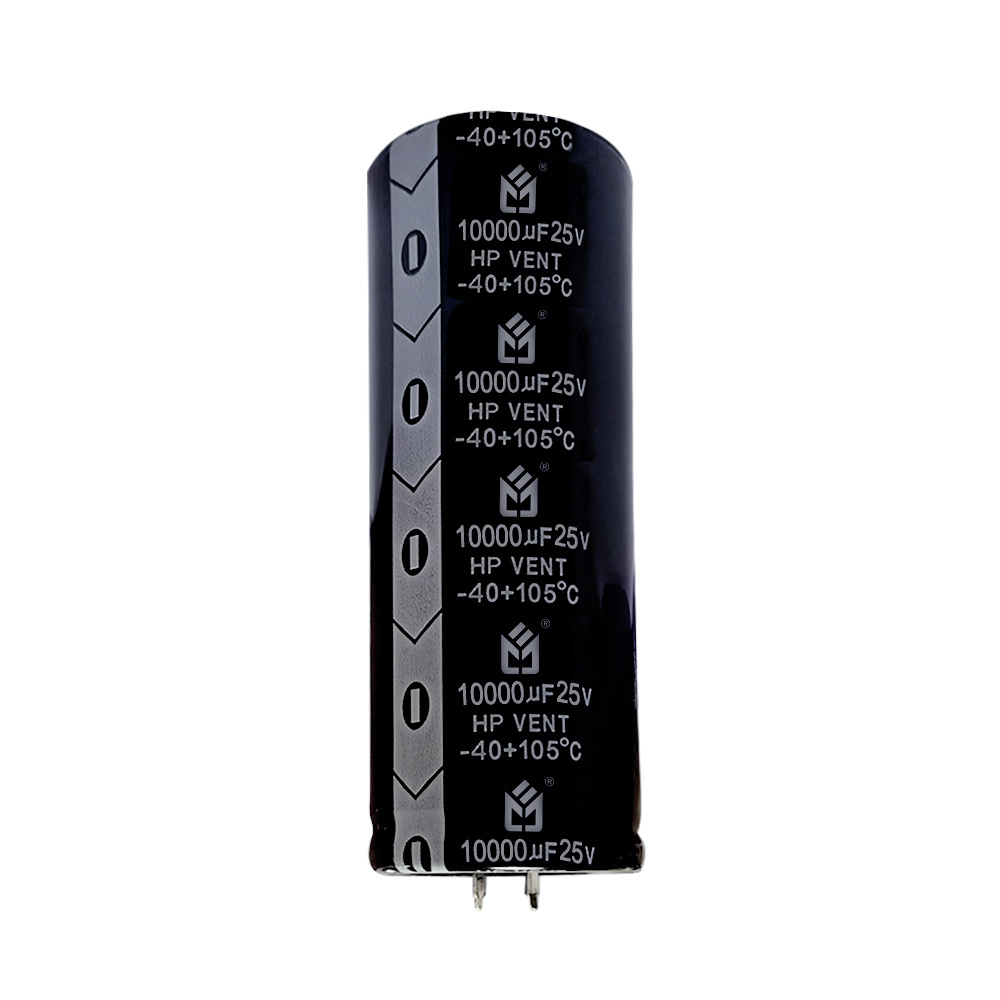

Product name:
-
Electrolytic capacitor
-
Size:
-
22*40mm
-
Capacitance:
-
10000uF, 10000uF
-
Voltage:
-
25V
-
Life:
-
2000h
-
D/C:
-
10000uF/25V
-
Tolerance:
-
N/A
-
Rated Voltage:
-
25V
-
Operating Temperature:
-
105℃
-
Description:
-
10000uF/25V
-
Specifications:
-
10000uF/25V
-
Voltage - Rated:
-
25V
-
Applications:
-
electronic product
-
Application:
-
electronic product
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JEC
-
Model Number:
-
10000uF/25V
-
Product name:
-
Electrolytic capacitor
-
Size:
-
22*40mm
-
Capacitance:
-
10000uF, 10000uF
-
Voltage:
-
25V
-
Life:
-
2000h
-
D/C:
-
10000uF/25V
-
Tolerance:
-
N/A
-
Rated Voltage:
-
25V
-
Operating Temperature:
-
105℃
-
Description:
-
10000uF/25V
-
Specifications:
-
10000uF/25V
-
Voltage - Rated:
-
25V
-
Applications:
-
electronic product
-
Application:
-
electronic product
| Item | Performance Characteristics | ||||||||||||||||||||||||||||||||
|
Operating
Temperature Range |
-40~+105C | -25~+105C | |||||||||||||||||||||||||||||||
| Rate Voltage Range | 10~100VDC | 160~450VDC | |||||||||||||||||||||||||||||||
| Capacitance Range | 330~68000μF | 33~22000μF | |||||||||||||||||||||||||||||||
|
Capacitance
Tolerance |
±20% ( 120Hz ,+20C) | ||||||||||||||||||||||||||||||||
|
Leakage current
(+20C,max. ) |
1 ≤0.02CVAfter 5 minutes with rated working voltage applied. | ||||||||||||||||||||||||||||||||
|
Dissipation factor
(tgδ) |
Less than the value under table (%) | ||||||||||||||||||||||||||||||||
| Uf\VDC | 10-16 | 25-35 | 50-63 | 80-100 | 160-250 | 315-450 | |||||||||||||||||||||||||||
| 47~390 | - | - | - | 15 | 15 | 20 | |||||||||||||||||||||||||||
| 470~3900 | 25 | 20 | 20 | 20 | 15 | 20 | |||||||||||||||||||||||||||
| 4700~8200 | 35 | 30 | 30 | 25 | - | - | |||||||||||||||||||||||||||
| 10000~22000 | 40 | 35 | 30 | - | - | - | |||||||||||||||||||||||||||
| 27000~47000 | 45 | 40 | 35 | - | - | - | |||||||||||||||||||||||||||
| 56000~68000 | 50 | 45 | - | - | - | - | |||||||||||||||||||||||||||
|
Low Temperature
Characteristics (120Hz) |
Impedance ratio max. | ||||||||||||||||||||||||||||||||
| Rated voltage (V) | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200-250 | 400-450 | |||||||||||||||||||||||
| Z-25C/ Z+20C | 5 | 5 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |||||||||||||||||||||||
| Z-40C/ Z+20C | 15 | 15 | 15 | 12 | 12 | 12 | 12 | - | - | - | |||||||||||||||||||||||
| Load Life |
Test conditions
Duration time Ambient temperature Applied voltage |
: 2000Hrs
: +105C : Rated DC |
working voltage | ||||||||||||||||||||||||||||||
| After test requirement at +20C | |||||||||||||||||||||||||||||||||
|
Capacitance change
Dissipation factor Leakage current |
: ≤±20% of the initial measured value
: ≤200% of the initial specified value : ≤The initial specified value |
||||||||||||||||||||||||||||||||
| Shelf Life |
Test conditions
Duration time : 1000Hrs Ambient temperature : +105C Applied voltage : None After test requirement at +20C : The same limits as Load life Pre-treatment for measurements shall be conducted after application of DC working voltage for 30 minutes |
||||||||||||||||||||||||||||||||
Q: How about your after-sale service?
1. 365 day warranty
2. 20 days refund without reason
3. If the customer has any questions, we will provide technicalsupport timely.
Q: What are the advantages of your products?
1. We have all models of material, save you time looking fort And recommend materials for you if you need.
2. With the same quality products, we can give you best priceInquiries to after-sale, we will provide good service, such asupdate product status, technical support etc (24 hour online)
3. We have many stocks, and the delivery time usually is short.
Q: What is your MOQ?
A: No MOQ. we accept small orders. Because we believe thatsmall orders may become big orders in the future.
Q: If I place an order, how long will it take to deliver?
A: It usually takes about only 7-14 days after receiving thepayment, depends on the quantity ordered and the stock status.
